Audi Q7 2007 Workshop Manual

Audi Q7 2007 !
6-cylinder TDI engine (3.0 ltr. 4-valve common rail), mechanics 01.2006
Repair Group 13 – Crankshaft group
6
90

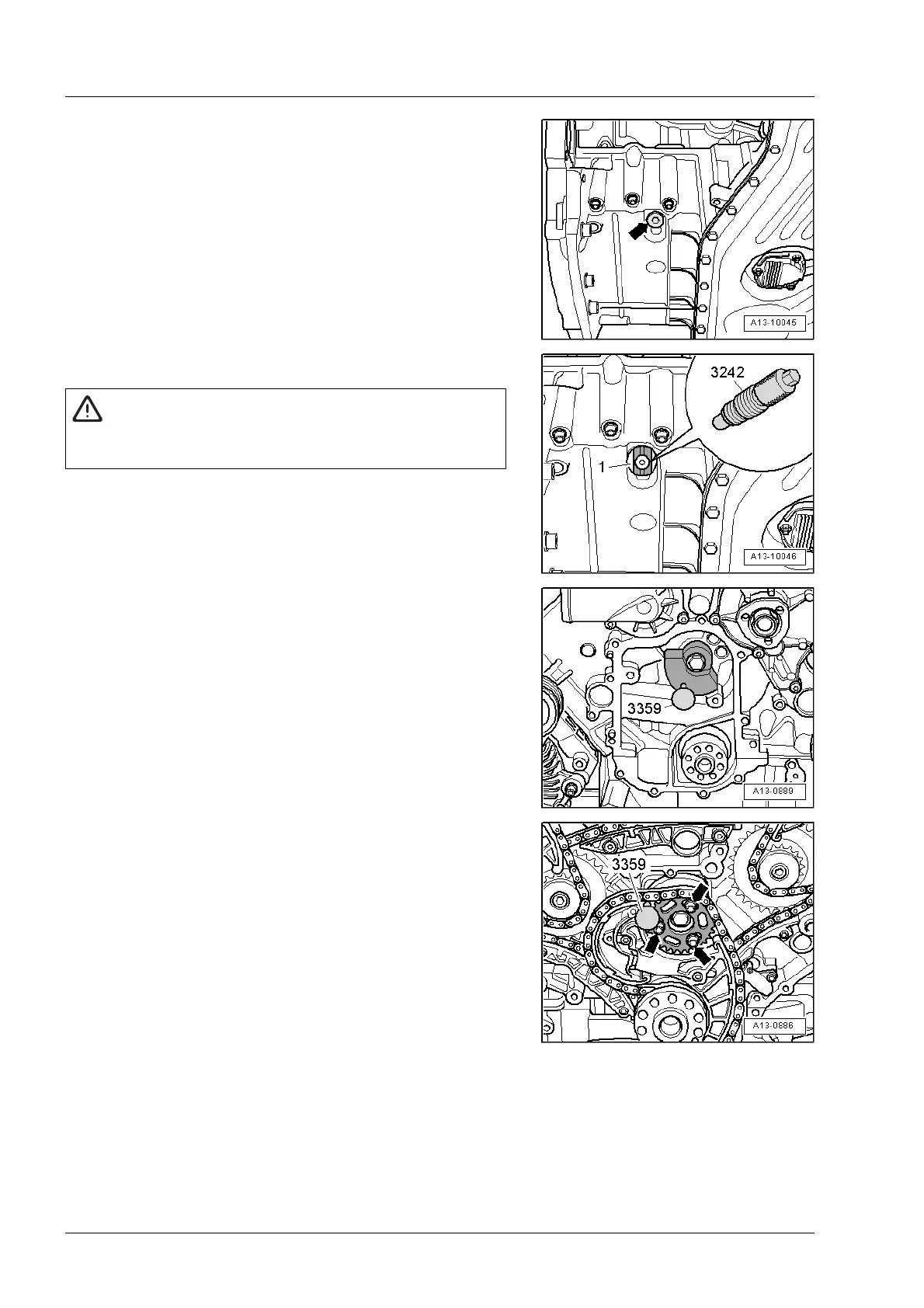

– Unscrew plug -arrow- from sump (top section).
– Screw locking pin -3242- into bore (20 Nm); if necessary,
turn crankshaft -1- backwards and forwards slightly to ful-
ly centralise locking pin.
– Lock balance shaft at front of engine with diesel injection
pump locking pin -3359-
– Unscrew bolt and detach balance weight from balance
shaft.
– Lock balance shaft at rear of engine with diesel injection
pump locking pin -3359-
– Unscrew bolts -arrows- and detach chain sprocket from
balance weight.
WARNING!
To avoid any risk of injury, do not rotate the crankshaft
while feeling for the “TDC” hole with your finger.
