Installation
AVENTICS | Marex 3D | R417003094–BDL–001–AA 43
English

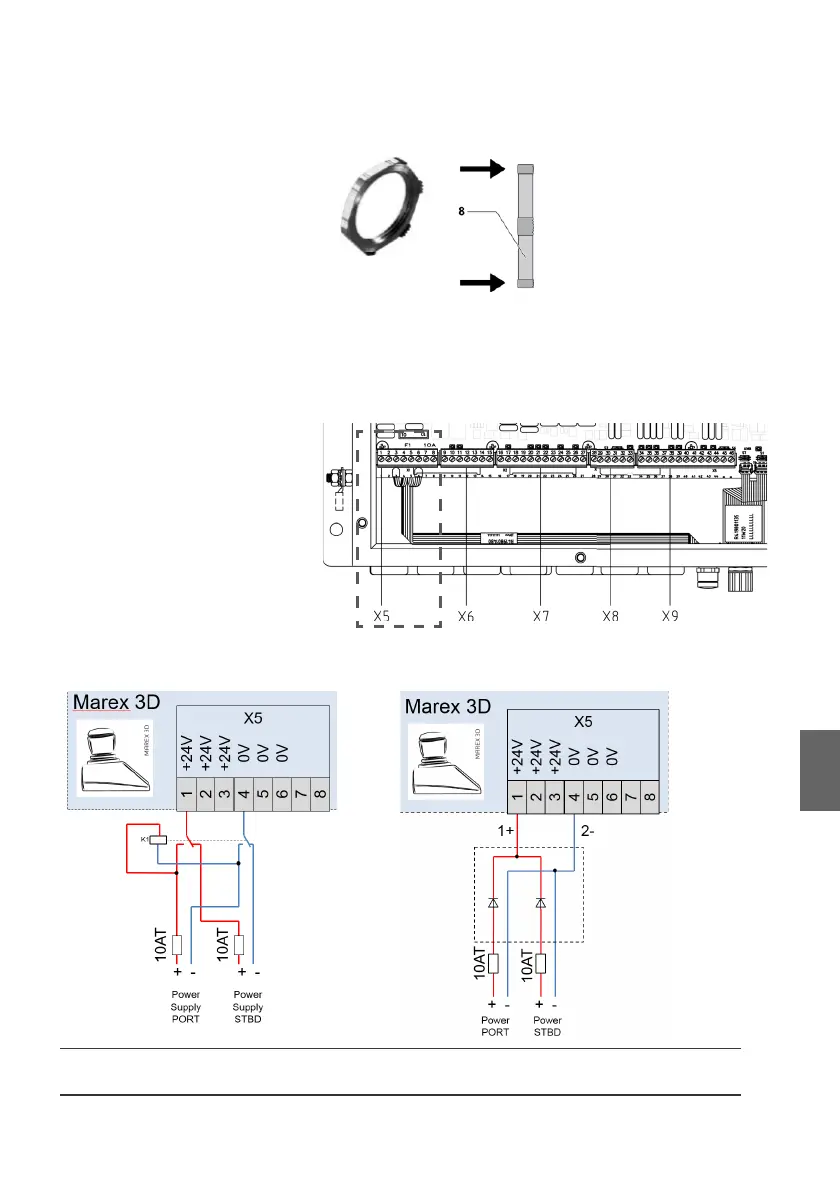

Fig. 15: Hexagone nut (8)
5.3.1.3 Connecting the power supply
After applying the cable glands, connect the cables for the
power supply to terminal X5 of the 3D Controller (see fig. 16).
Fig. 16: Terminal block X5 for the power supply
Power supply including a changeover relay Power supply using the dual battery cables
R419801568 (5 m) or R419801522 (10 m)
