DECS-200 BESTCOMS Software 5-5
System Data
System Data tab functions are shown in Figure 5-8 and described in the following paragraphs.

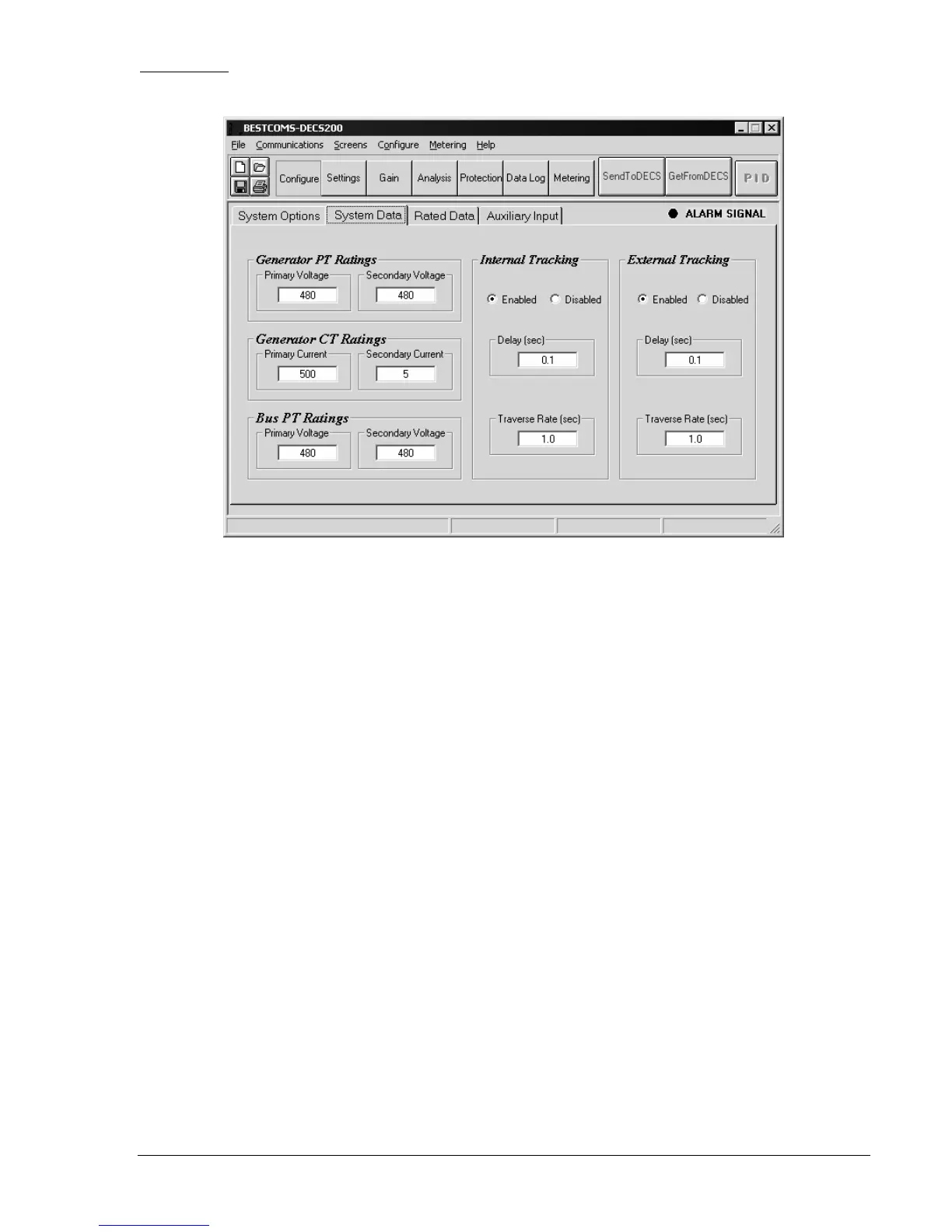

Figure 5-8. System Configuration Screen, System Data Tab
Generator PT Ratings, Primary Voltage.
Sets the rated primary voltage of the generator potential
transformer (PT). Generator and bus PT ratings must be specified in the same sensing range. A setting of
1 to 30,000 Vac may be entered in 1 Vac increments.
Generator PT Ratings, Secondary Voltage.
Sets the rated secondary voltage of the generator potential
transformer. Generator and bus PT ratings must be specified in the same sensing range. A setting of 1 to
600 Vac may be entered in 1 Vac increments.
Generator CT Ratings, Primary Current.
Sets the rated primary current of the generator current
transformer (CT). A setting of 1 to 60,000 Aac may be entered in 1 Aac increments.
Generator CT Ratings, Secondary Current.
Sets the rated secondary current of the generator current
transformer (CT). A setting of 1 Aac or 5 Aac may be entered.
Bus PT Ratings, Primary Voltage.
Sets the rated primary voltage of the bus potential transformer (PT).
Generator and bus PT ratings must be specified in the same sensing range. A setting of 1 to 500,000 Vac
may be entered in 1 Vac increments.
Bus PT Ratings, Secondary Voltage.
Sets the rated secondary voltage of the bus potential transformer
(PT). Generator and bus PT ratings must be specified in the same sensing range. A setting of 1 to 600
Vac may be entered in 1 Vac increments.
Internal Tracking, Enabled/Disabled.
Enables or disables tracking of the active control mode setpoint by
the inactive control modes.
Internal Tracking, Delay.
Determines the time delay between a control mode change and setpoint
tracking. A setting of 0 to 8 seconds may be entered in 0.1 second increments.
Internal Tracking, Traverse Rate.
Determines the amount of time required for the inactive control mode to
traverse (cross) the full setting range of the active control mode setpoint. A setting of 1 to 80 seconds may
be entered in 0.1 second increments.
External Tracking, Enable/Disable.
Enables or disables tracking of a second DECS-200’s setpoint.
External Tracking, Delay.
Determines the time delay between a transfer to a second DECS-200 and start
of tracking of the second DECS-200 setpoint. A setting of 0 to 8 seconds may be entered in 0.1 second
increments.
