Accessories
Hillrom Progressa ICU Hospital Bed Instructions for Use (171528 REV 15) 103

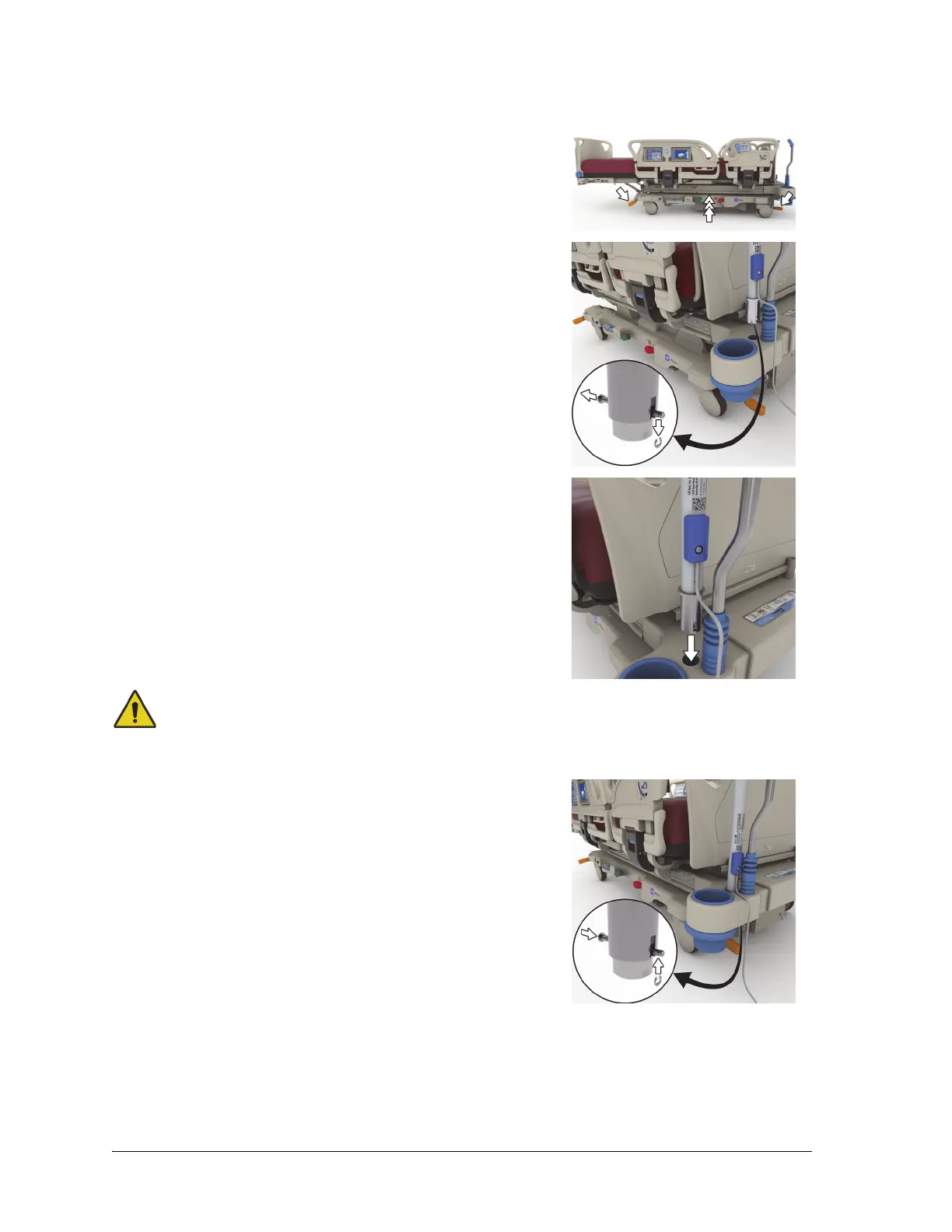

To Install
1. Make sure the bed’s brake is set, and a patient is not in the
bed.
2. Raise the bed to access underneath the head section.
Make sure the Experience Pod Device is in the transport position
before installing, see
Step 4 on page 104.
3. Remove the pin from the Experience Pod Device.
4. Install the Experience Pod Device into the accessory socket
at the head end of the bed. Make sure the arm assembly is
fully inserted into the socket.
Warning—Make sure that the arm is correctly attached in step 4. Otherwise, it may fall. Injury or
equipment damage could occur.
5. From underneath the head end of the bed frame, insert the
pin to hold the Experience Pod Device in position.
6. Install the retainer on to the pin.
7. Make sure the pin is through the retainer.
