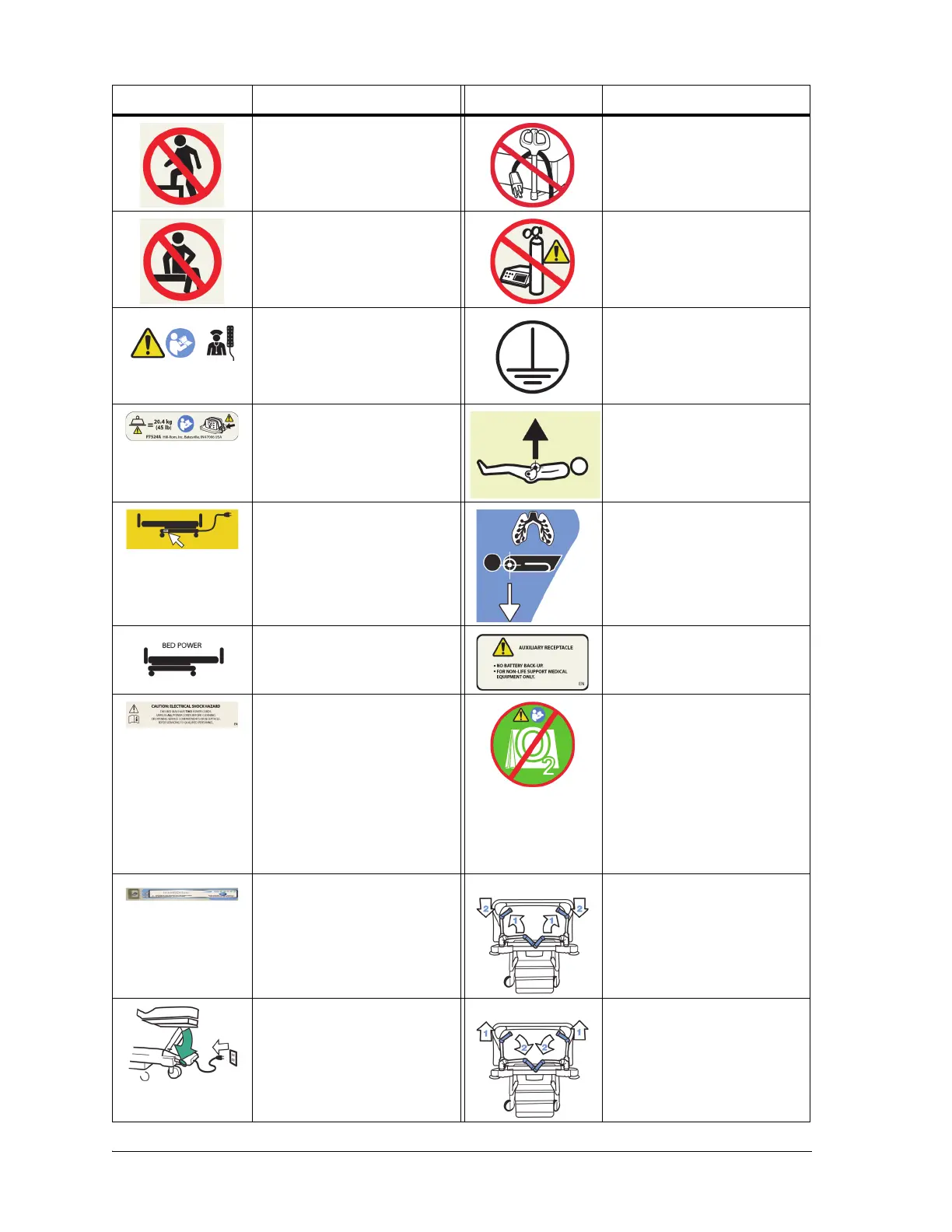

Symbols
Hillrom Progressa ICU Hospital Bed Instructions for Use (171528 REV 15) 5
Do not stand on the foot-
board (refer to “Footboard”
on page 58).
Do not store cords here.
Do not sit on the footboard
(refer to “Footboard” on
page 58).
Warning: Do not put equip-
ment on the base of the bed.
Equipment damage could
occur.
Warning: Caregiver pendant
only (refer to “Caregiver Pen-
dant Controls” on page 25).
Protective Earth
Warning: Transport shelf only
(refer to “Transport Shelf” on
page 97).
Hip Locator (refer to “Hip
Position Locator” on
page 12).
Identifies auxiliary outlet
power cord.
Shoulder Locator (refer to
“Rotation” on page 86 or
“Percussion and Vibration”
on page 88).
Identifies bed power cord. Warning: Identifies auxiliary
receptacle.
Electrical Shock Hazard—
unplug the bed before you
clean or service the bed.
Do Not Use with Oxygen
Tents—indicates the use of
oxygen administering
equipment of the nasal,
mask, or ventilator type only
or oxygen tents that can be
contained inside the side-
rails. Label can be green or
blue.
IntelliDrive Transport
System
Departure Transport Handle
Sequence—raise and lock
transport handles in posi-
tion (refer to “Transport” on
page 58).
Departure Transport
Sequence—unplug the bed
and release the brakes (refer
to “Transport” on page 58).
Arrival Transport Handle
Sequence—stow the han-
dles (refer to “Transport” on
page 58).
