78 pro+ Surface Instruction for Use (209196 REV 8)
900 Beds
The surface power cord has magnets installed on the cord. The power
cord is routed along the patient-right side of the bed to the head end of
the bed. Below is an overall view of the cord routing; the numbered
detail views correlate with Step 11 through Step 15 that follow.

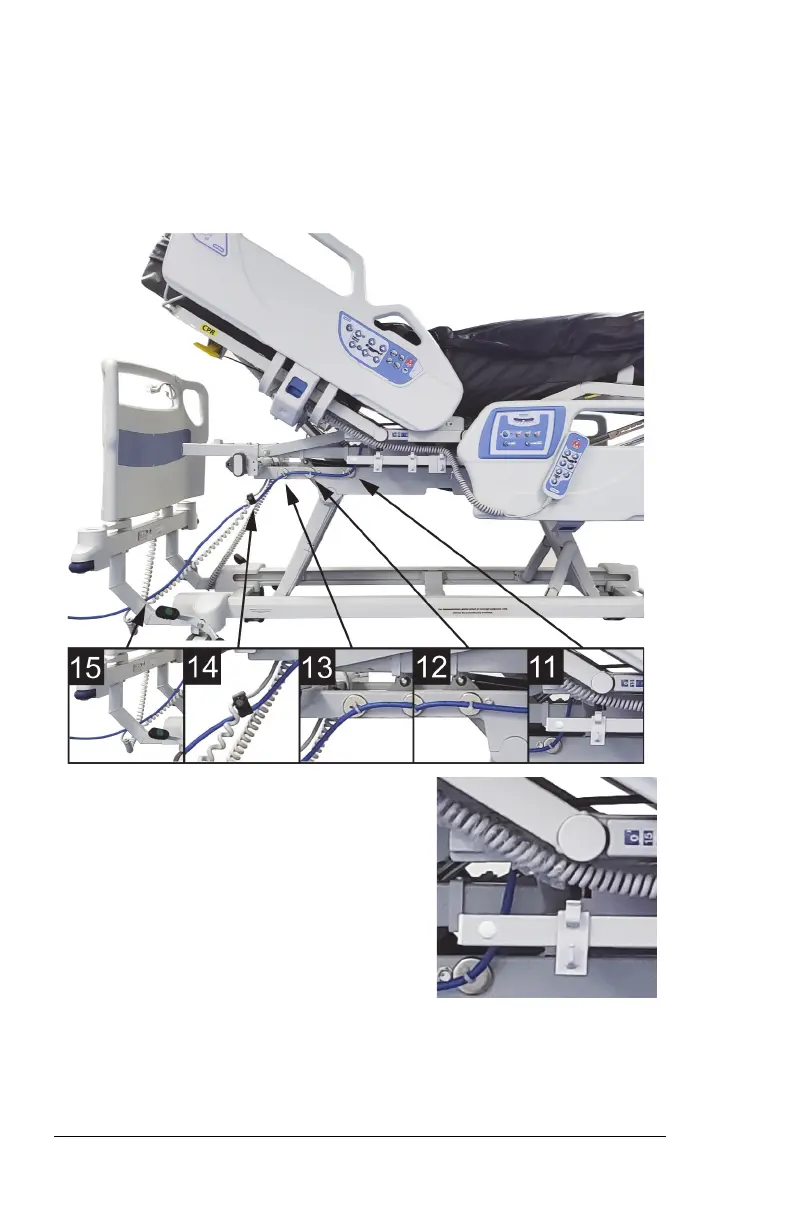

900 Bed (LI900B3)—Surface Power Cord Routing
11. Route the surface power cord
between the head and seat sections
on the right-side of the bed, inside
the head pivot.
Attach one cord magnet to the
upper frame on the right side of the
lift arm, next to the bolt.
To Next Page
