126 BD High Throughput Sampler User’s Guide

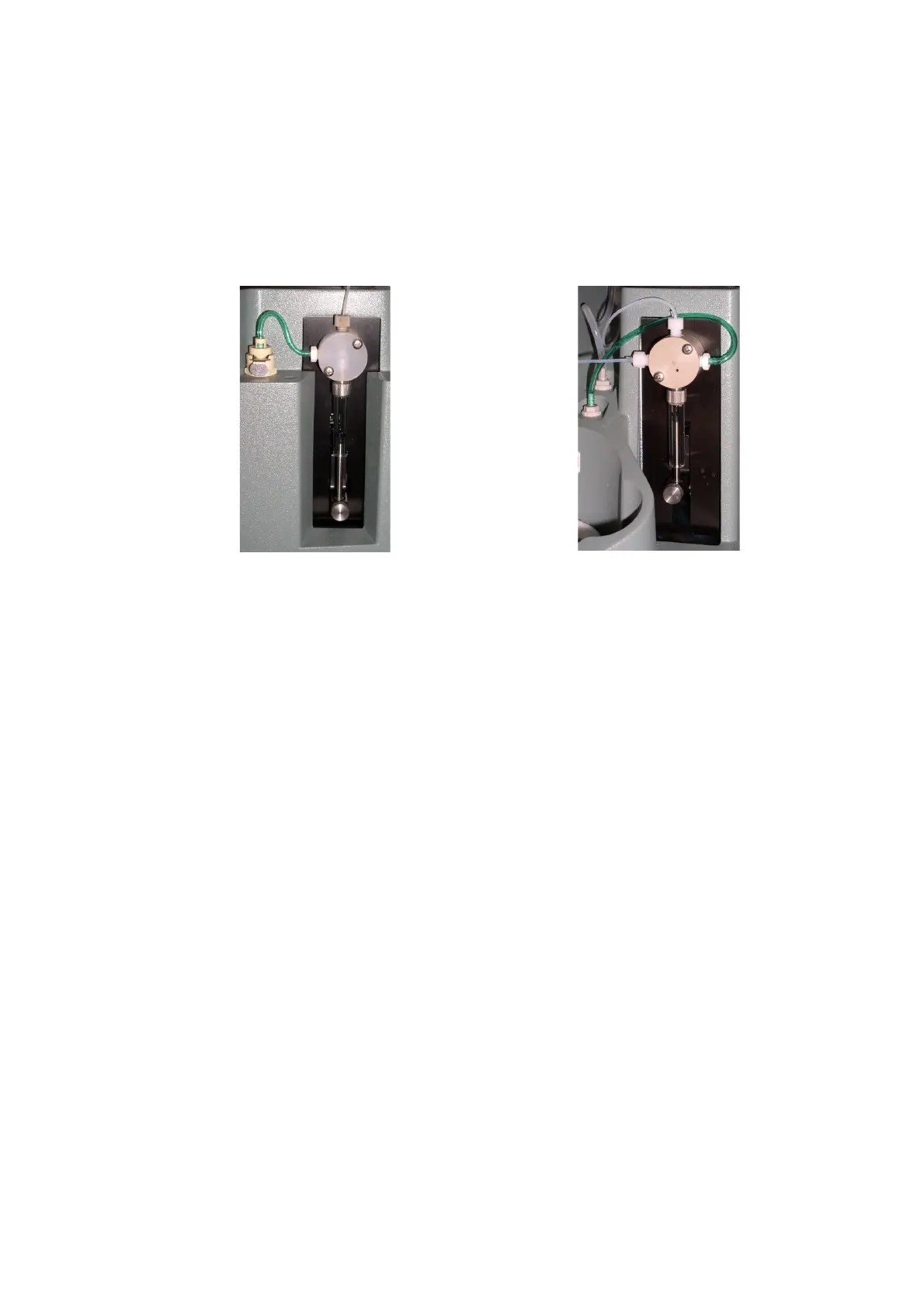

Figure 4-11 Primary and secondary pumps
6 Push the syringe plunger up to the top of the syringe barrel.
7 Loosen the plunger lock screw approximately three full turns
counterclockwise (Figure 4-12 on page 127).
8 Lower the plunger drive by pushing down on the plunger lock screw.
See Figure 4-12 on page 127.
primary syringe pump secondary syringe pump
