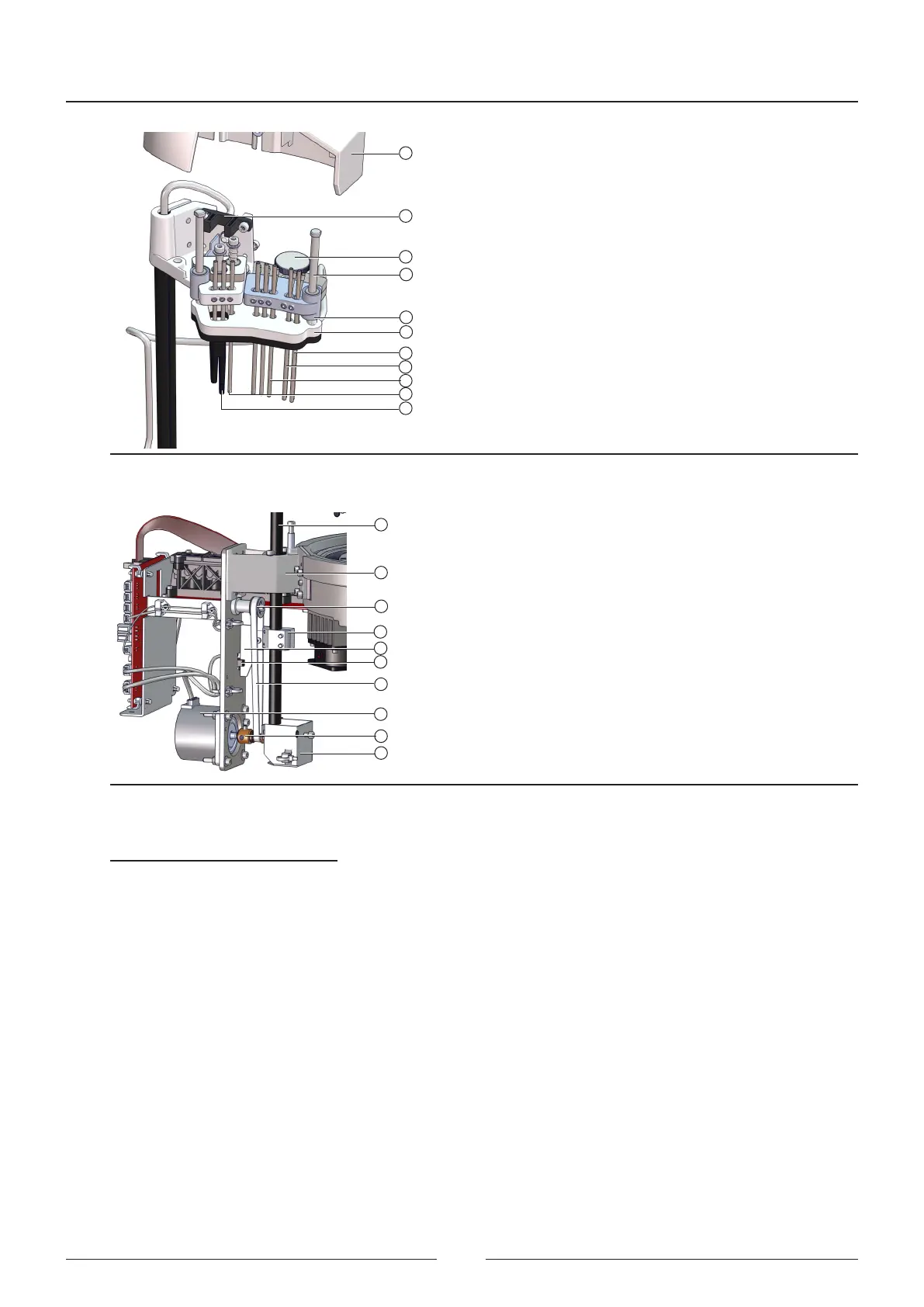

Figure 3.9 Wash station tip assembly
20
24
25
26
27
29
30
28
23
22
21
Figure 3.10 Wash station elevation system
31
35
36
37
38
40
39
34
33
32
References of gures 3.9 and 3.10:
20 – Wash station housing
21 – Tip collision sensor
22 – Set screw
23 – Pedal guide shaft
24 – Spring
25 – Pedal
26 – Waste aspiration
27 – Washing solution aspiration
28 – Rinsing with water
29 – Water aspiration
30 – Drying
31 – Wash station elevation shaft
32 – Wash station shaft anchoring support
33 – Counter pulley
34 – Part anchoring shaft with belt
35 – Start-up detection tab
36 – Start-up detection photosensor
37 – Belt
38 – Wash station motor
39 – Transmission pulley
40 – Transmission pulley protector
