biosystems BA 400 - Page 52

52

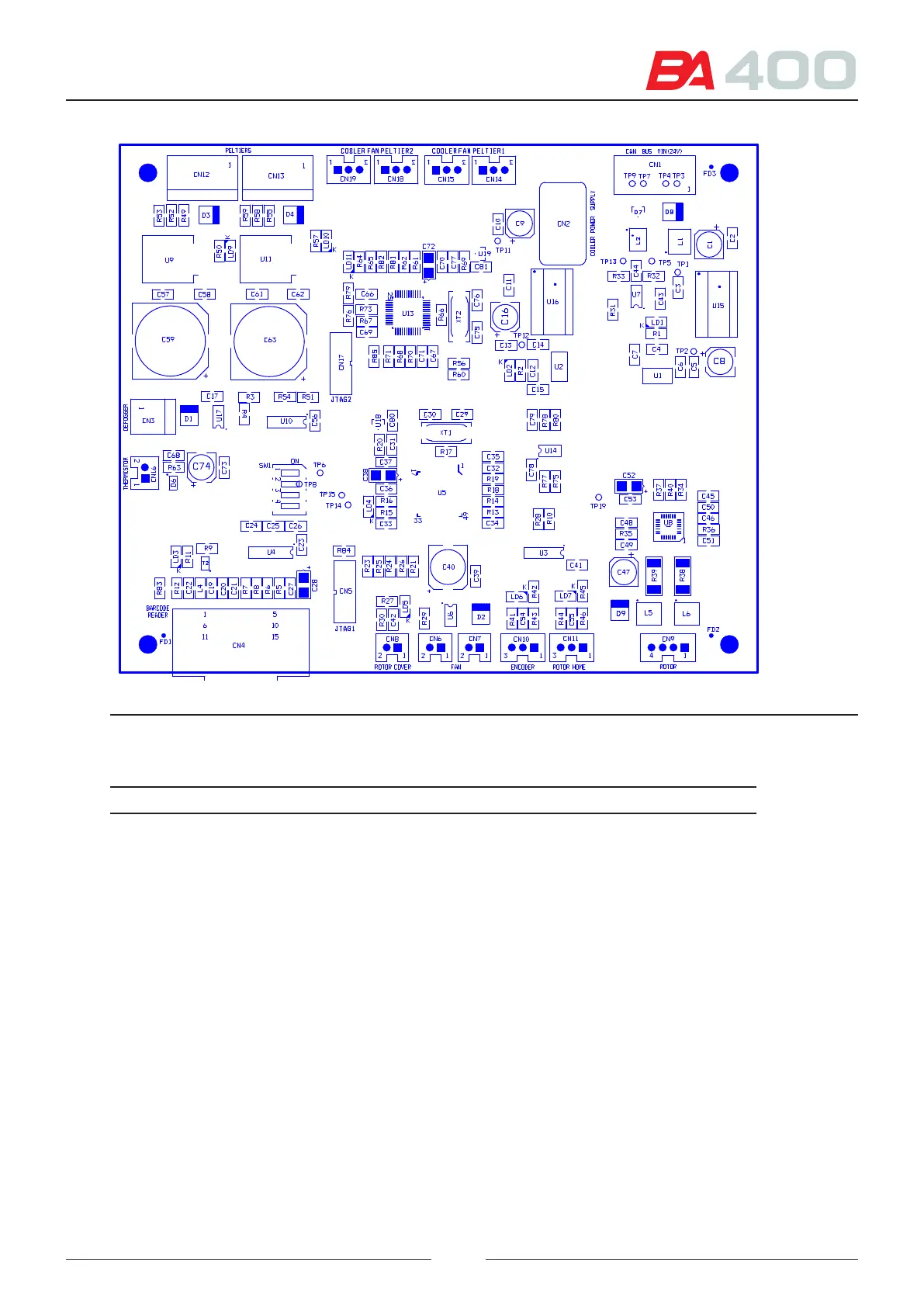

Figure 4.16 Rotor board silk printing
Connector Function Pin
CN1 CAN bus connection Pin 1: 24V
Pin 2: GND
Pin 3: NC
Pin 4: CAN_H
Pin 5: CAN_L
CN2 Separate fridge power supply Pin 1: 24 V Fridge
Pin 2: GND Fridge
CN3 Demister Pin 1: 24 V
Pin 2: Activation
CN4 Barcode reader Pin 1: Activation/deactivation
Pin 2: Reading channel 1
Pin 3: Transmission1
Pin 4: GND
Pin 6: Reading channel 2
Pin 9: Reading shot
Pin 10: Transmission2
CN6 General fan Pin 1: 24 V
Pin 2: GND
