biosystems BA 400 - Page 65

Service Manual
65
HEAT EXCHANGER
low cont waste
H2O
washing solution
high cont waste
SF1-B9
Liquid
suction
high cont
Dry
suction
Filling
liquid
WS
WASHING ROTOR
Liquid
suction
low cont
Dry
suction
Fake
Liquid
suction
low cont
Liquid
suction
low cont
Liquid
suction
low cont
Liquid
suction
low cont
Filling
liquid
WS
Filling
liquid
H2O
Filling
liquid
H2O
HYDRAULIC BLOCK
WASHING PUMP
WASHING ROTOR SYSTEM
Filling
liquid
H2O
SF1-B10
SF1-B6
SF1-B7 SF1-B8
SF1-GE1

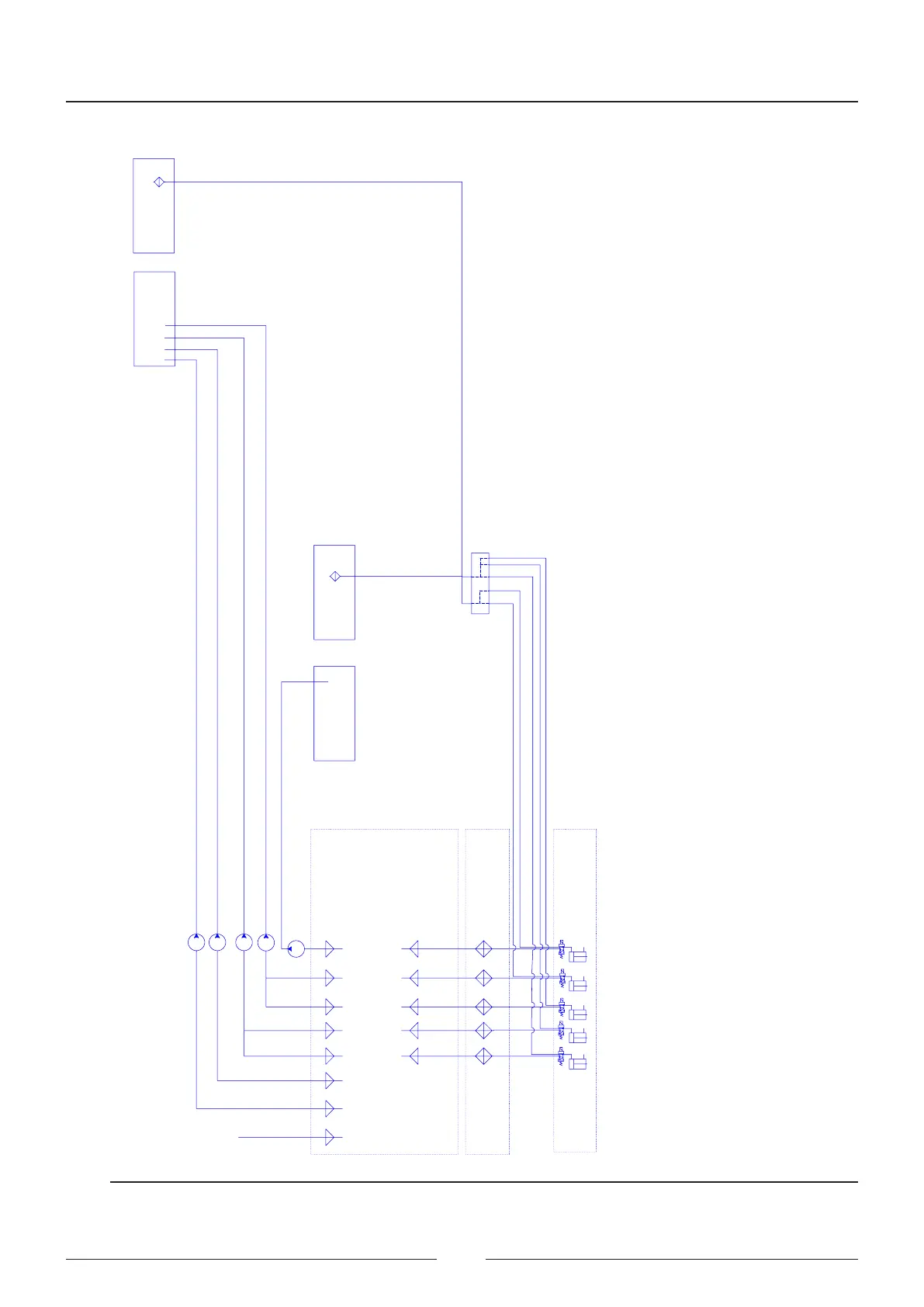

Figure 5.2 Enlarged view of the uidic diagram
Low conc waste
High conc waste
