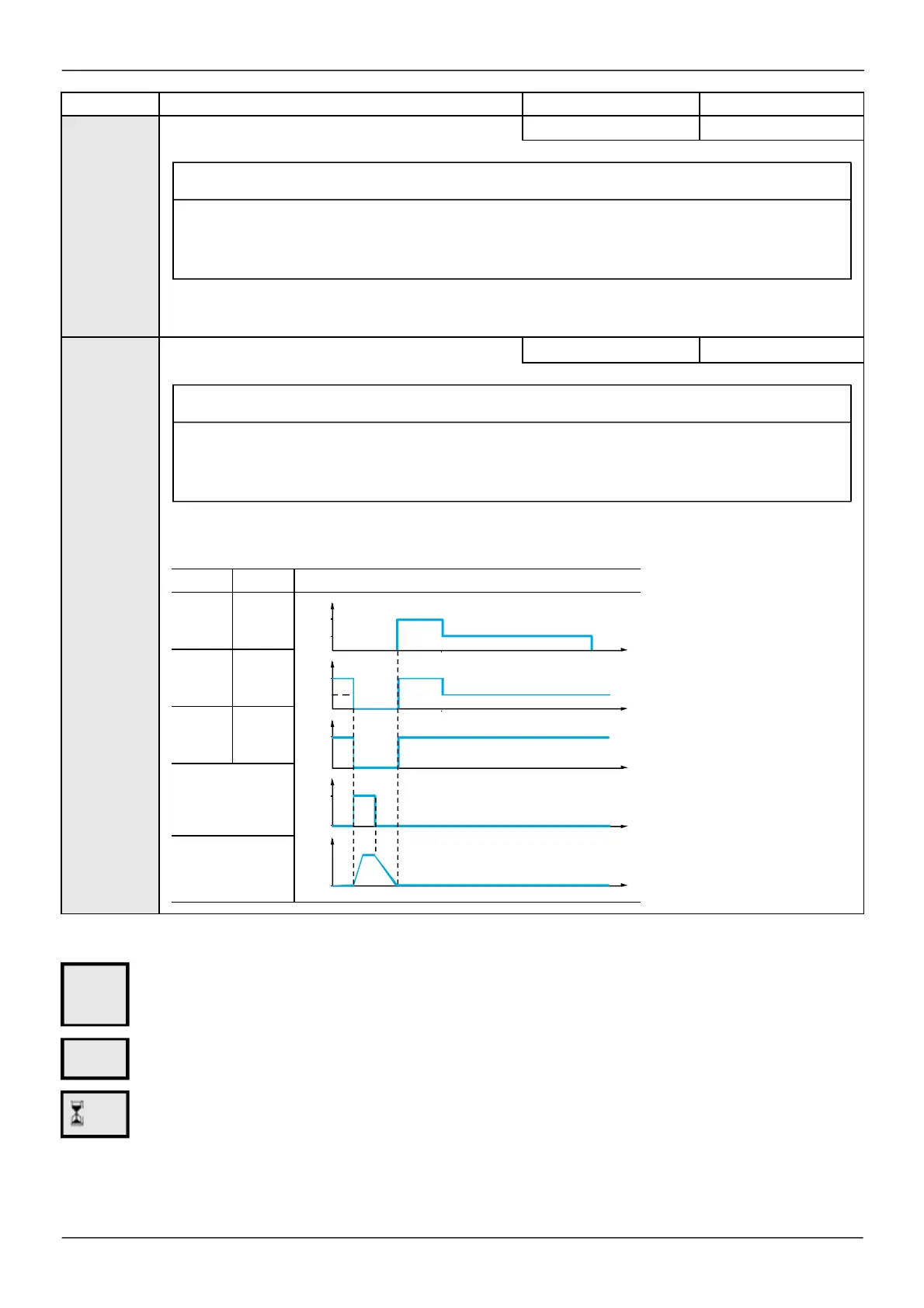

Configuration Mode (ConF)
Code Nam e / De s cription Adjustment range Factory s e tting
SdC2
[Auto DC inj. level 2]
0 to 1.2 In (2) 0.5 In (2)
*
NOTICE
OVERHEATING AND DAMAGE TO THE MOTOR
Verify that the connected m otor is properly rated for the DC injection current to be applied in term s of am ount
and tim e in order to avoid overheating and dam age to the m otor.
Failure to follow these instructions can result in equipment damage.
2nd level of standstill DC injection current.
This parameter can be accessed if
[Auto DC inje ction]
(AdC) is not
[No]
(nO).
(1)
tdC2
[Auto DC inj. time 2]
0 to 30 s 0 s
*
NOTICE
OVERHEATING AND DAMAGE TO THE MOTOR
Verify that the connected m otor is properly rated for the DC injection current to be applied in term s of am ount
and tim e in order to avoid overheating and dam age to the m otor.
Failure to follow these instructions can result in equipment damage.
2nd standstill injection time.
This parameter can be accessed if
[Auto DC inje ction]
(AdC) is set to
[Ye s ]
(YES).
(1)
(1)
The parameter can also be accessed in the
[SETTINGS]
(SEt-)
menu.
(2)
In corresponds to the rated drive current indicated in the Installation manual and on the drive nameplate.
These parameters only appear if the corresponding function has been selected in another menu. When the parameters can
also be accessed and adjusted from w ithin the configuration menu for the corresponding function, their description is detailed
in these menus, on the pages indicated, to aid programming.
Parameter that can be modified during operation or w hen stopped.
To change the assignment of this parameter, press the ENT key for 2 s.
2 s
*
AdC SdC2 Operation
YES
x
I
SdC1
SdC2
tdC1 tdC1 + tdC2
t
I
SdC1
SdC2
tdC1
t
I
SdC1
t
1
0
t
0
t
Ct
≠
0
Ct
= 0
Run command
Speed
