Configuration Mode (ConF)
LP2
EXTERNAL WEIGHT MEASUREMENT
Load measurement
This function us es the inform ation supplied by a weight sens or to adapt the current
[Brake
release
I FW
]
(
Ib
r
) of the
[BRAK
E LOGIC CONTROL]
(
bLC
-
) function. The signal from the
weight sens or can be as signed to an analog input (us ually a 4 - 20 m A signal) or to the puls e-in input,
according to the type of weight s ens or.
Example: Measurement of the total weight of a hoisting winch and its load
The current
[Brake
release
I FW
]
(
Ib
r

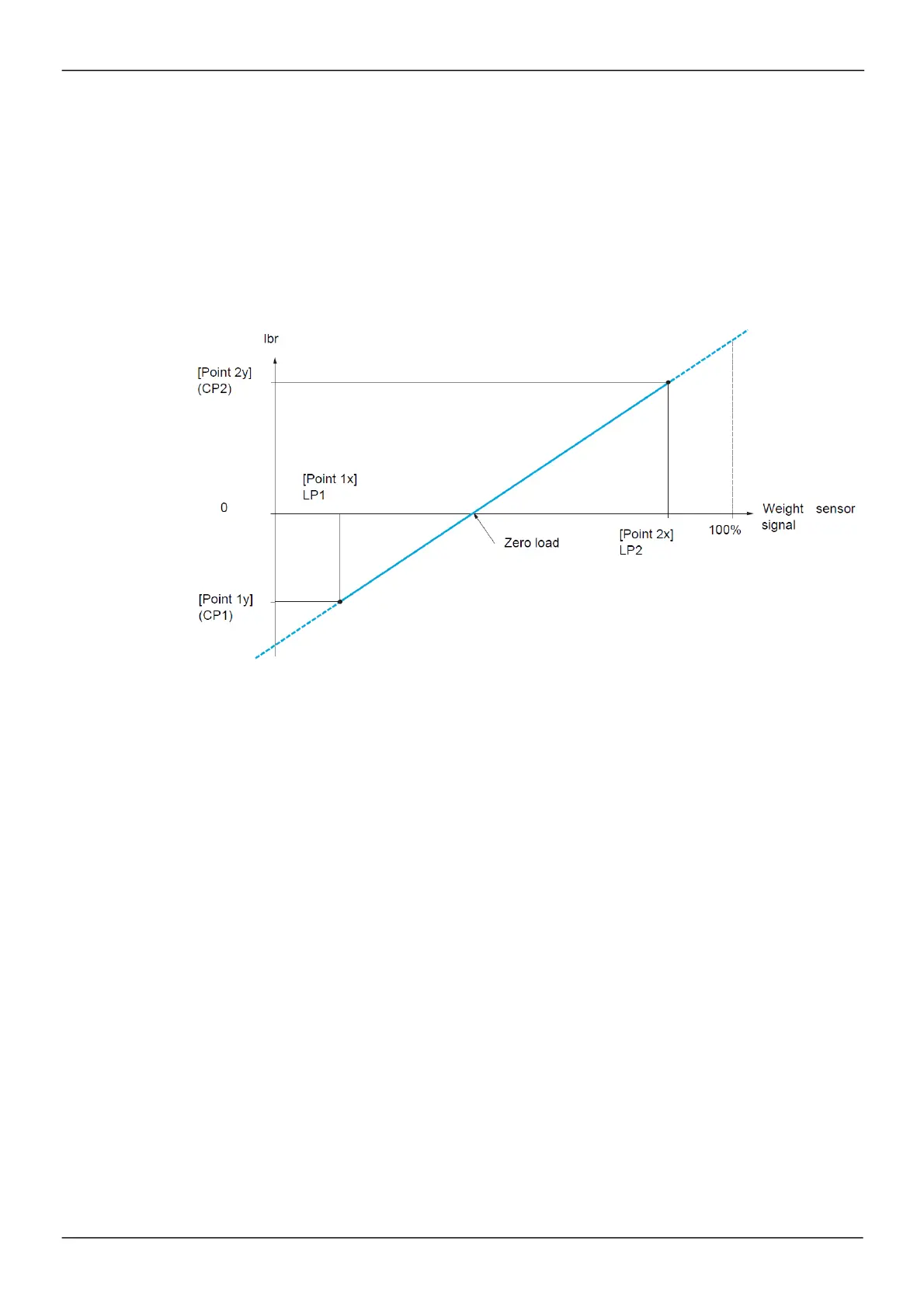

) is adapted in accordance with the curve below.
[Point 2y]
(CP2)
0
Weight sensor
signal
[Point 1y]
(CP1)
