Code Nam e / De s cription Unit
I2t
M
[I²t overload level]
%
Monitoring of I²t overload level
This
paramet er
can
be
accessed
if
[I²t
mode l
activat io n]
(
I
2tA
)
is
set
to
[Yes]
(
YES
)
see
page
219
Logic input functions.
LIA
[LI1 assignment]
Read-only parameters, cannot be configured.
It displays all the functions that are assigned to the logic input in order to check for multiple assignments.
If no functions have been assigned,
[No]
(nO) is displayed. Use the jog dial to scroll through the functions.
The use of graphic display terminal allow s to see the delay
[LI1 On De lay]
(L1d). Possible values are the same than in
configuration menu page 127.
L2A
to
LA
LA1A
LA2
A
[L-- assignment]
All the logic inputs available on the drive are processed as in the example for LI1 above.
LIS1
[State of logic inputs LI1 to LI6]

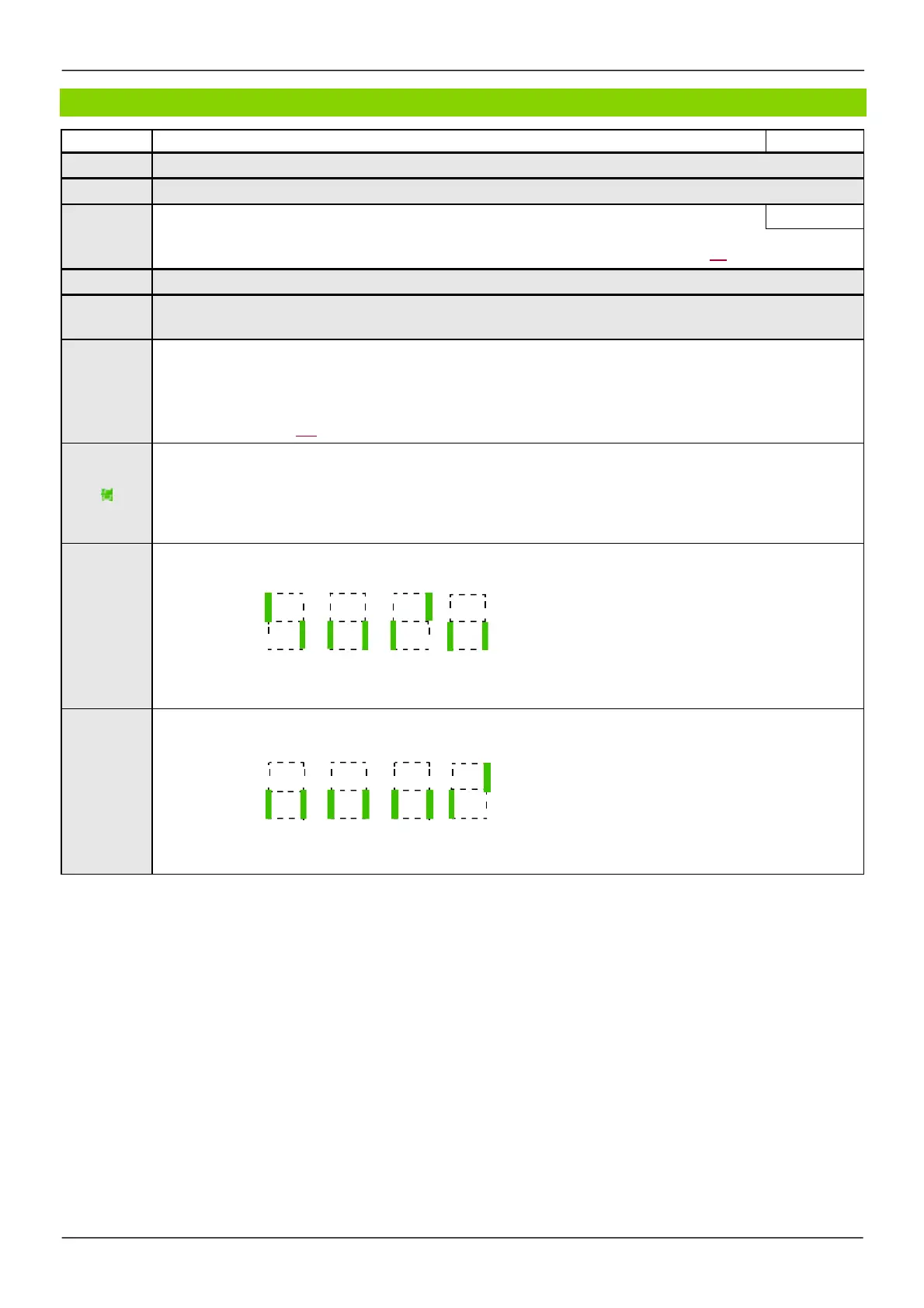

Can be used to visualize the state of logic inputs LI1 to LI6 (display segment assignment: high = 1, low = 0).
State 1
State 0
LI1 LI2 LI3 LI4 LI5 LI6
Example above: LI1 and LI6 are at 1; LI2 to LI5 are at 0.
LIS2
[State of Safe Torque Off]
Can be used to visualize the state of LA1, LA2 and STO (Safe Torque Off) (display segment assignment: high = 1, low = 0).
State 1
State 0
LA1 LA2 STO
Example above: LA1 and LA2 are at 0; STO (Safe Torque Off) is at 1.
Parameters described in this page can be accessed by:
DRI- > MON- > IOM- > LIA-
