— Disassemble the clamping unit as described in
Ä
Chapter 6.3.2
“Removing/repairing the clamping unit” on page 131.
— Disassemble the Multi Disc as described in
Ä
Chapter 6.3.4
“Changing the Multi Disc plate” on page 146.
— Dismantle the drive pin and the drive sleeve and remove the
threaded rod as detailed in
Ä
Chapter 6.3.7 “Replacing the
brush auger” on page 157.

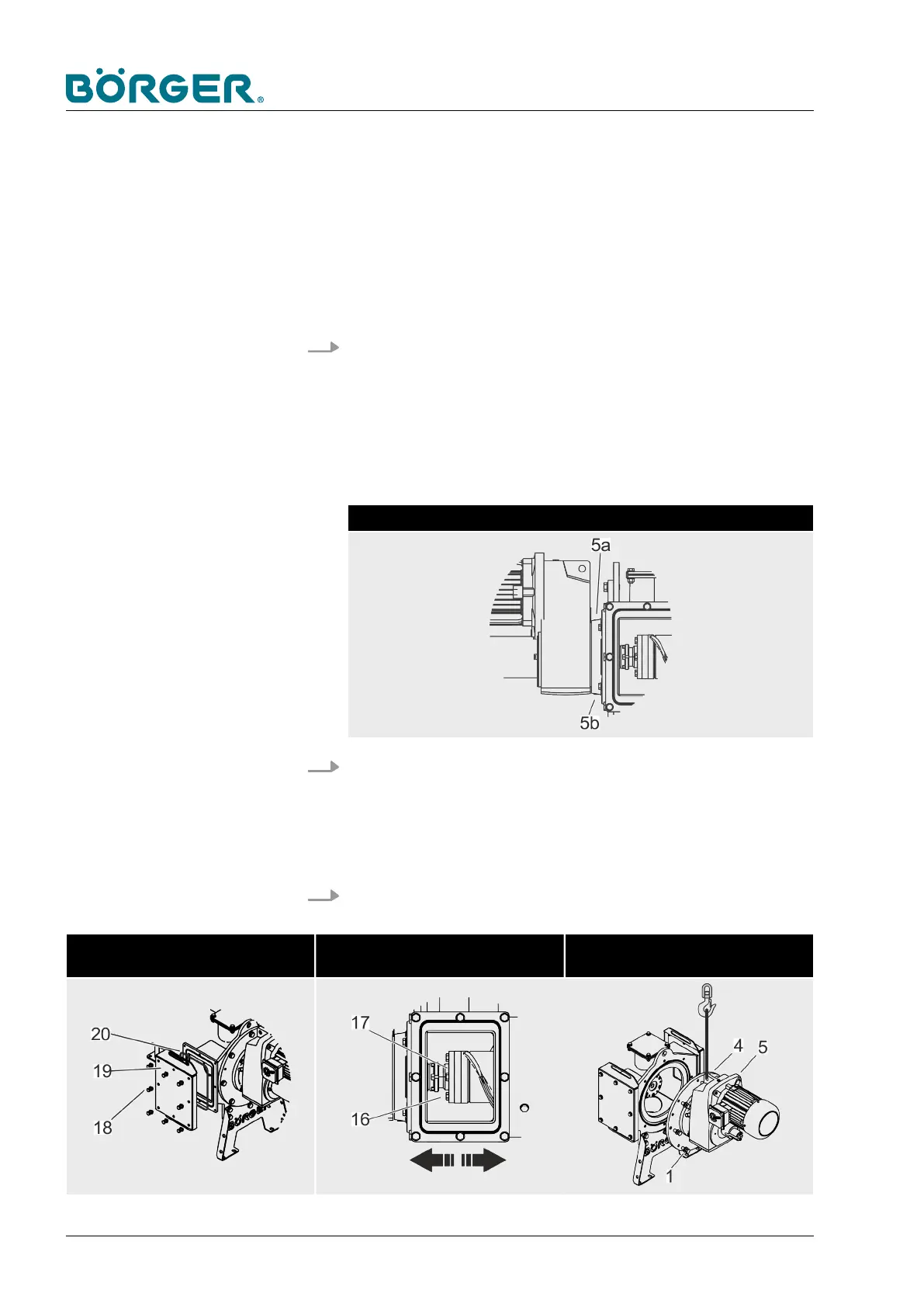

1. Drain the quench fluid from the intermediate chamber after
loosening the screw plug (5b) of the intermediate chamber
drain while adhering to the relevant safety precautions
relating to the substrate and the quench fluid. See
Ä
Chapter
6.2.2 “Lubricant fill level and changing the lubricants”
on page 123 and the lubricant list in respect of the quench
fluid.
Drain the quench fluid
2. Thoroughly clean the intermediate chamber after a leak in the
mechanical seal to remove all substrate deposits from the
intermediate chamber. To do so, flush a suitable liquid (water,
if appropriate) through the fill hole with the drain open after
the safety plug has been removed.
3.
Separate the drive flange as detailed in
Ä
Chapter 6.3.7
“Replacing the brush auger” on page 157.
Dismantle the cover of the mainte-
nance opening
Separate the drive flange Lift off the drive and the motor
plate
