REAR SHOCK ABSORBER 2.23
GENERAL
The rear suspension is controlled by the shock absorber. The
shock allows adjustment of rear compression and rebound
damping and spring preload.
The most important rear shock adjustment is the preload set-
ting. Before making any damping adjustments, set the proper
preload. See 1.11 SUSPENSION DAMPING ADJUST-
MENTS.

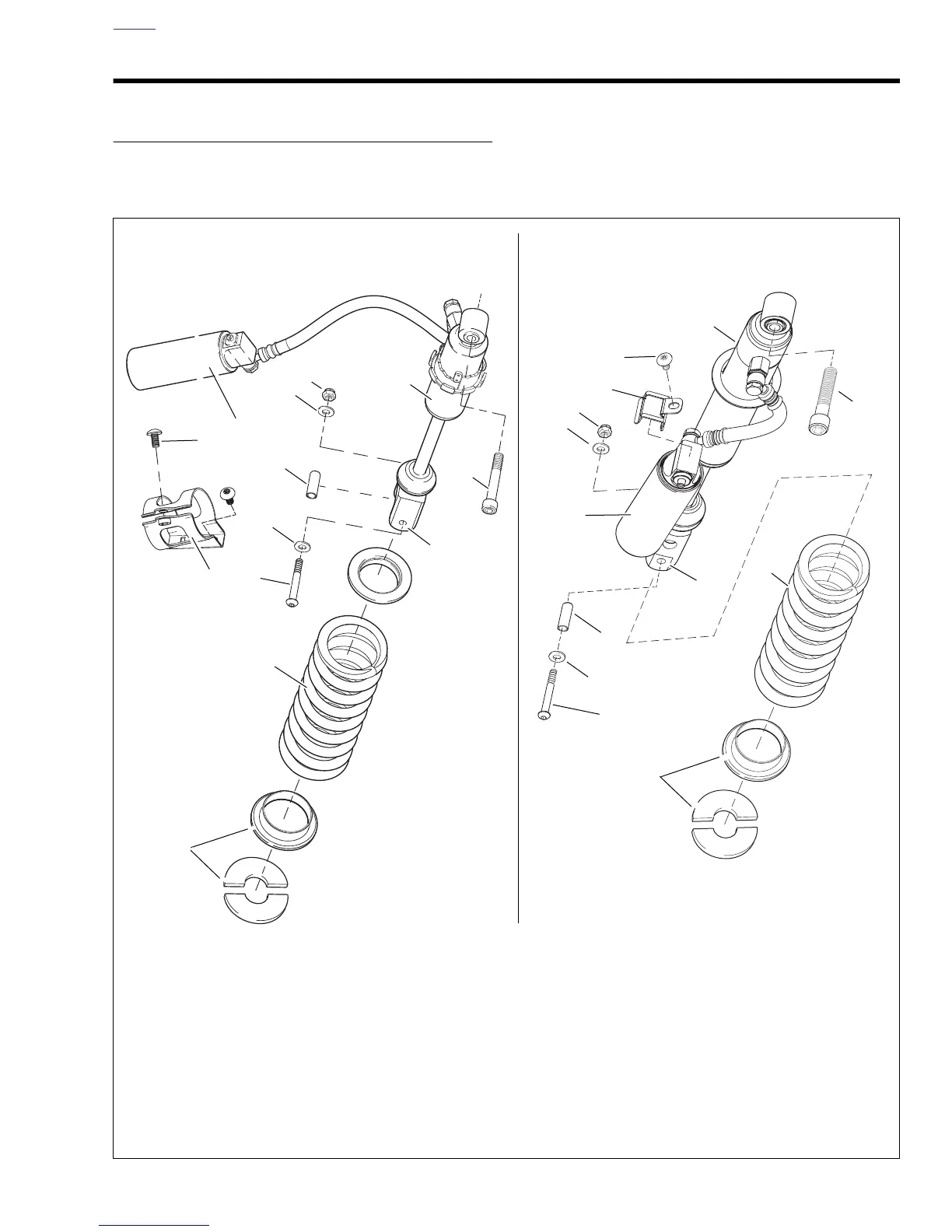

Figure 2-92. Rear Shock Absorber Assembly
b11256x1x
1
1. Remote reservoir clamp fastener
2. Remote reservoir clamp
3. Remote reservoir
4. Lower shock mount nut
5. Washers (2)
6. Lower shock mount sleeve
7. Lower shock mount fastener
8. Shock reservoir body
9. Upper shock mount fastener
10. Lower shock mount
11. Shock spring retainer kit
12. Rear shock spring
10
11
5
12
XB9SX, XB12S, XB12Scg
XB12Ss
b1255x1x
11
12
6
2
4
7
9
7
5
5
1
3
6
5
9
2
3
4
10
8
8
