Buell 2007 LIGHTNING Service Manual

2007 Buell Lightning: Fuel System 4-99
HOME
IGNITION COIL 4.32
REMOVAL
1WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
1. Disconnect negative battery cable.
2. Remove intake cover assembly. See 2.38 INTAKE
COVER ASSEMBLY.
3. Remove air cleaner assembly. See 4.44 AIR CLEANER
ASSEMBLY.
4. See Figure 4-77. Disconnect the spark plug cables from
the coil plug posts (1, 5).
5. Detach connector (3) [83].
6. Remove coil fasteners (2).
INSTALLATION
NOTE
To ease installation, install spark plug cables to ignition coil
first.
1. Connect spark plug cables to ignition coil.
2. See Figure 4-77. Attach coil to frame with fasteners (2).
Tighten to 120-144 in-lbs (13.6-16.3 Nm).
3. Attach front and rear spark plug cables to ignition coil
posts.
4. Attach connector (3) [83].
5. Install air cleaner assembly. See 4.44 AIR CLEANER
ASSEMBLY.
6. Install intake cover assembly. See 2.38 INTAKE COVER
ASSEMBLY.
7. Connect negative battery cable.

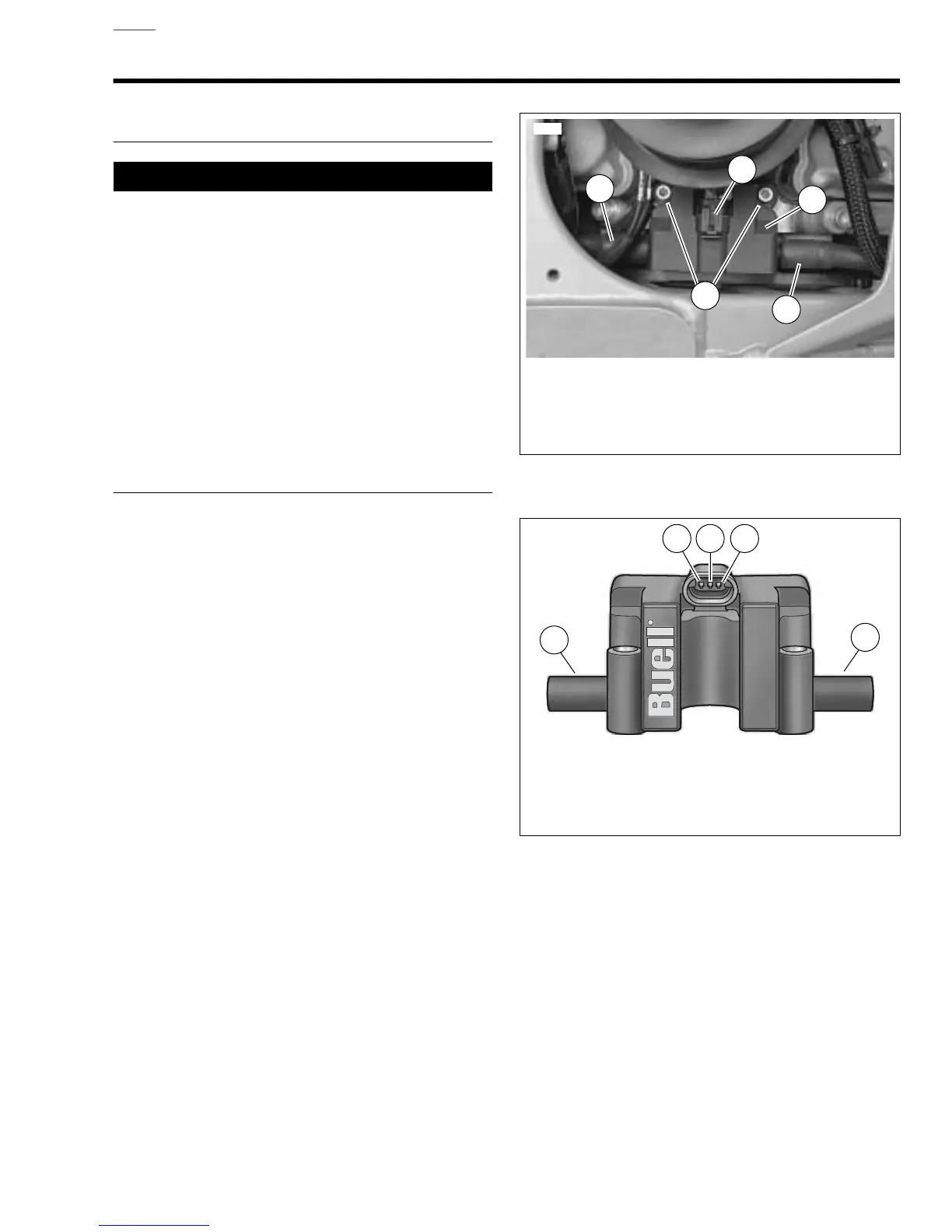

Figure 4-77. Ignition Coil Location
Figure 4-78. Ignition Coil
8843
1
3
2
1. Front cylinder post
2. Fasteners
3. Coil connector [83]
4. Coil
5. Rear cylinder post
5
4
1
1. Rear Cylinder Post
2. Coil Pin A (rear cylinder)
3. Coil Pin B (12 VDC)
4. Coil Pin C (front cylinder)
5. Front Cylinder Post
2 3
4
5
b0993x4x

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
