Buell 2007 LIGHTNING Service Manual

4-74 2007 Buell Lightning: Fuel System
HOME
TROUBLE CODE 33 4.24
GENERAL
Fuel Pump
The fuel pump assembly is shown in Figure 4-53. ECM Pin 3
provides ground to the fuel pump. Code 33 will set if:
● See Figure 4-54. BN/Y wire is shorted to 12 volts. This
will also cause the ignition fuse to blow.
● BN/Y wire is shorted to ground. This will cause the fuel
pump to run continuously even when the motor is not
running.
● Fuel pump motor stalls or spins without providing fuel
pressure.
DIAGNOSTICS
Diagnostic Notes
The reference numbers below correlate with the circled num-
bers on the Code 33 flow chart.
1. Connect BREAKOUT BOX (Part No. HD-42682) to ECM.
See 4.6 BREAKOUT BOX.
2. Use HARNESS CONNECTOR TEST KIT (Part No. HD-
41404), red pin probe and patch cord.
3. Use HARNESS CONNECTOR TEST KIT (Part No. HD-
41404), gray socket probe and patch cord.

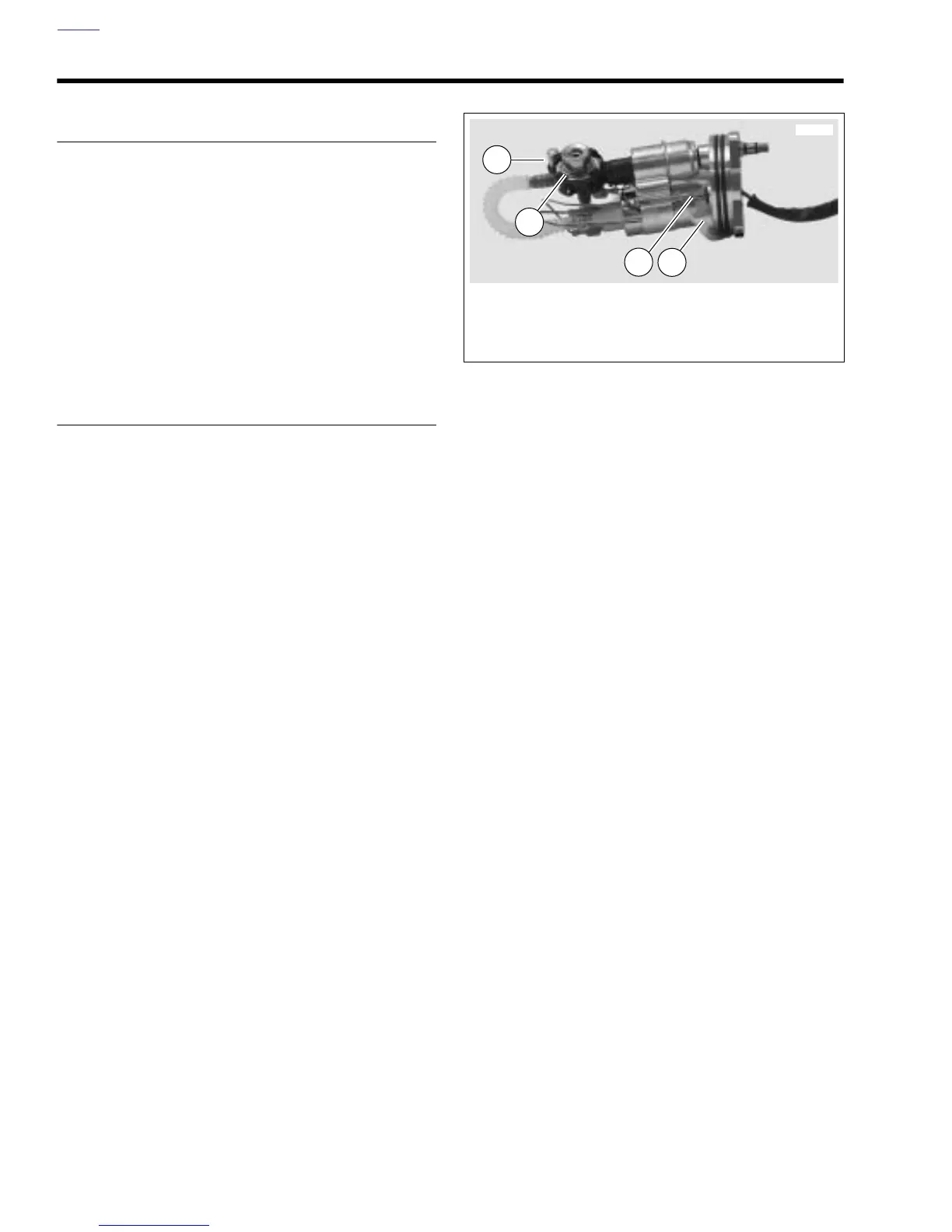

Figure 4-53. Fuel Pump Assembly
10932b
2
1. Fuel screen
2. Wiring harness
3. Pressure regulator
4. Low fuel level sensor
1
4
3
