4-84 2007 Buell Lightning: Fuel System

HOME

TROUBLE CODE 44 4.27

GENERAL

NOTE

See Figure 4-61. When vehicle lean angle causes weighted

pendulum to enter shaded area for a period of greater than

one second, ECM shuts off ignition and fuel systems.

Bank Angle Sensor

See Figure 4-63. A Code 44 occurs when the bank angle

sensor voltage is outside the normal operating range of 0.24-

4.79 volts. Refer to Table 4-31. This may be caused by:

● Short to ground in harness between sensor and elec-

tronic control module.

● Short to voltage in harness between sensor and elec-

tronic control module.

● Failed sensor.

If this code occurs, the engine will continue to run and can be

ridden to the dealership for repair.

DIAGNOSTICS

Diagnostic Notes

The reference numbers below correlate with the circled num-

bers on the Code 44 ﬂow charts.

1. Use HARNESS CONNECTOR TEST KIT (Part No. HD-

41404), gray pin probes and patch cord.

2. Connect BREAKOUT BOX (Part No. HD-42682) to ECM.

See 4.6 BREAKOUT BOX.

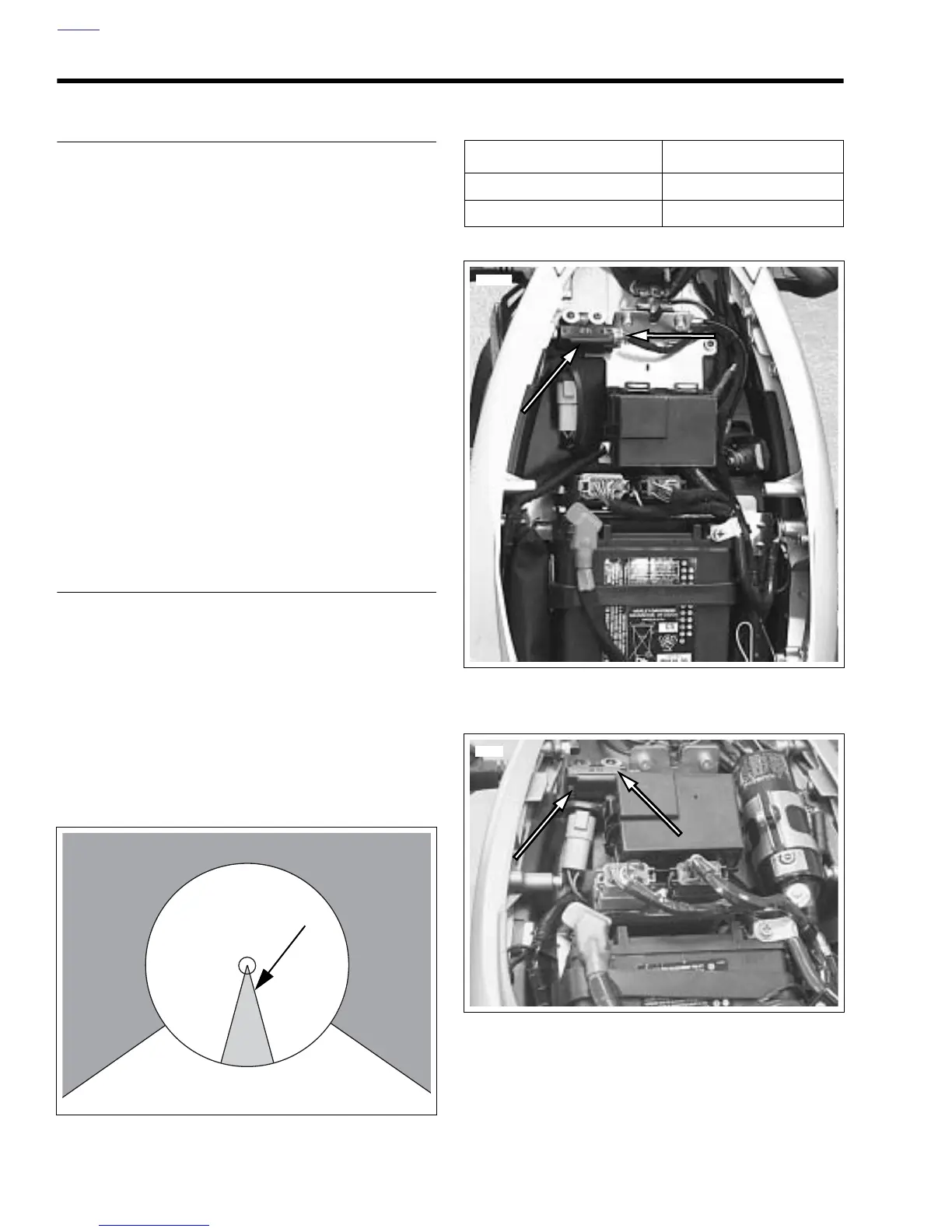

Figure 4-61. Bank Angle Sensor Operation

b1085x4x

Run Mode 0.24-3.4 volts

Disable Mode 3.5-4.79 volts

Weighted pendulum

Table 4-31. Bank Angle Sensor Voltage

MODE VOLTS

Run mode 0.24-3.4

Disable mode 3.5-4.79

Figure 4-62. Bank Angle Sensor (XB12Ss)

Figure 4-63. Bank Angle Sensor (Typical)

12154

8895
