Buell 2007 LIGHTNING - Footpeg, Heel Guard and Mount

2-86 2007 Buell Lightning: Chassis
HOME
FOOTPEG, HEEL GUARD AND MOUNT 2.33
RIDER
Remove Wear Peg
1. See Figure 2-116. Remove wear peg from end of footpeg
assembly.
Remove Footpeg
1. See Figure 2-116. Remove clip (5).
2. Remove footpeg pin (9).
3. Remove footpeg (8).
Remove Heel Guard
1. See Figure 2-116. Remove heel guard fasteners (4).
2. Remove heel guard (3).
Remove Mount
1. See Figure 2-116. Remove footpeg mount fasteners (2).
2. Remove footpeg mount (1).
Install Mount
1. See Figure 2-116. Position footpeg mount (1).
2. Install footpeg mount with fasteners (2). Tighten to 132-
144 in-lbs (14.9-16.2 Nm).
Install Heel Guard
1. See Figure 2-116. Position heel guard (3) onto footpeg
mount (1).
NOTE
There is one long fastener which installs on the lower left side
in order to secure the non-California vent clamp.
2. Install heel guard (3) with fasteners (4). Tighten to 72-
96 in-lbs (8-11 Nm).
Install Footpeg
1. See Figure 2-116. Position spring (6)in footpeg (8).
2. Position footpeg (8) on to footpeg mount (1).
3. Install footpeg pin (9).
4. Install footpeg clip (5).
Install Wear Peg
1. See Figure 2-116. Apply Loctite 271 (red) and tighten to
36-48 in-lbs (4.1-5.4 Nm).

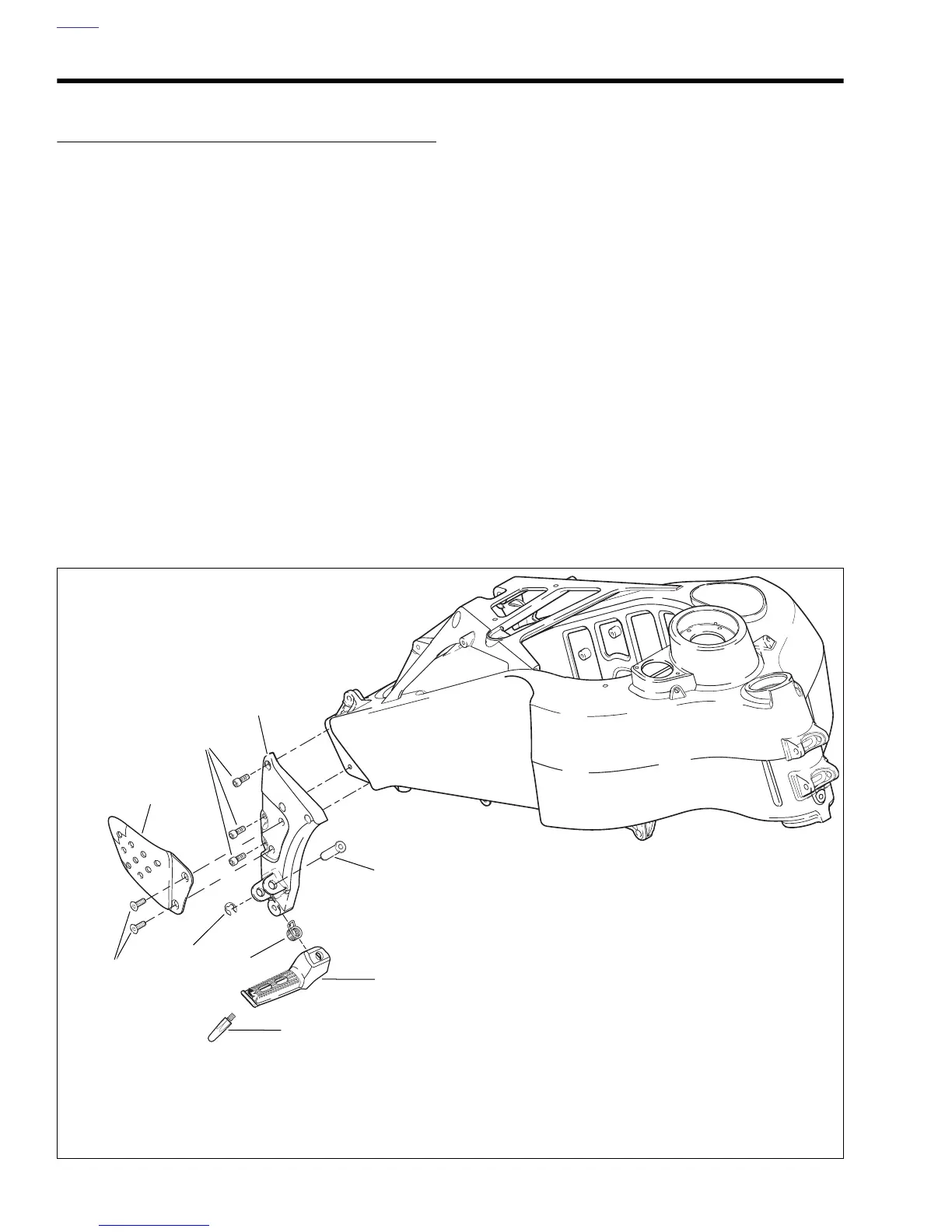

Figure 2-116. Rider Footpeg, Mount and Heel Guard Assembly
1. Footpeg mount
2. Footpeg mount fasteners
3. Heel guard
4. Heel guard fasteners
5. Clip, footpeg
6. Spring
7. Wear peg
8. Footpeg
9. Pin
b0934a2x
9
1
5
6
7
3
4
8
2
