LICENSE PLATE LAMP ASSEMBLY 7.14
REMOVAL/DISASSEMBLY
1. Remove seat. See 2.44 SEAT.
2. See Figure 7-55. Disconnect the two connectors [45]
from license plate lamp harness (2).
3. Remove two jam nuts and washers (1) to detach license
plate lamp from center tail section (3).
4. Pull the lamp assembly away from center tail section
pulling the harness out between the tail screen and the
center tail section.
NOTE
See Figure 7-56. If replacing bulb only, remove both lamp
lens screws (3), remove lamp lens (5) and remove bulb (4).
Replace bulb and install lens and tighten screws.
ASSEMBLY/INSTALLATION
1. See Figure 7-55. Install license plate lamp assembly.
a. Insert license plate lamp wiring harness (2) through
hole at rear of center tail section (3) and route
between the tail section and the tail screen (4).
b. Attach lamp assembly to tail section using washers
and jam nuts (1) and tighten to 12-36 in-lbs (1.4-4.1
Nm).
c. Attach the two connectors [45] from license plate
lamp harness (2) to main harness.
2. Check lamp for proper operation. If operation fails,
reread procedure and verify that all steps were per-
formed.
a. Turn ignition key switch to ON.
b. Check for license plate lamp illumination.
c. Turn ignition key switch to OFF.
1WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
3. Install seat. See 2.44 SEAT.

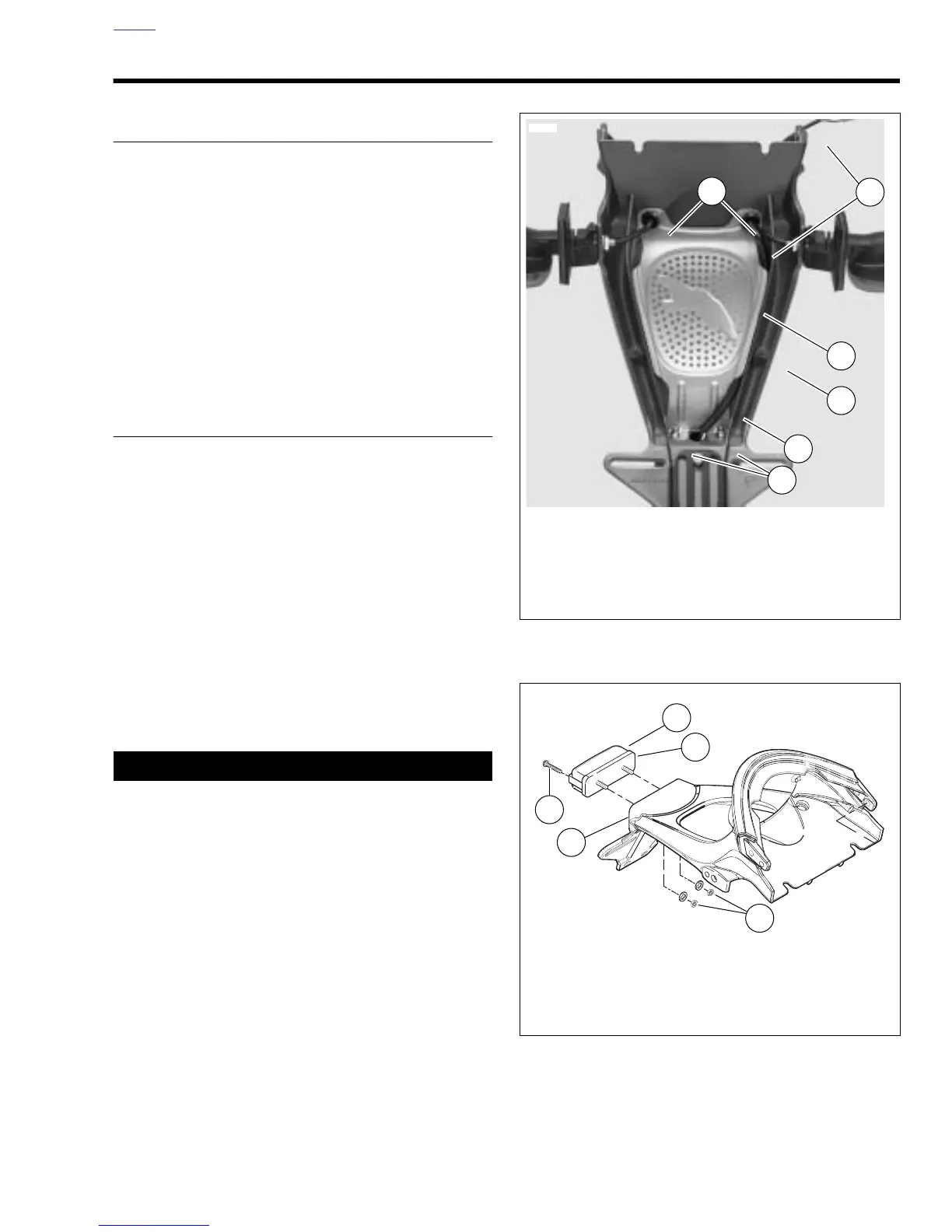

Figure 7-55. License Plate Lamp Mounting
Figure 7-56. License Plate Lamp
1. Jam nuts (2)
2. Lamp wiring harness and connectors [45]
3. Center tail section
4. Tail screen
5. Grommets (2)
2
8901a
1
3
4
5
2
1. Jam nuts with washers (2)
2. Center tail section
3. Screws (2)
4. Lamp lens
5. License plate lamp
1
2
3
4
5
b1140x7ax
