5-12 2007 Buell Lightning: Starter

HOME

STARTER 5.7

REMOVAL

1. Remove seat. See 2.44 SEAT.

1WARNING1WARNING

Disconnect negative (-) battery cable ﬁrst. If positive (+)

cable should contact ground with negative (-) cable con-

nected, the resulting sparks can cause a battery explo-

sion, which could result in death or serious injury.

(00049a)

2. Disconnect battery. See 1.4 BATTERY MAINTENANCE.

3. Remove primary cover. See 6.2 PRIMARY COVER.

4. Remove sprocket cover. See 2.34 SPROCKET COVER.

NOTE

A ball hex driver may be required to gain access to the starter

mounting bolts.

5. See Figure 5-8. Remove two starter mounting bolts and

washers (1).

6. See Figure 5-9. Remove fastener with washer (1) (met-

ric).

a. Remove protective boot.

b. Remove positive battery cable (2) ring terminal.

c. Detach solenoid wire (3).

7. Remove starter and gasket from the gearcase cover side.

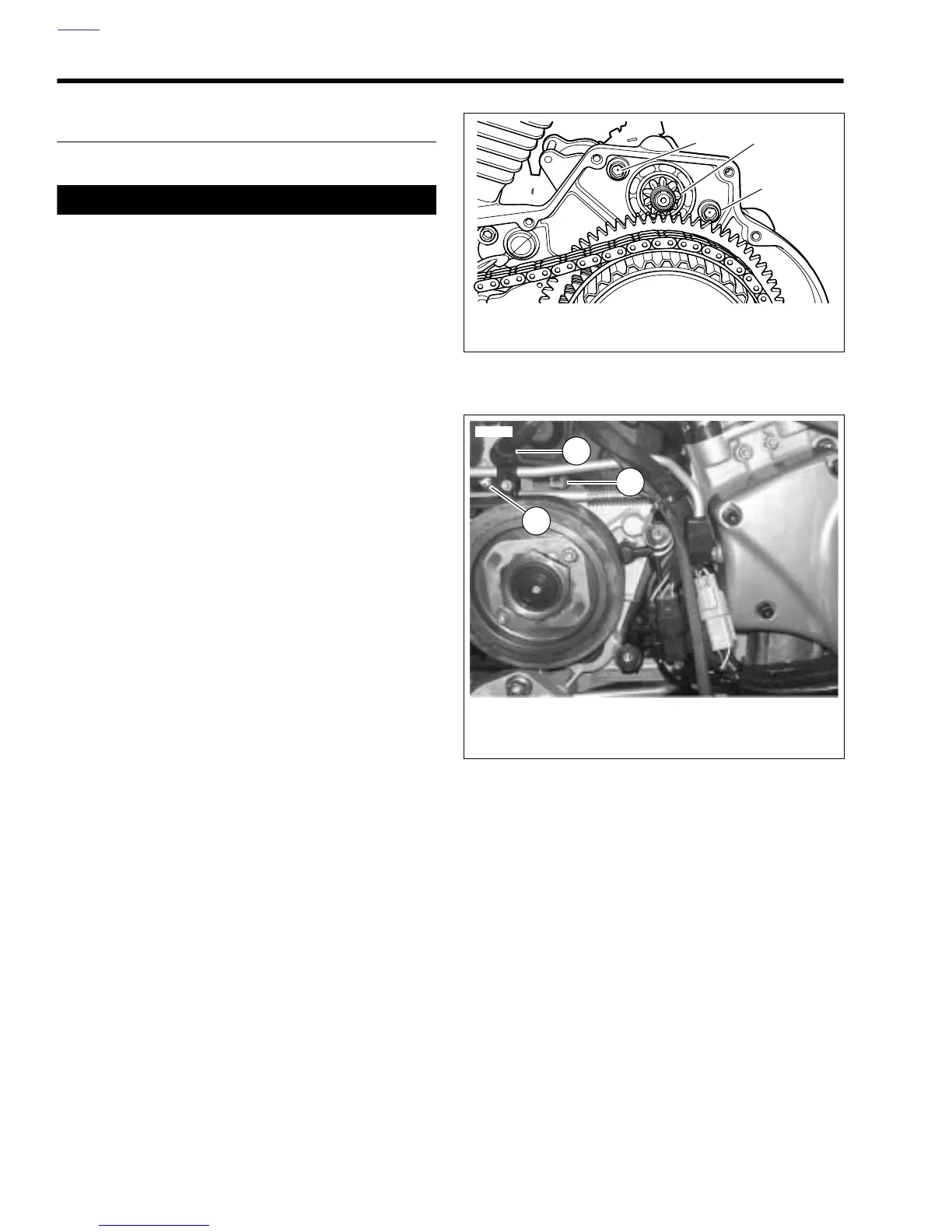

Figure 5-8. Starter Mounting

Figure 5-9. Starter Wires

(protective boot not shown)

1. Mounting bolts and washers

2. Starter

b0312x5x

12367

1. Fastener with washer (metric)

2. Positive battery cable

3. Solenoid wire
