Buell 2007 LIGHTNING Service Manual

2-26 2007 Buell Lightning: Chassis
HOME
BRAKE PEDAL 2.9
REMOVAL
1. See Figure 2-36. Remove cotter pin (7) and discard.
2. Remove clevis pin (2).
3. Remove pedal fastener (5).
4. Remove shift brake pedal sleeve (4).
5. Remove pedal bushings (3).
6. Remove brake pedal (6).
INSTALLATION
1. See Figure 2-36. Install pedal bushings (3).
2. Install shift brake pedal sleeve (4).
3. Install brake pedal (6) using LOCTITE 271 (Red) and
tighten fastener (5) to 22-24 ft-lbs (30-33 Nm).
4. Install clevis pin (2).
5. Install new cotter pin (7).

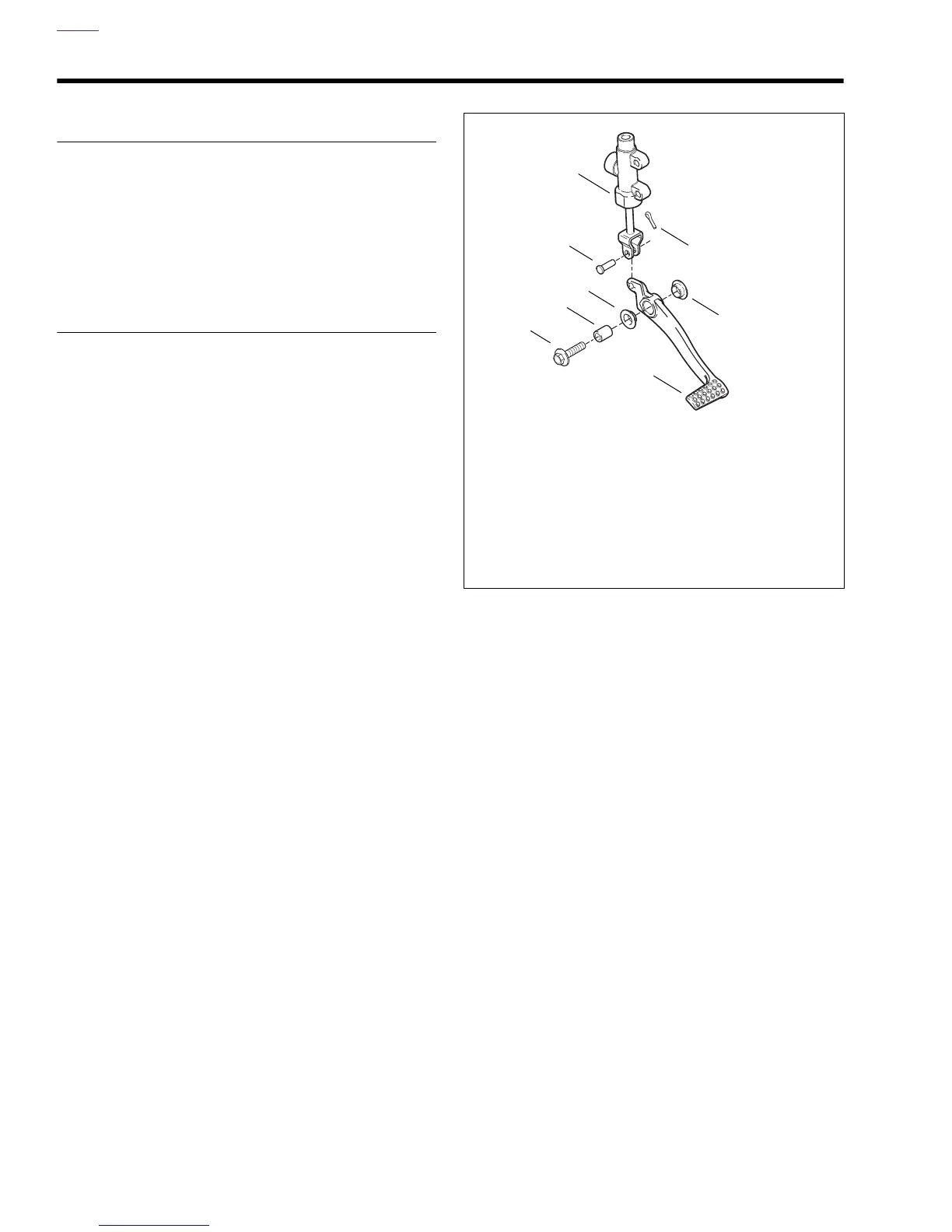

Figure 2-36. Brake Pedal Assembly
1. Rear master cylinder body
2. Clevis pin
3. Pedal bushings (2)
4. Shift brake pedal sleeve
5. Brake pedal fastener
6. Brake pedal
7. Cotter pin
b0938x2x
1
2
4
5
3
7
6
3

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
