Buell 2007 LIGHTNING Service Manual

7-52 2007 Buell Lightning: Electrical
HOME
HANDLEBAR SWITCHES 7.17
REMOVAL
NOTE
The individual handlebar switches are not repairable.
Replace switch assembly upon switch failure.
Right Side
1. Remove throttle cables. See 2.24 THROTTLE CON-
TROL.
2. Access right handlebar switch connector [22] under
windscreen. Remove cable straps. Detach connector
[22] from wiring harness.
3. Detach brake switch connector [121].
Left Side
1. Remove left switch housing mounting fasteners.
2. Unplug the clutch switch [95].
3. Access left handlebar switch connector [24] under wind-
screen. Remove cable straps. Detach connector [24]
from wiring harness.

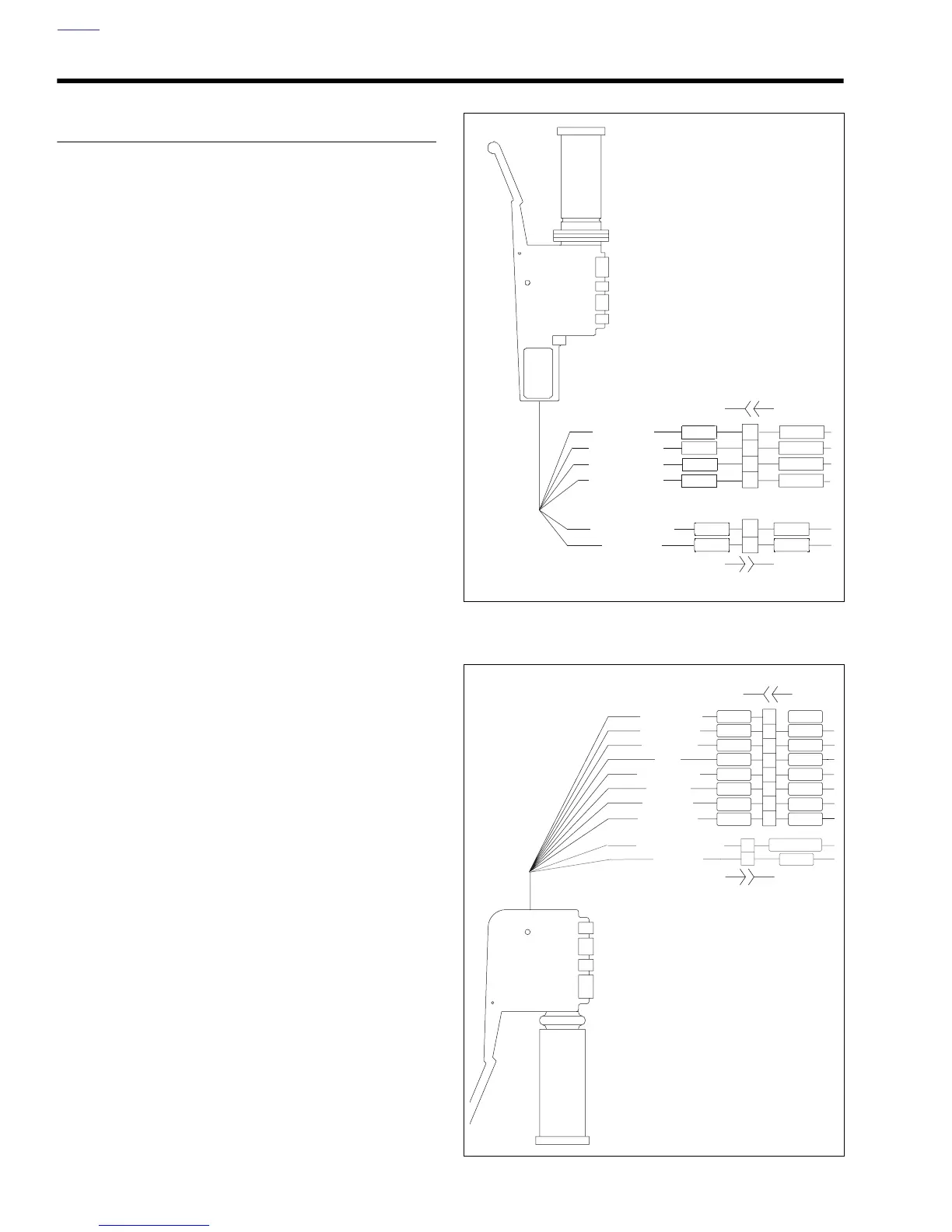

Figure 7-65. Right Handlebar Switch Connection
Figure 7-66. Left Handlebar Switch Connection
1
2
1
3
2
4
Right Handlebar Switch
Brake Switch
To starter relay
GY
Fused power
GY/O
W/BK
W/BK
W/BK
W/BK
BK/R
BK/R
O
O
R/Y
R/Y
To stoplight
From Ign. relay
To Ign. relay
From Ign. relay
[121A] [121B]
[22A] [22B]
2
8
7
6
5
4
3
1
2
1
b1103x7x
Clutch Switch
Left Handlebar Switch
Y/BK
To headlamp
BE/W
Y/BK
V/BN
Light power
High beam
Horn
From flasher
Left turn
Right turn
Horn power
To interlock circuit
To ground
Y
W
W
Y
V
O
V
O
BN
BN
BE BE
BK
TN/LTGN
[24B][24A]
[95A][95B]
