2007 Buell Lightning: Electrical 7-75

HOME

INTERACTIVE EXHAUST HARNESS (XB12 MODELS) 7.25

REMOVAL

1. Remove seat. See 2.44 SEAT.

2. Remove intake cover assembly. See 2.38 INTAKE

COVER ASSEMBLY.

3. See Figure 7-95. Remove negative battery cable (3) from

battery. See 7.11 BATTERY.

4. Remove the fuse block from the battery tray to access

the actuator ground actuator harness connector [165].

5. Remove the exhaust actuator ground (4).

6. See Figure 7-95. Separate exhaust actuator harness

connector [165] at main harness.

7. Pull actuator harness through frame.

8. Disconnect connector [161B] from actuator.

NOTE

For actuator or actuator cable replacement see 7.6 INTER-

ACTIVE EXHAUST SYSTEM.

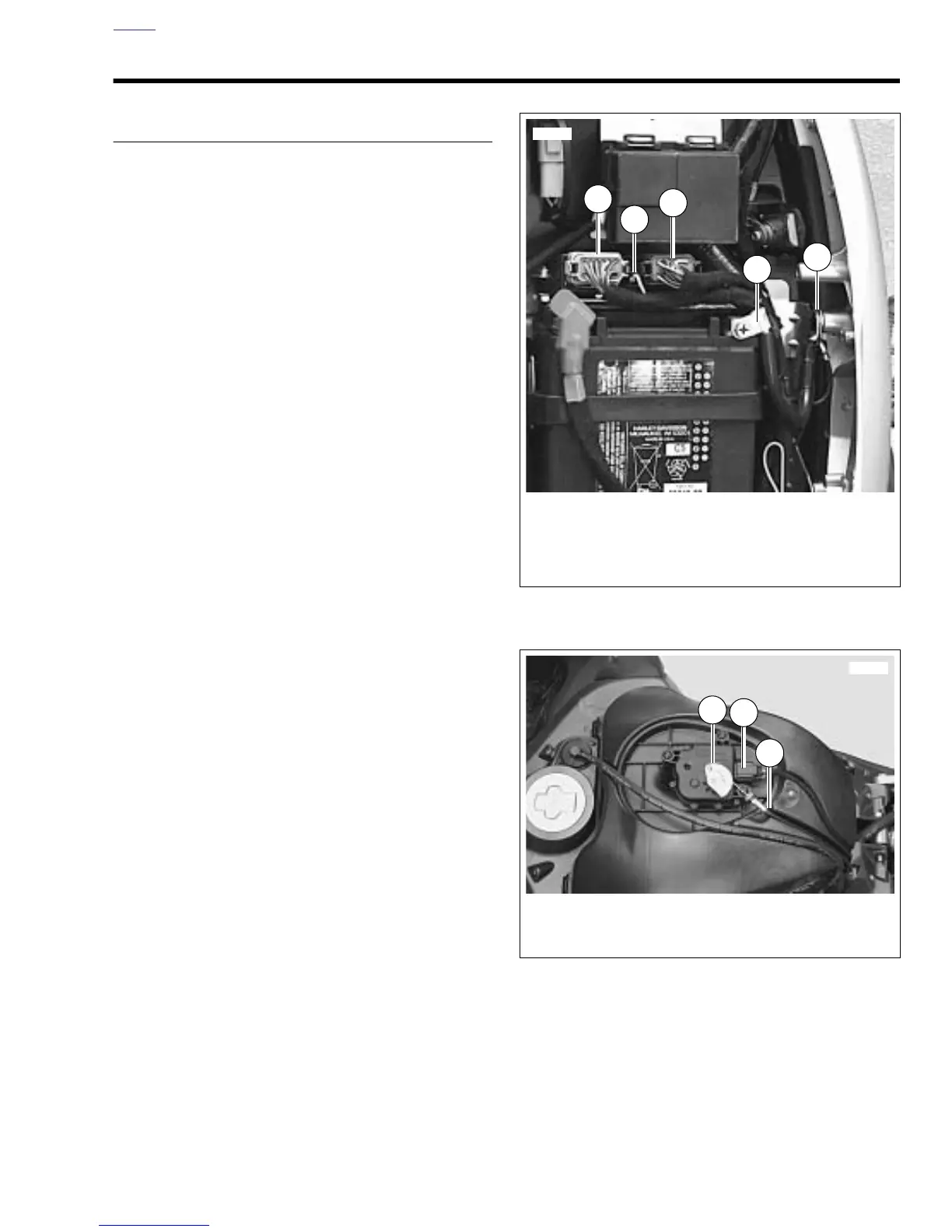

Figure 7-95. Harness and Cable Routing (XB12 Models)

Figure 7-96. Exhaust Actuator (XB12 Models)

1. ECM connector [10]

2. ECM connector [11]

3. Negative battery cable

4. Battery and actuator ground

5. Active mufﬂer connector [164]

12154a

1. Interactive exhaust cable

2. Actuator connector [161B]

3. Interactive exhaust cable wheel

12049
