CHECKING CAST RIM RUNOUT 2.7

GENERAL

Check wheels for lateral and radial runout before installing a

new tire.

Rim Lateral Runout

1. See Figure 2-27. Install truing arbor in wheel hub and

place wheel in WHEEL TRUING AND BALANCING

STAND (Part No. HD-99500-80).

2. Tighten arbor nuts so hub will turn on its bearings.

3. Check rim lateral runout by placing a gauge rod or dial

indicator near the rim bead. Replace wheel if lateral

runout exceeds speciﬁcation shown in Table 2-10.

Rim Radial Runout

1. See Figure 2-28. Install truing arbor in wheel hub and

place wheel in WHEEL TRUING AND BALANCING

STAND (Part No. HD-99500-80).

2. Tighten arbor nuts so hub will turn on its bearings.

3. Check radial runout as shown. Replace wheel if runout

exceeds speciﬁcation shown in Table 2-10.

Table 2-10. Wheel Rim Runout

RUNOUT IN MM

Maximum lateral 0.040 1.02

Maximum radial 0.030 0.76

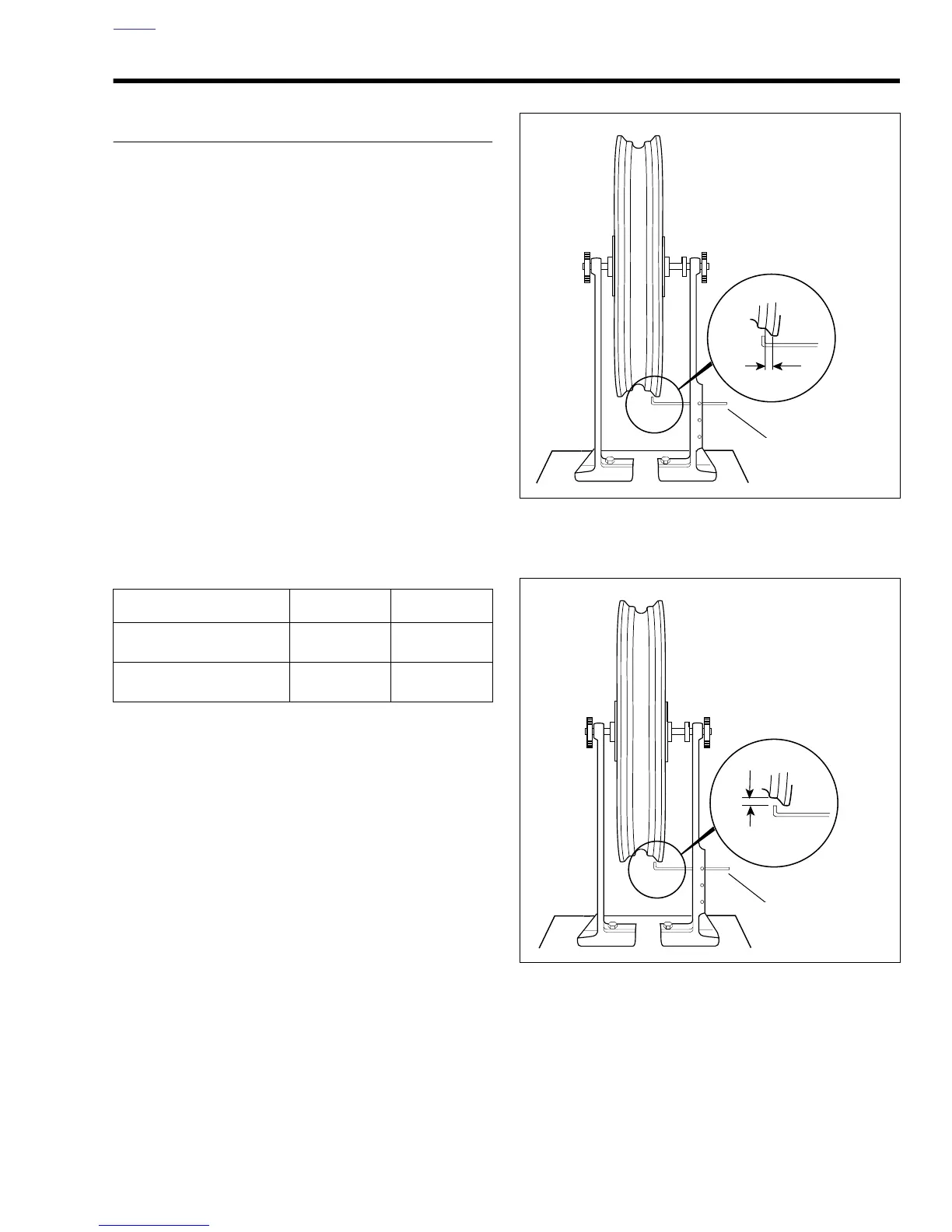

Figure 2-27. Checking Cast Rim Lateral Runout Using

Wheel Truing and Balancing Stand (HD-99500-80)

Figure 2-28. Checking Cast Rim Radial Runout Using

Wheel Truing and Balancing Stand (HD-99500-80)

b0757x2x

Gauge rod

b0758x2x

Gauge rod
