2007 Buell Lightning: Chassis 2-89
HOME
FENDERS 2.35
FRONT FENDER
Removal
1. See Figure 2-120. Remove fasteners and washers (2)
securing the front fender (1) to front forks.
2. Carefully remove front fender (1).
Installation
1. See Figure 2-120. Align front fender (1) to fender mounts
on front forks.
2. Install front fender (1) with fasteners and washers (2),
apply LOCTITE 271 and tighten to 36-48 in-lbs (4-
5.4 Nm).
REAR FENDER
Removal
1. See Figure 2-120.
a. For XB9SX, XB12S, andXB12Scg: Remove fasten-
ers (4) securing the rear fender (3) to swingarm.
b. For XB12Ss: Remove fender fasteners (6).
2. Remove rear fender (XB9SX, XB12S, XB12Scg - 3)
(XB12Ss - 5).
Installation
1. See Figure 2-120. Align rear fender to the swingarm.
2. Install rear fender with fasteners (6).
a. For XB9SX, XB12S, andXB12Scg: Tighten to 12-
36 in-lbs (1.4-4.0 Nm).
b. For XB12Ss: Tighten fender fasteners to 12-36 in-
lbs (1.4-4.0 Nm).
NOTE
It is necessary to align the rear brake line with the rear inner
fender. The rear fender captures the rear brake line to help
maintain the proper alignment and location.

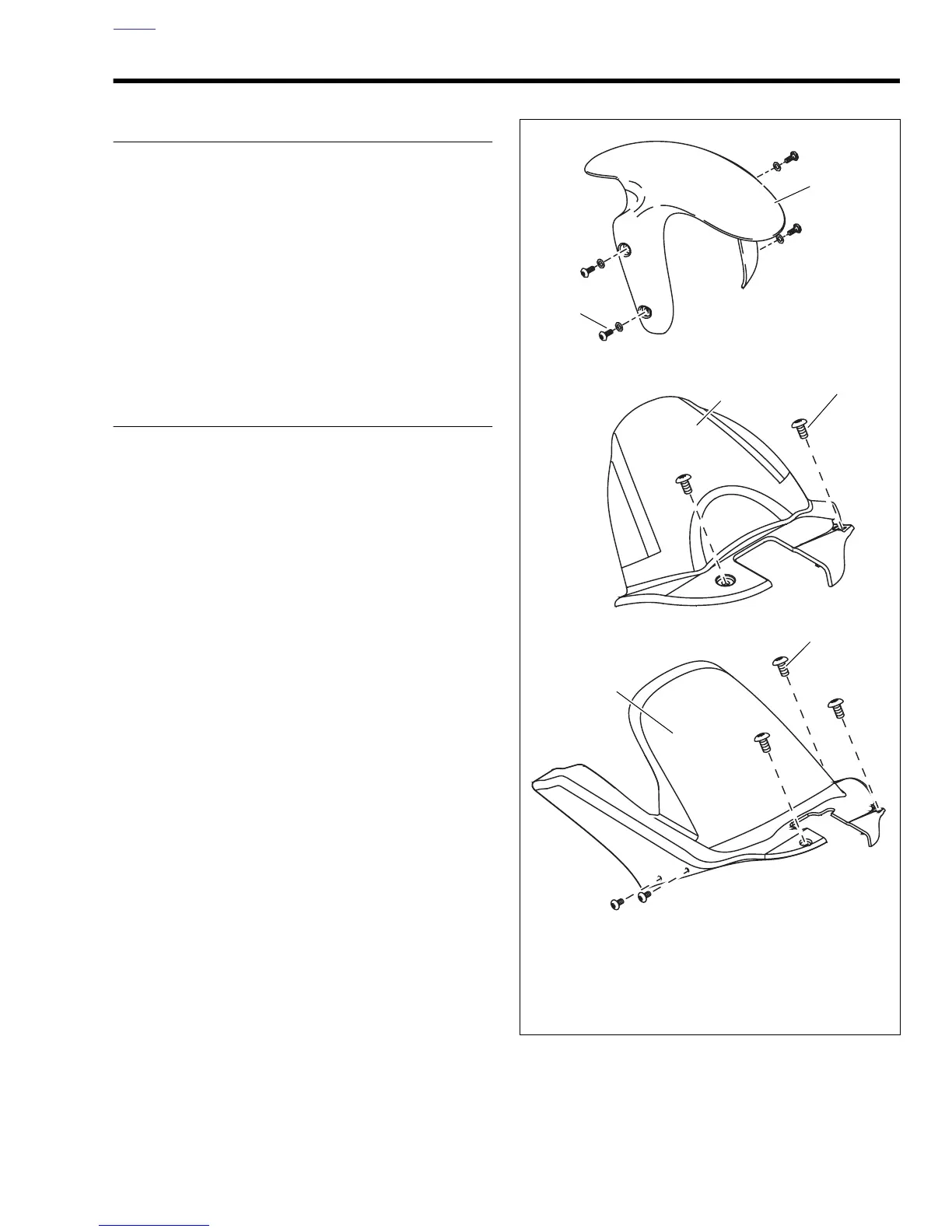

Figure 2-120. Front and Rear Fender
1. Front fender
2. Front fender fastener (4)
3. Rear fender (XB9SX, XB12S, XB12Scg)
4. Rear fender fastener (2)
5. Rear fender (XB12Ss)
6. XB12Ss rear fender fastener (5)
b1263x1x
1
2
3
4
6
5
