TURN SIGNALS 7.15
REMOVAL
NOTE
To ensure correct installation, make note of wire routing and
cable strap locations before removing turn signals.
Bulbs
Remove screw on back of housing to access turn signal
bulbs.
Front
1. Remove windscreen. See 2.43 WINDSCREEN.
2. See Figure 7-57. Disconnect bullet connectors on turn
signal wires.
3. See Figure 7-58. Remove jam nut and lockwasher (2)
from inside of front module (3).
4. Pull bullet connectors and wiring through hole in front
module (3) and remove turn signal (1).
Figure 7-57. Front Turn Signal Connections
22
11
11
22
[31B]
[31A]
[31B]
[31A]
b1100x7x
Right Turn
Signal
Left Turn
Signal
BK
V
BE
BK
BK
BE
BK
BN

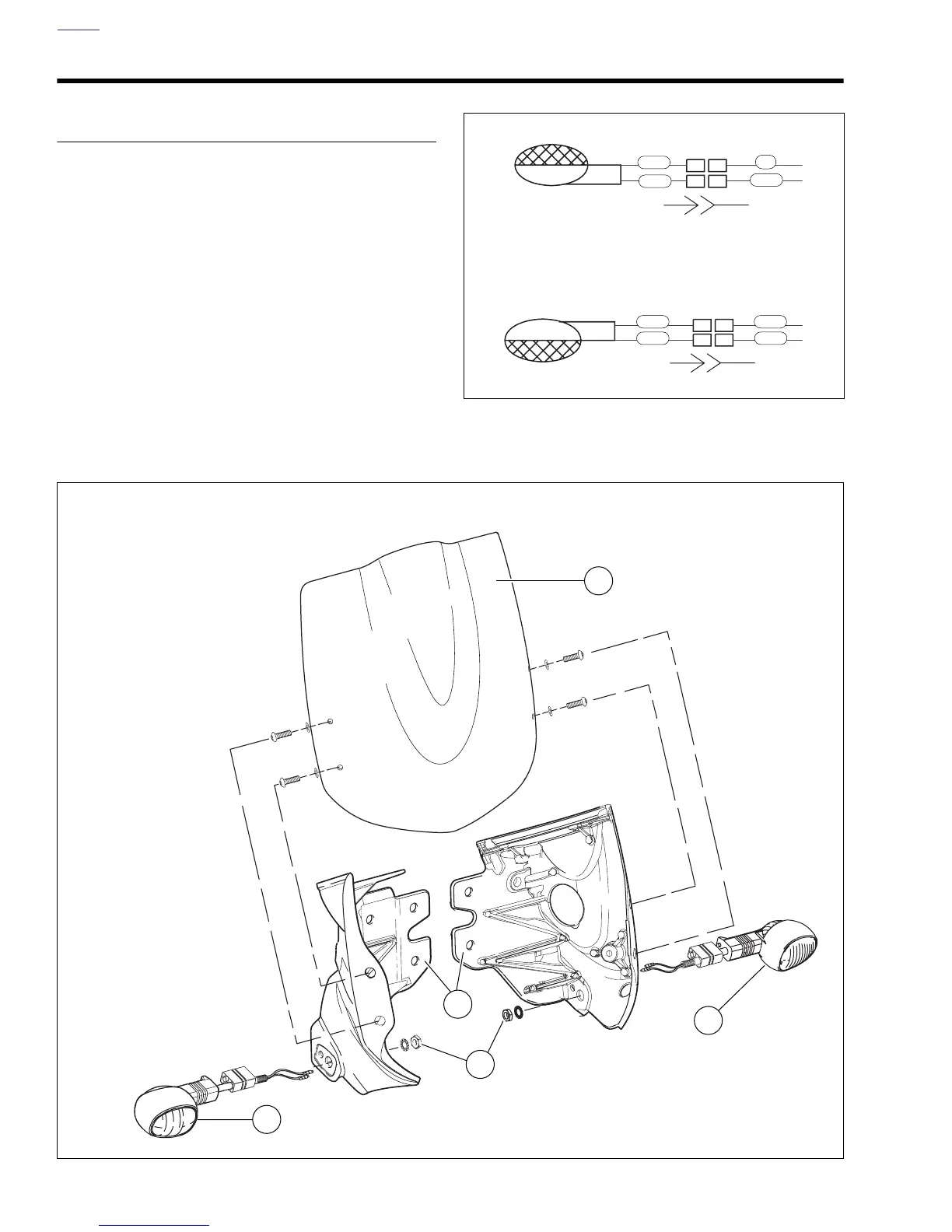

Figure 7-58. Front Turn Signals
1. Turn signal (2)
2. Jam nut and lockwasher (2)
3. Front module, left and right
4. Windscreen
4
b1141x7x
3
2
1
1
