2007 Buell Lightning: Engine 3-75
HOME
OIL COOLER 3.11
GENERAL
For engine oil flow through the engine, See 3.14 OILING
SYSTEM.
Engine oil flows from the oil pump to the oil cooler through a
supply hose. The oil circulates through the finned tubes of the
cooler to dissipate heat and returns to the oil filter mount
through a return hose.
NOTE
If any oil line fittings are found to be loose, or not oriented in
the proper position, those fittings must be removed and thor-
oughly cleaned. After cleaning, apply LOCTITE 565 Sealant
to the fitting and re-install to the correct orientation. When
tightening oil lines, always support the oil line fitting with a
wrench to maintain proper orientation and prevent damage to
the oil line fitting.

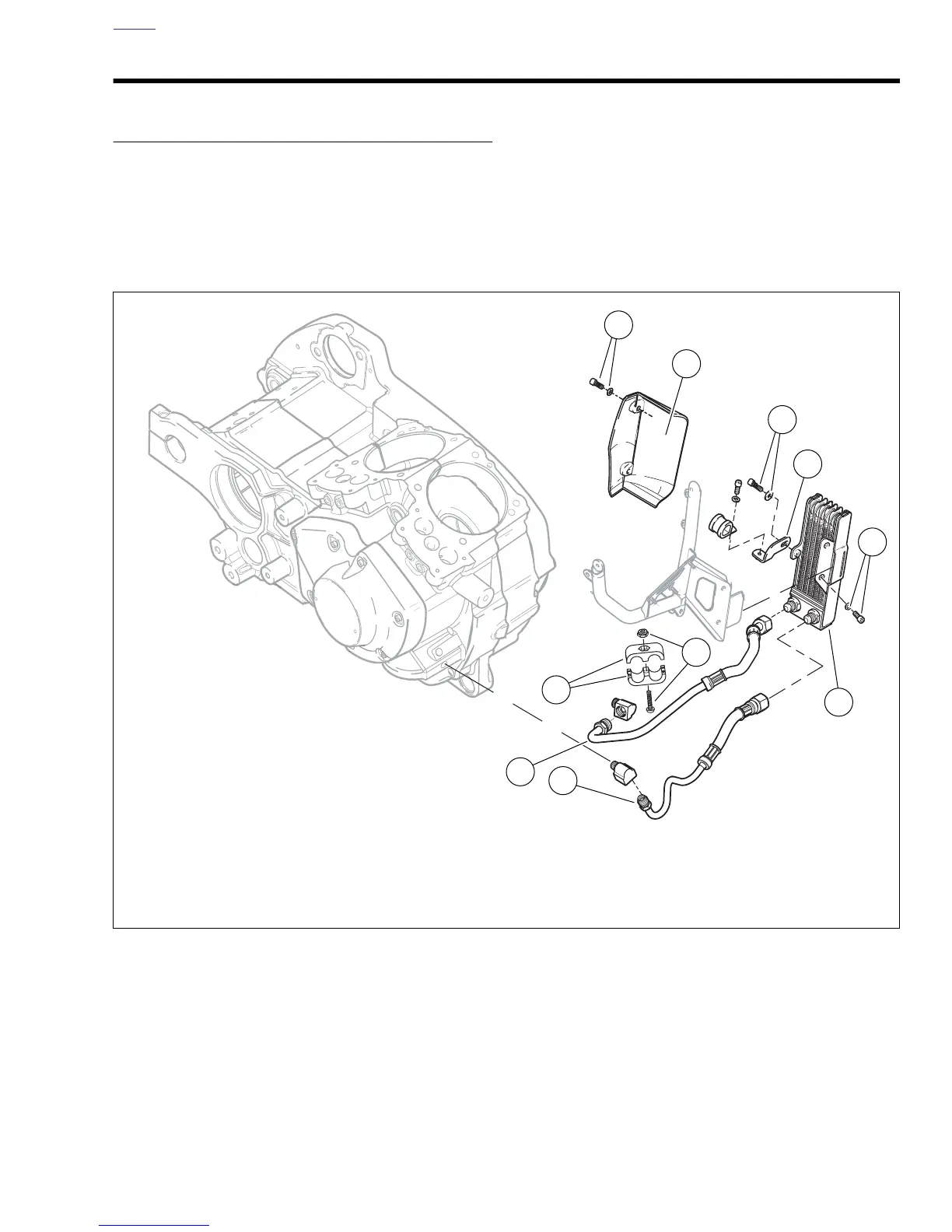

Figure 3-110. Oil Cooler
1. Oil cooler feed line
2. Oil cooler return line
3. Clamp, oil line
4. Screw with nut
5. Oil cooler
6. Screws with washers (2)
7. Stabilizer bracket
8. Screw with washer (1)
9. Oil cooler scoop
10. Screws with washers (2)
2
1
3
4
5
6
7
8
9
10
b1168x3x
