3-72 2007 Buell Lightning: Engine

HOME

OIL HOSE ROUTING AND OIL RESERVOIR 3.9

GENERAL

See Figure 3-106. Engine oil runs through the swingarm

which serves as the oil reservoir. From the front of the reser-

voir, the vent line (2) runs to the rear of the gearcase cover.

The return line (4) and the feed line (3) run forward to the oil

pump (14). Three rubberized clamps (12) and one plastic

clamp (13) secure the lines in place.

The oil cooler feed line (5) exits the front of the oil pump and

routes across the front of the engine to the oil cooler on the

left front side of the crankcases. The oil cooler return line (6)

then exits the oil cooler and connects to the oil ﬁlter housing

on the right front side of the crankcases.

For more information see 3.14 OILING SYSTEM.

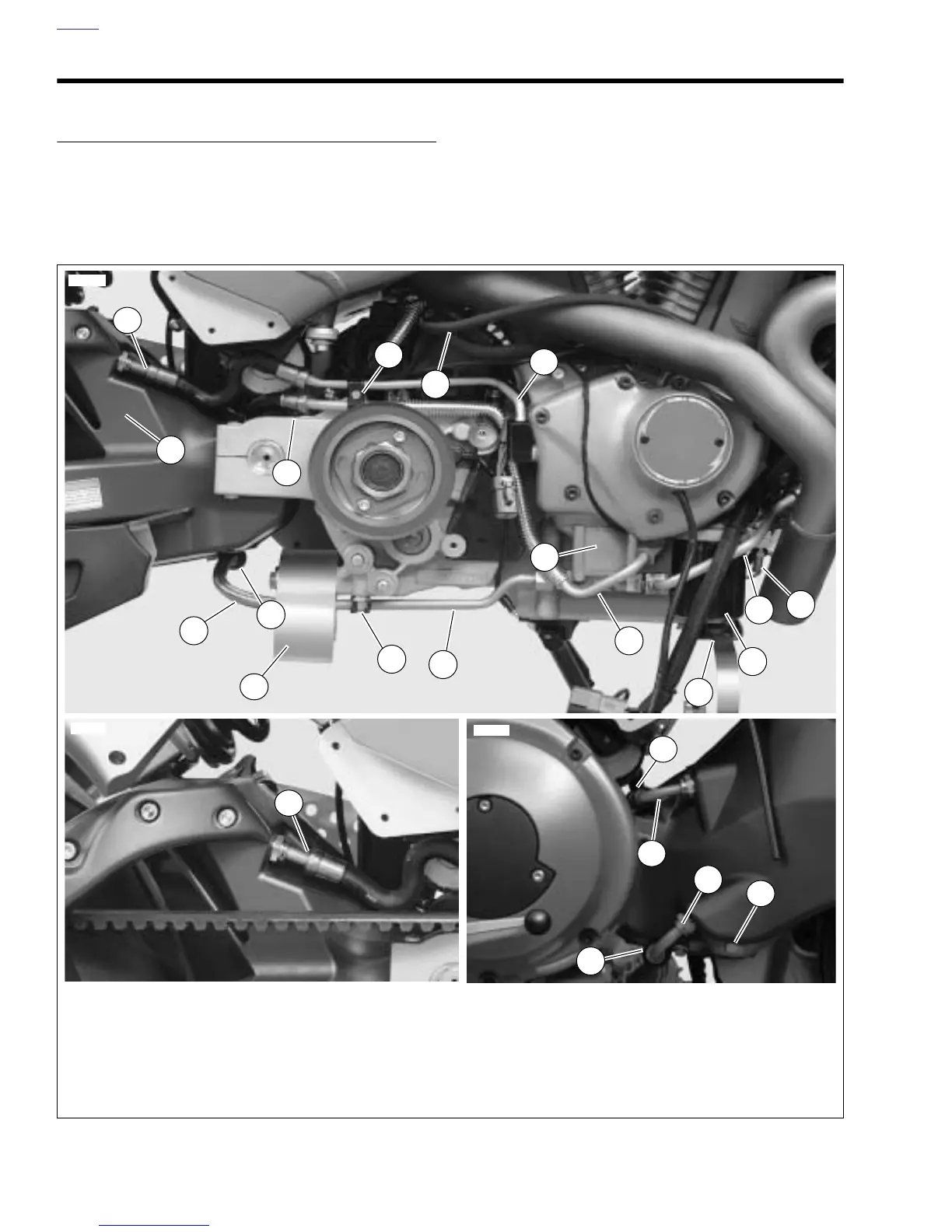

Figure 3-106. Oil Lines and Connections

1. Swingarm/Oil reservoir

2. Vent oil line

3. Feed oil line

4. Return oil line

5. Feed oil line from oil pump to oil cooler

6. Feed oil line from oil cooler to crankcase

7. Oil tank drain plug

8. Oil Filter

9. Front mufﬂer mount

10. Rear mufﬂer bracket

11. Cable, interactive exhaust

12. P-clamp

13. Oil line clamp

14. Oil pump

11964b

11963a

11972
