TRANSMISSION ASSEMBLY 6.10

GENERAL

MAINSHAFT ASSEMBLY

11WARNING1WARNING

Wear safety glasses or goggles when removing or install-

ing retaining rings. Retaining rings can slip from the pli-

ers and could be propelled with enough force to cause

serious eye injury. (00312a)

NOTES

● Use correct retaining ring pliers and correct tips. Verify

that tips are not excessively worn or damaged.

● During assembly, the split bearings and the internal

bores of the gears must be lubricated with Harley-David-

son FORMULA+ TRANSMISSION AND PRIMARY

CHAINCASE LUBRICANT prior to assembly. Leaving

these parts dry could accelerate wear at start-up.

1. See Figure 6-64. Install new split bearing (5) in 4th gear

position on mainshaft.

2. Install 4th gear (4) and thrust washer (3).

3. Using RETAINING RING PLIERS (Part No. J-5586-A),

expand and install new retaining ring (2).

4. Install 1st gear (1).

PART NO. SPECIALTY TOOL

J-5586-A Retaining ring pliers

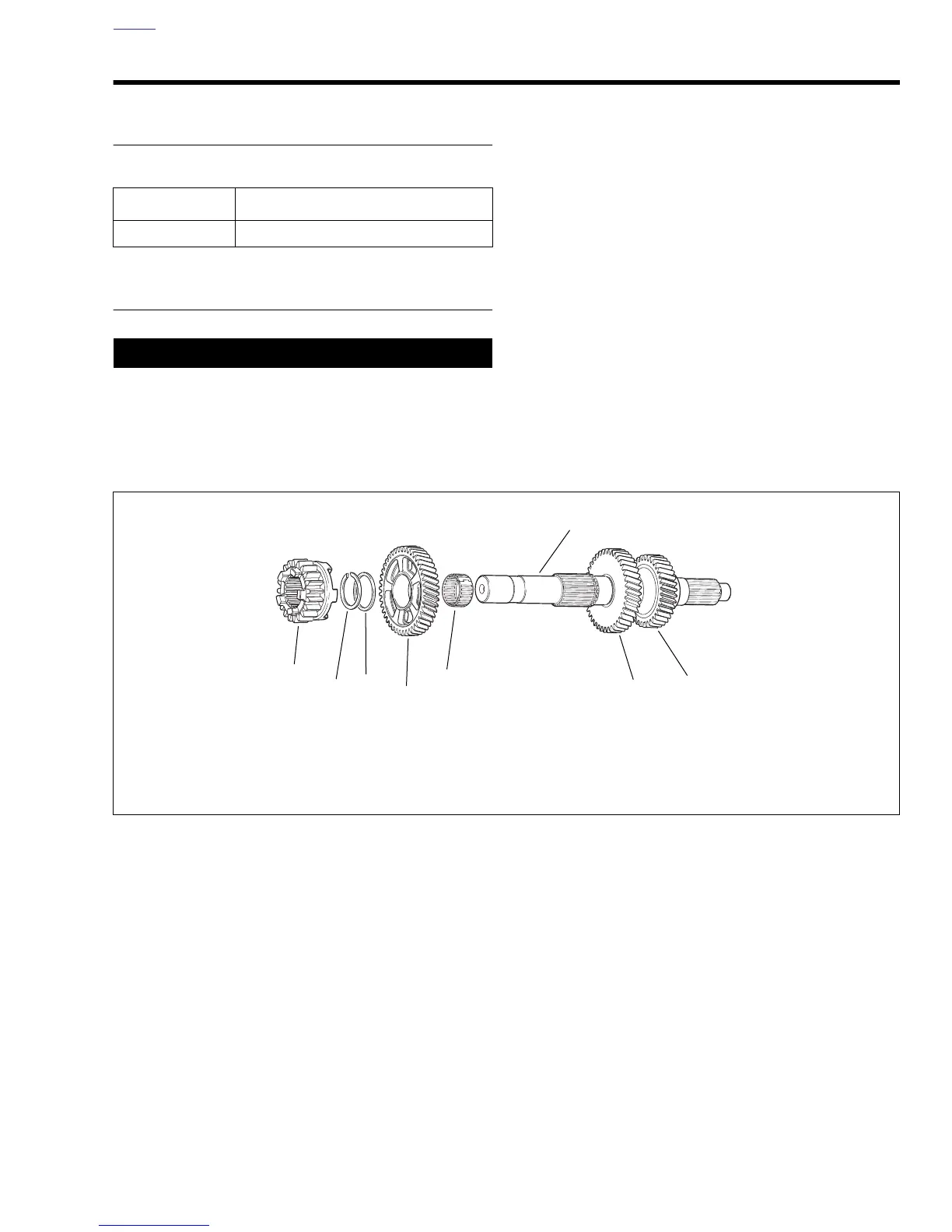

Figure 6-64. Transmission Mainshaft Assembly/Reassembly

x0599a6x

Left Crankcase

1. Mainshaft 1st gear

2. Retaining ring

3. Thrust washer

4. Mainshaft 4th gear

5. Split bearing

6. Mainshaft

7. Mainshaft 3rd gear

8. Mainshaft 2nd gear*

* Mainshaft 2nd and 3rd gears are integral to the shaft.
