2-104 2007 Buell Lightning: Chassis
HOME

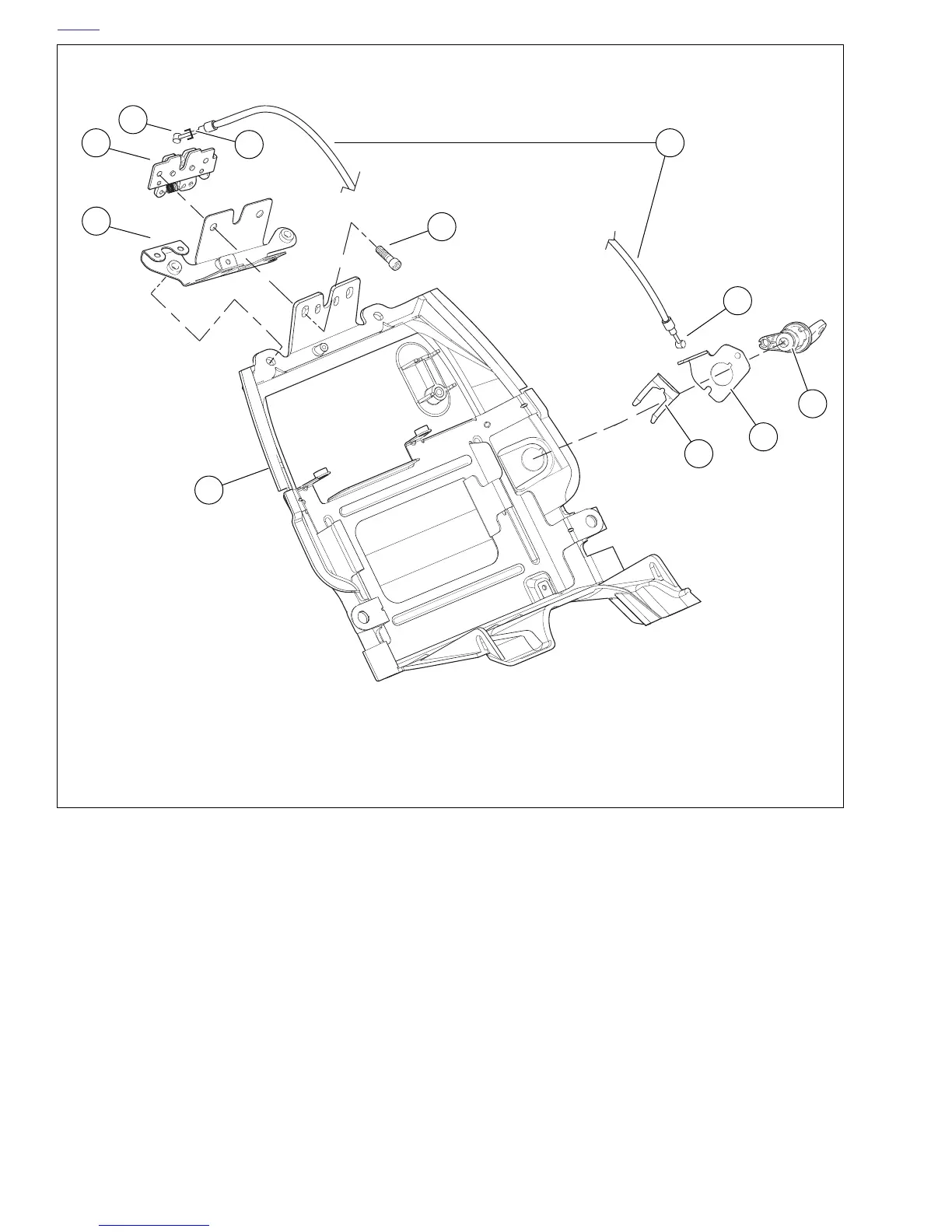

Figure 2-130. Seat Lock Assembly
1. Seat lock
2. Plate
3. Retainer
4. Cable end
5. Cable
6. Latch screw
7. Retainer
8. Cable end
9. Latch
10. Latch bracket
11. Trunk pan
2
4
3
1
5
8
9
6
11
7
10
