2007 Buell Lightning: Engine 3-13
HOME
17. Support engine with wide scissors jack.
18. See Figure 3-5. Remove “V” bracket (2) and fasteners (3)
from main frame.
19. Remove center tie bar (13) from engine .
20. See Figure 3-6. Remove rear tie bar (2) from frame only.
21. Loosen rear isolator bolt (1). DO NOT REMOVE.
22. See Figure 3-7. Remove front isolator bolt (1) .
23. Remove front isolator mount (2) from engine.
24. Rotate engine down.

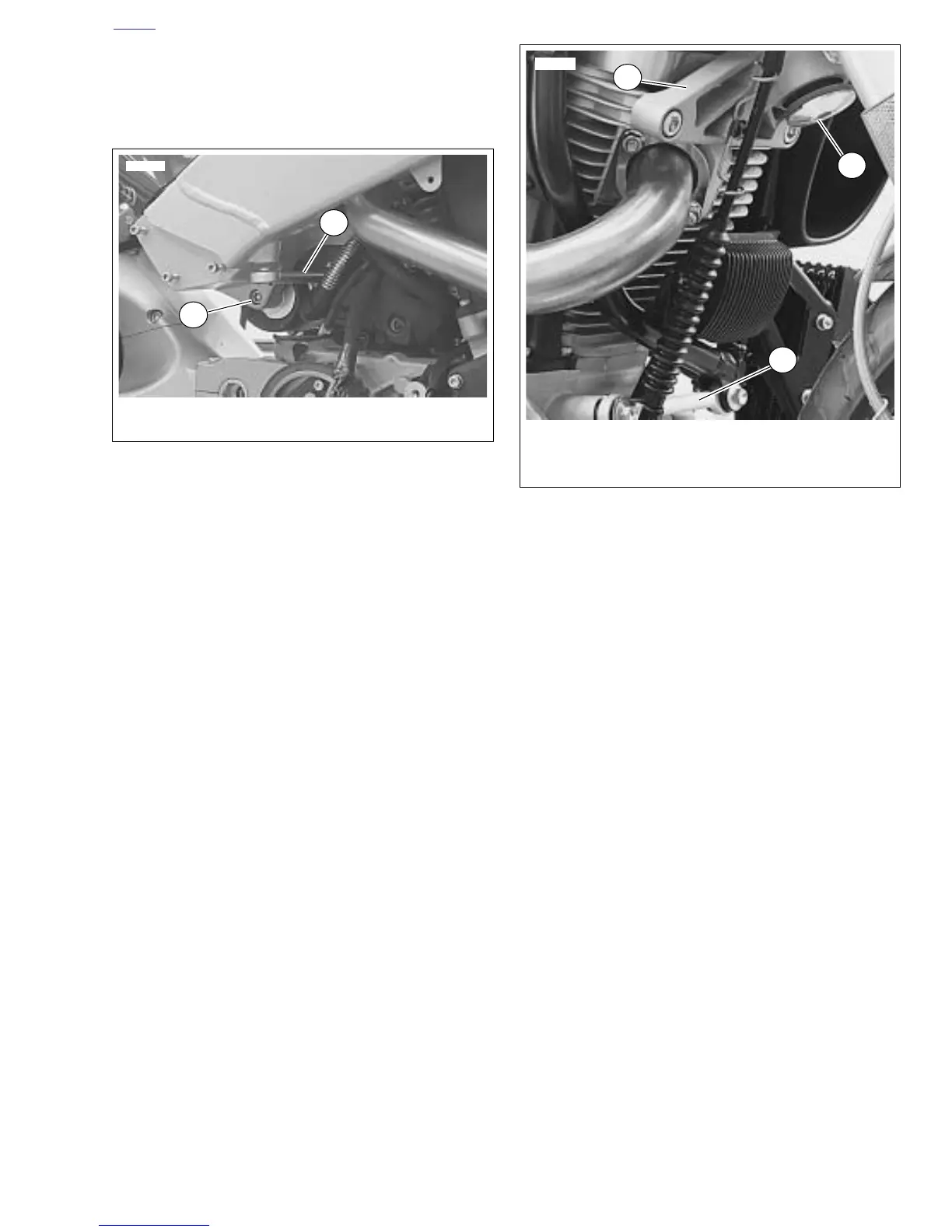

Figure 3-6. Rear Isolator Bolt and Rear Tie Bar (Typical)
1. Rear isolator bolt
2. Rear tie bar
2
1
8735
Figure 3-7. Front Isolator and Tie Bar Assemblies
1. Front isolator bolt
2. Front isolator mount
3. Front tie bar
1
3
2
10502
