2007 Buell Lightning: Engine 3-15
HOME
10. See Figure 3-9. Pull clutch cable back up into the proper
position.
a. Connect clutch cable to handlebars and adjust to
speciļ¬cations. See 1.8 CLUTCH.
b. Install wire form and tighten fastener to 84-92 in-lbs
(9.5-10.4 Nm).

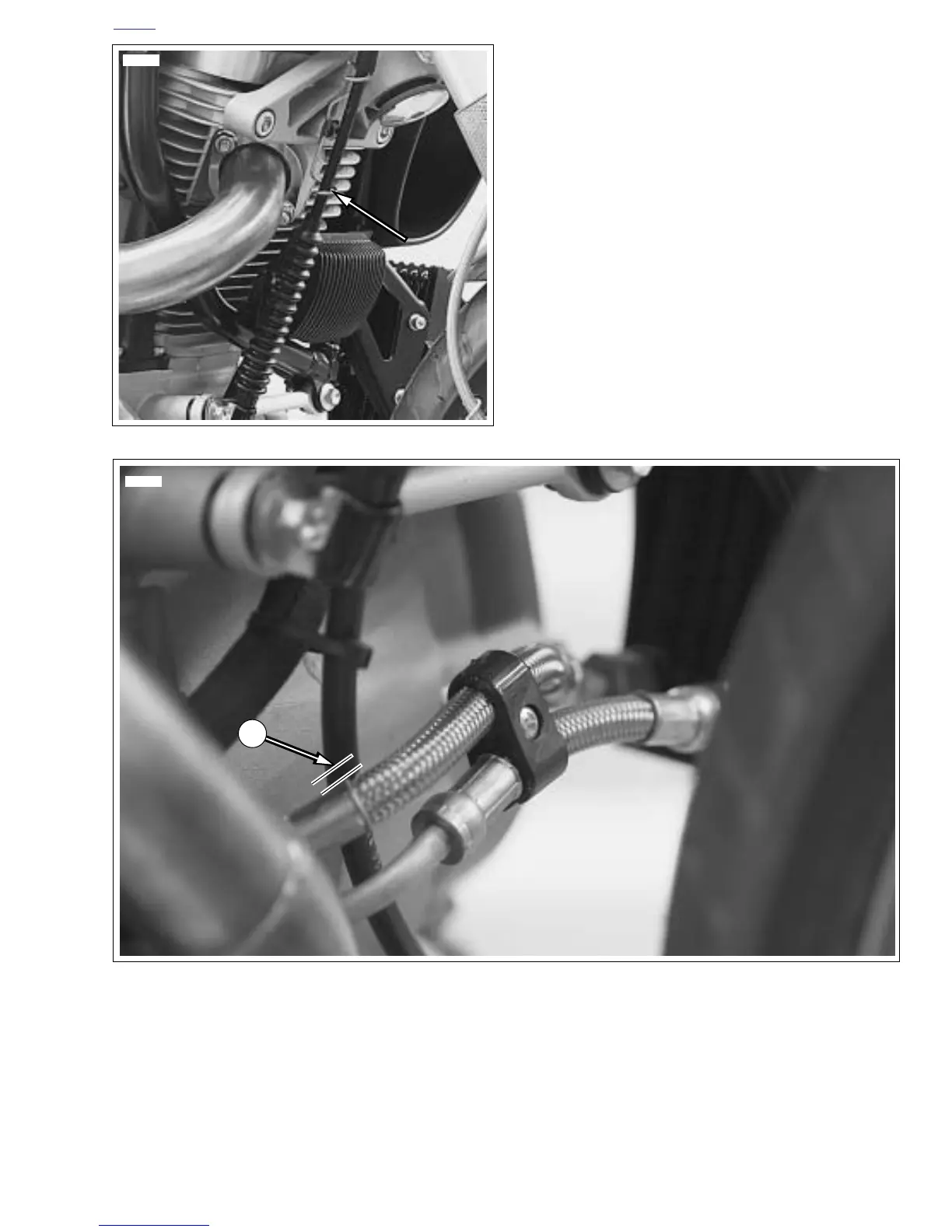

Figure 3-9. Clutch Cable Wire form
10502
Figure 3-10. Oil Cooler Feed and Return Oil Line 1/8-1/4 in. (3.175-6.35 mm) Clearance
10501a
1
