17. See Figure 3-16. Remove oil filter (8).
18. Remove left and right side rider footrests and support
plates. See 2.33 FOOTPEG, HEEL GUARD AND
MOUNT.
NOTE
Remove the right side rider footrest and support plate, and
secure towards rear of vehicle.

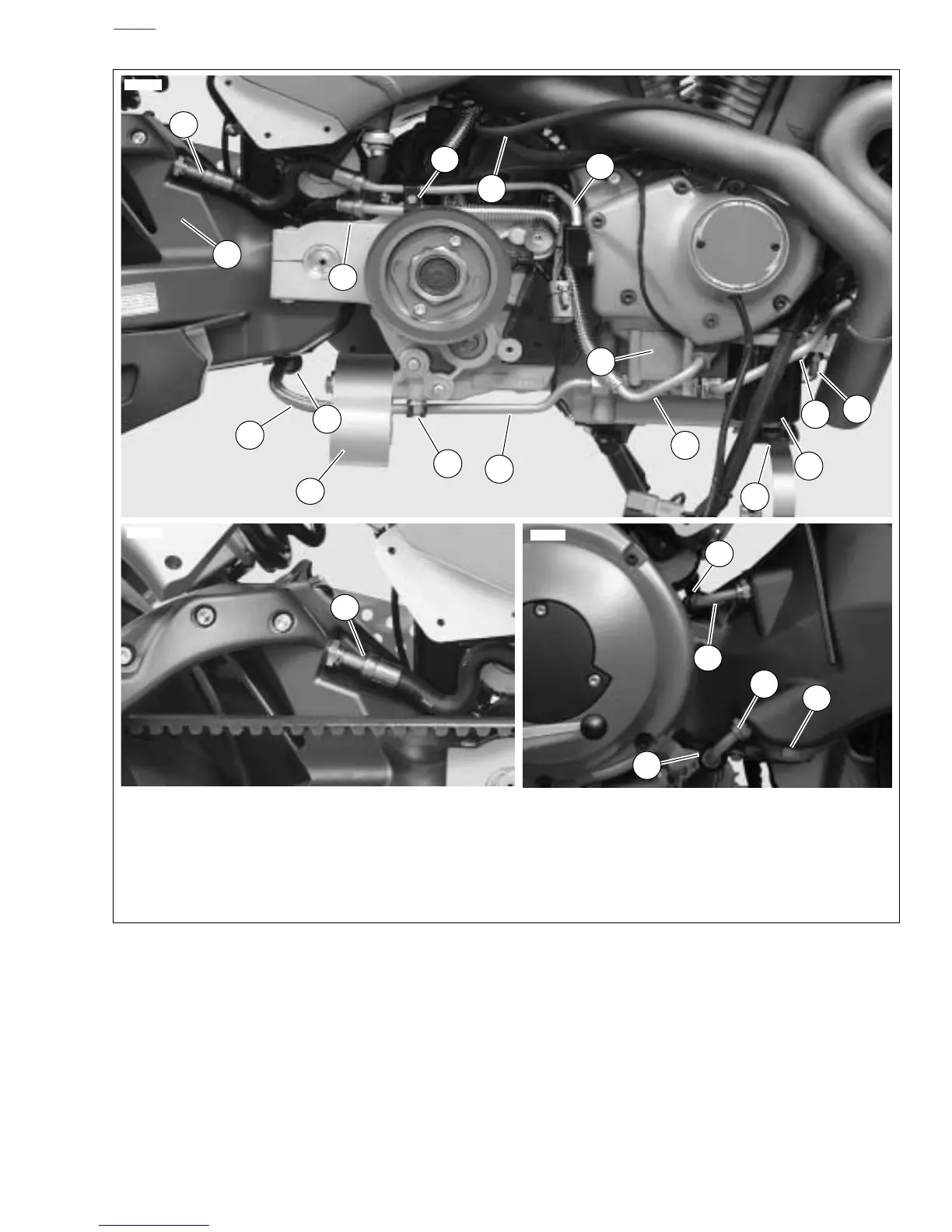

Figure 3-16. Oil Lines and Connections
1. Swingarm/Oil reservoir
2. Vent oil line
3. Feed oil line
4. Return oil line
5. Feed oil line from oil pump to oil cooler
6. Feed oil line from oil cooler to crankcase
7. Oil tank drain plug
8. Oil Filter
9. Front muffler mount
10. Rear muffler bracket
11. Cable, interactive exhaust
12. P-clamp
13. Oil line clamp
14. Oil pump
2
7
5
4
3
4
11964b
11963a
10
1
2
3
3
8
9
6
4
11972
11
12
12
13
12
12
14
2

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
