3-38 2007 Buell Lightning: Engine
HOME
33. See 7.26 SPROCKET COVER WIRING before connect-
ing the following electrical components:
a. Neutral switch [131].
b. Speedometer sensor [65]
c. Cam position sensor [14].
d. Alternator [46].
e. Voltage regulator [77].
f. Positive battery cable at starter.
g. Starter solenoid [128].
h. Oil pressure switch [120].

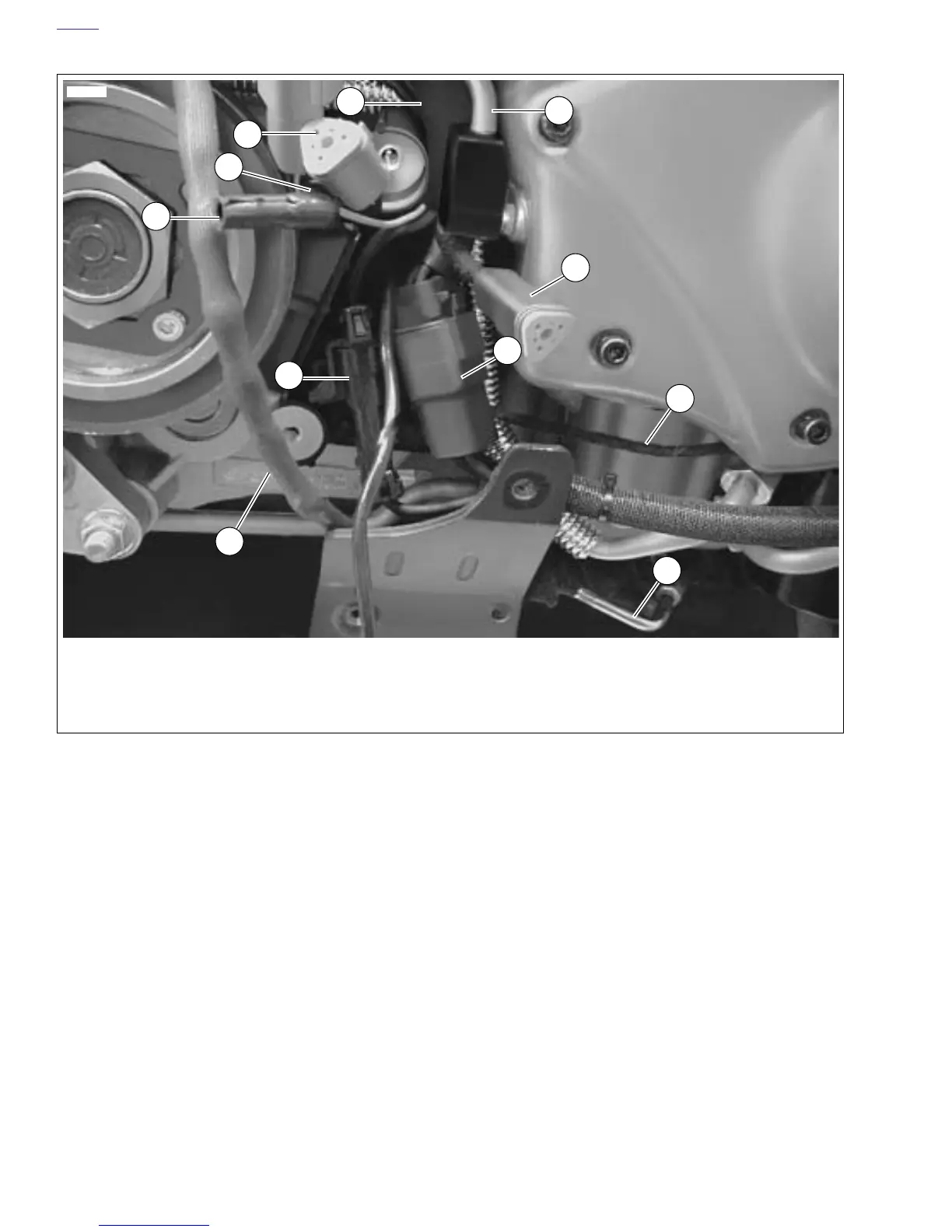

Figure 3-50. Sprocket Cover Wiring and Connections
1. Voltage regulator connector [77]
2. Neutral switch connector [131]
3. Neutral switch location
4. Vehicle speed sensor connector [65]
5. Main harness
6. Gear cover vent line
7. Cam position sensor connector [14]
8. Stator connector [46]
9. Oil pressure switch wiring
10. Interactive exhaust cable
11999ba
5
7
10
1
6
10
9
8
4
3
2
