3-40 2007 Buell Lightning: Engine
HOME

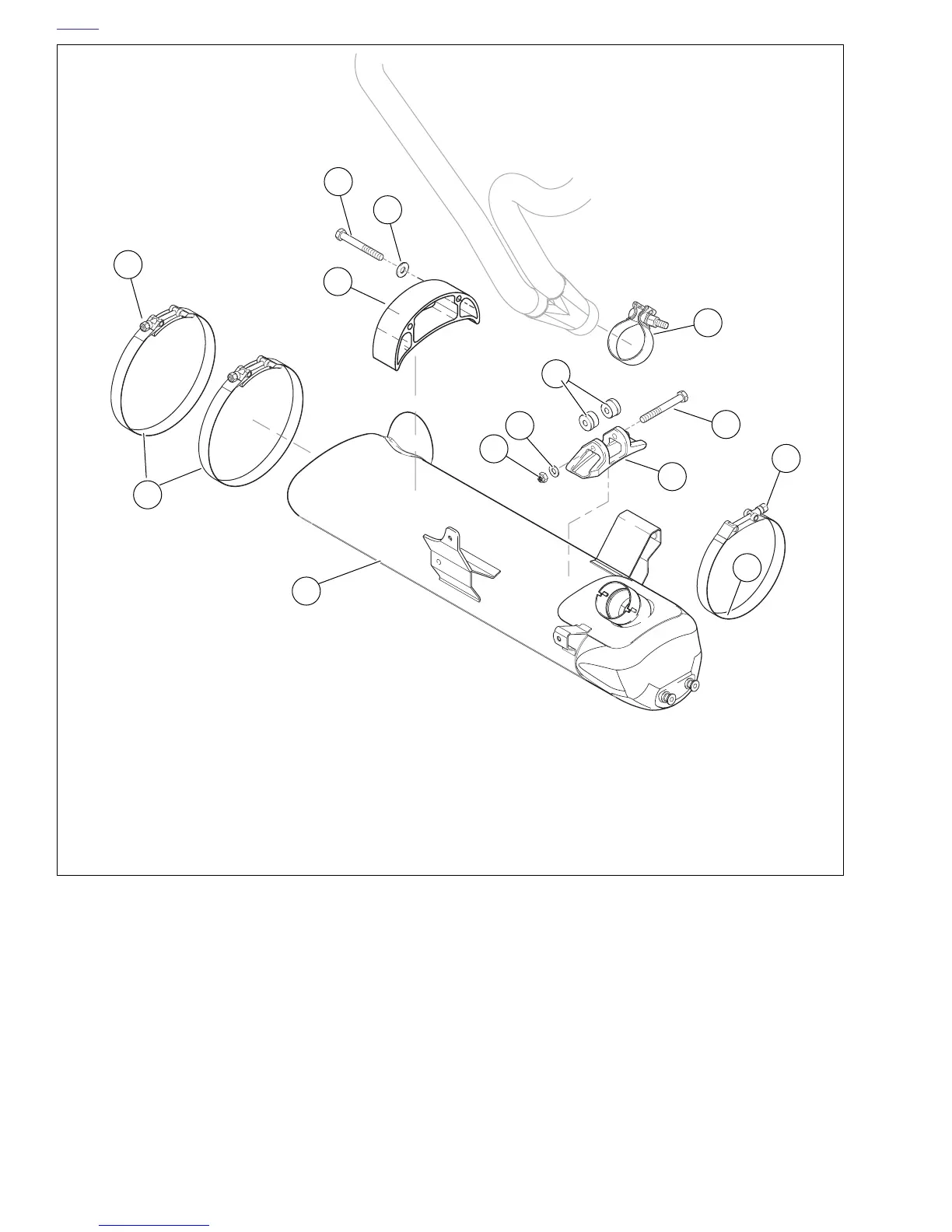

Figure 3-53. Muffler and Mounting System
1. Clamp, Torca
2
. Muffler mount, front
3
. Screw, front muffler mount (1)
4
. Bushings, front muffler mount (2)
5
. Flat washer, front muffler mount (1)
6
. Nut, front muffler mount (1)
7
. Front muffler strap fastener
8. Muffler strap, front
9. Muffler bracket, rear
10. Screw, rear muffler bracket (2)
11. Flat washer, rear muffler bracket (2)
12. Rear muffler strap fastener
13. Muffler strap, rear (2)
14. Muffler
