3-66 2007 Buell Lightning: Engine
HOME
2. See Figure 3-93. Apply engine oil to piston grooves. Use
TRANSMISSION SHAFT RETAINING RING PLIERS
(Part No. J-5586) to slip compression rings over piston
into their respective grooves. Be extremely careful not to
over expand, twist rings or damage piston surface when
installing rings.
NOTE
Install second compression ring with dot towards top.
3. See Figure 3-94. Install rings so end gaps of adjacent
rings are a minimum of 90° apart. Ring gaps are not to
be within 10° of the thrust face centerline.
4. See Figure 3-95. Check for proper side clearance with
thickness gauge, as shown. See 3.1 SPECIFICATIONS.
NOTE
If the ring grooves are clean and the side play is still not cor-
rect, replace the rings, the piston or both.

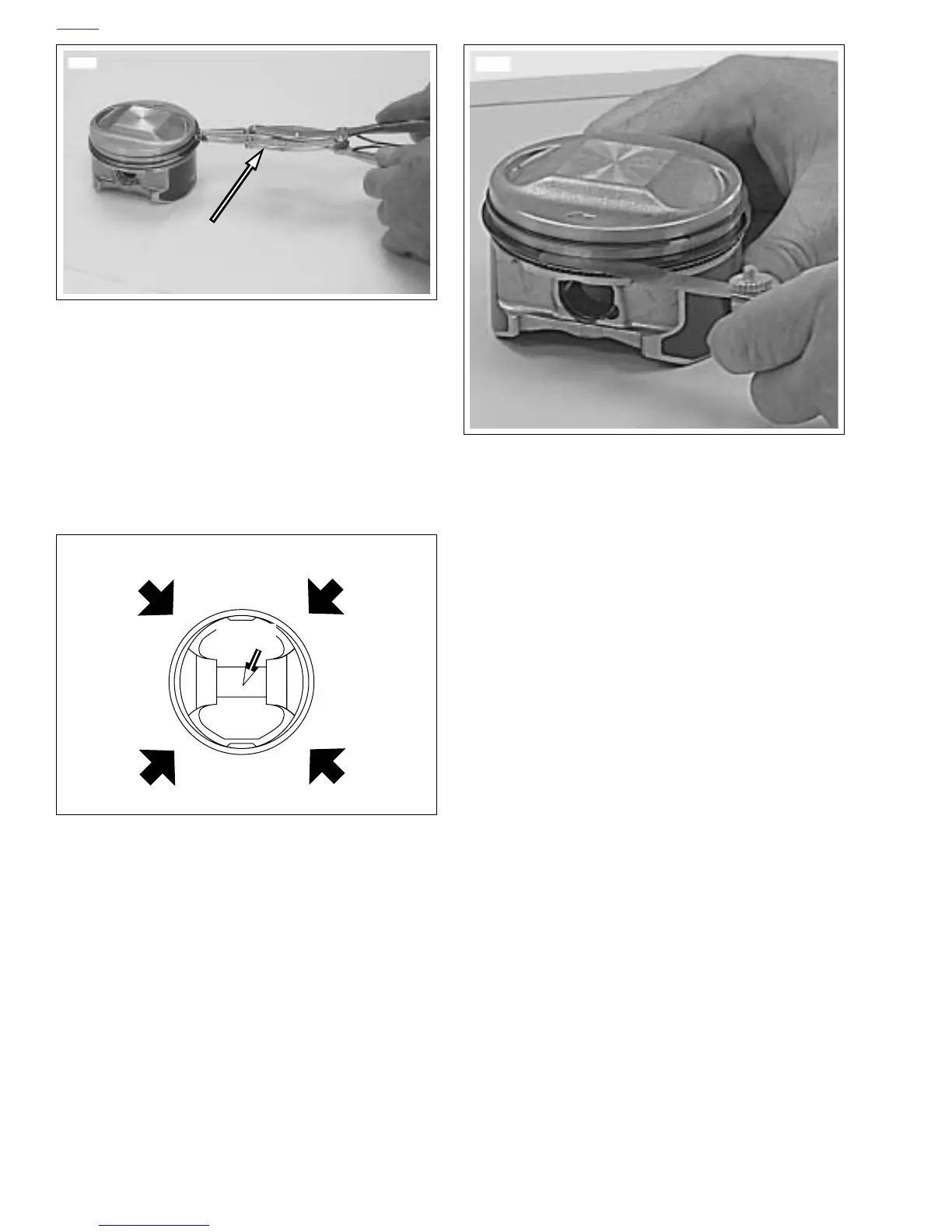

Figure 3-93. Installing Piston Rings Transmission Shaft
Retaining Ring Pliers (Part No. J-5586)
Figure 3-94. Ring End Gap Position
8638
x0486x3x
Piston
Pin
Position ring end gaps at arrows
Front
Rear
Figure 3-95. Measuring Ring Clearance in Groove
10562

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
