3-96 2007 Buell Lightning: Engine
HOME
Flywheel Assembly
1. See Figure 3-136. Remove the flywheel assembly from
left crankcase half.
NOTE
● Flywheel assembly slides out of the sprocket shaft bear-
ing by hand. No tools are required for this operation.
● See Figure 3-137. If it is necessary to remove either the
pinion shaft bearing or sprocket shaft bearing, proceed
as follows:
2. See Figure 3-137. Pinion shaft bearing (12) will remain
on flywheel pinion shaft. Remove retaining ring (13) and
bearing can be slipped off pinion shaft.
Figure 3-136. Removing Flywheels from Left Crankcase
8622

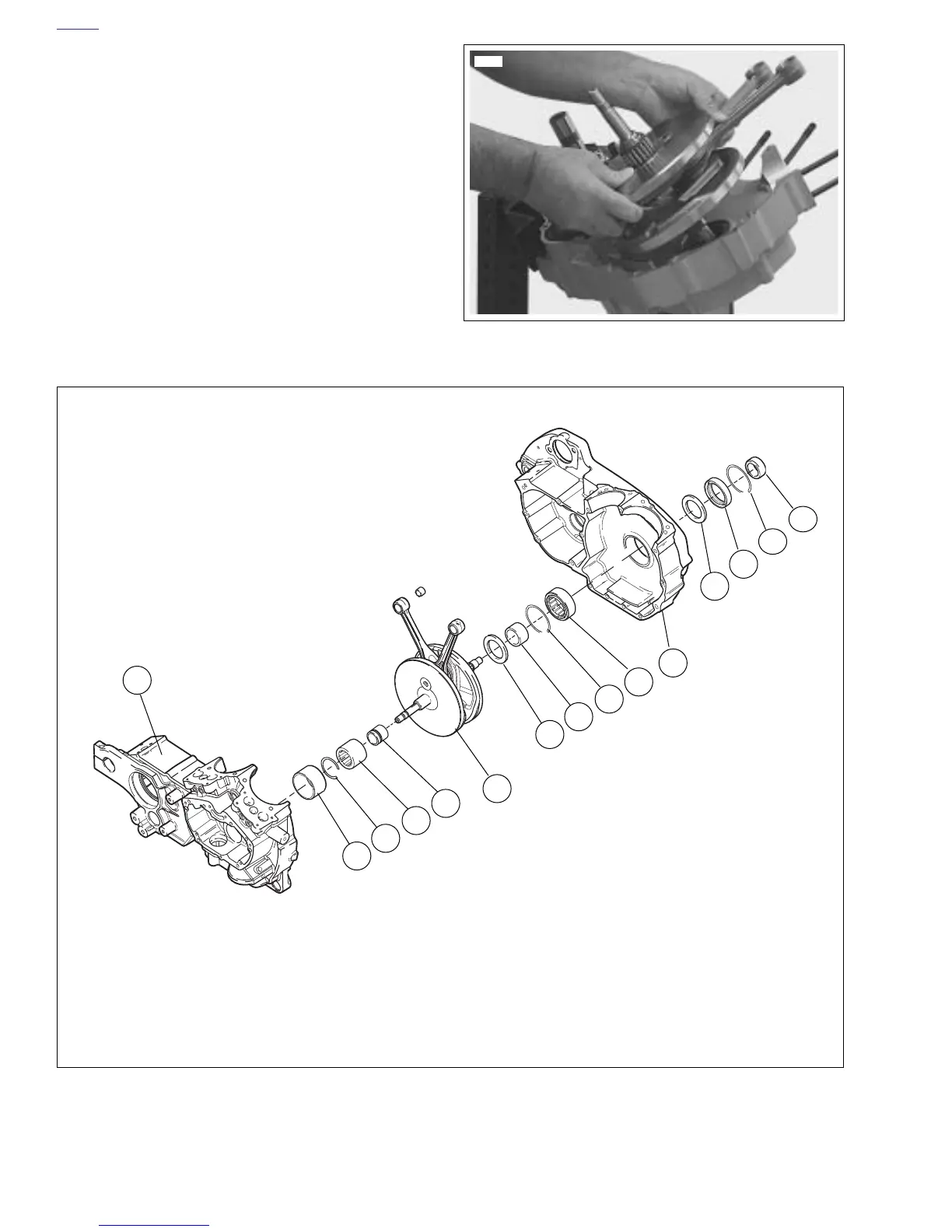

Figure 3-137. Crankcase and Flywheel Assembly
b0975a3x
2
3
4
5
6
7
8
9
10
15
1. Spacer, sprocket shaft
2. Retaining ring, oil seal
3. Oil seal
4. Thrust washer
5. Crankcase half
6. Bearing
7. Bearing retaining ring
8. Inner race, sprocket shaft bearing
9. Thrust washer
10. Connecting rod and flywheel assembly
11. Inner race
12. Gear shaft bearing
13. Retaining ring
14. Outer bearing race
15. Crankshaft case
11
12
13
14
1
