4. See Figure 3-152. Attach left crankcase half to engine
stand.
5. Install flywheel assembly using CRANKSHAFT GUIDE
(Part No. HD-42326).
6. See Figure 3-153. Install pinion shaft bearing.
a. Lubricate pinion shaft bearing with engine oil.
b. Slip bearing on pinion shaft.
c. Install new retaining ring in groove of pinion shaft
bearing inner race.

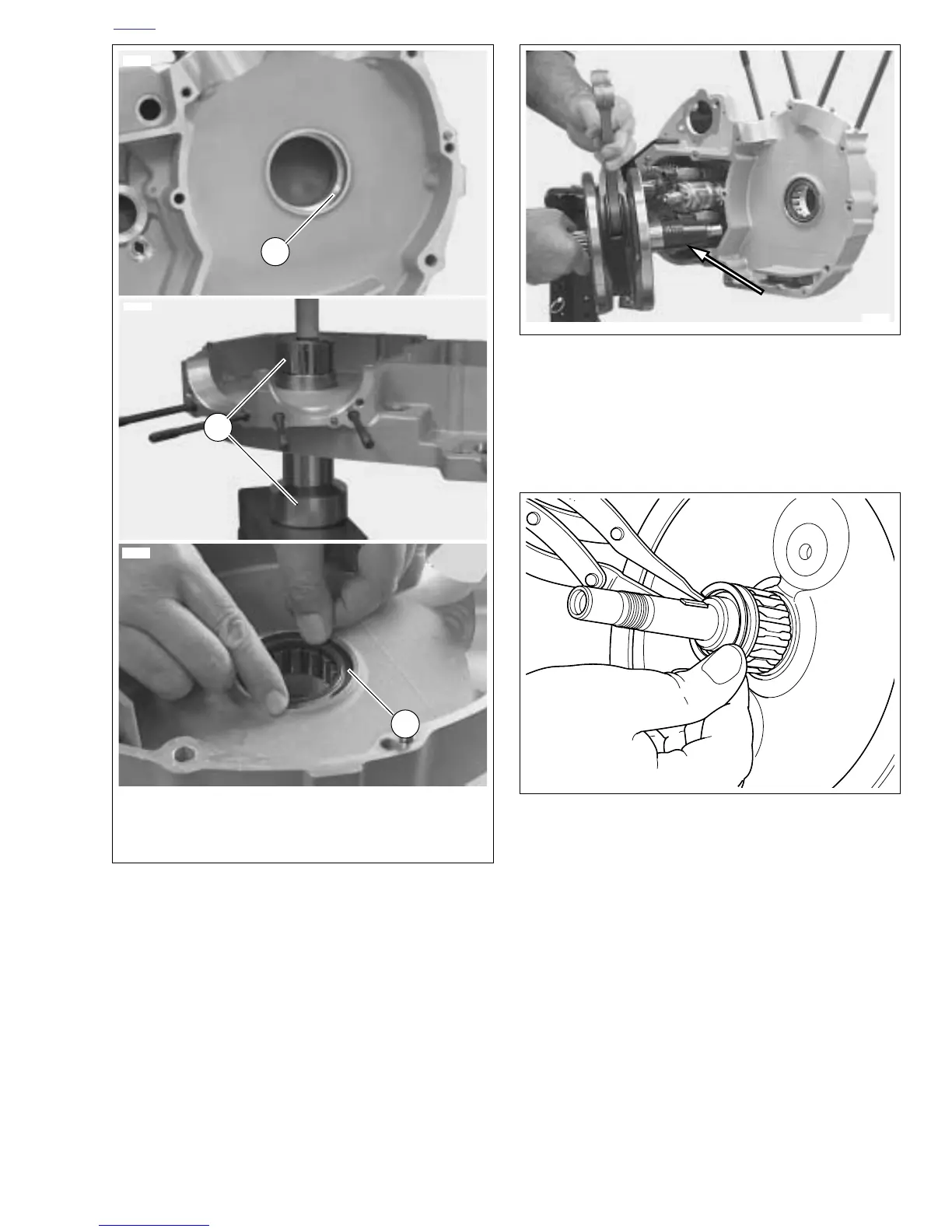

Figure 3-151. Sprocket Shaft Bearing Installation
8789
8792
8762
1
2
3
1. Shoulder for bearing to press against
2. Crankcase bearing remover/installer tool
(Part No. B-45655, HD-42720-2 and HD-46663)
3. Bearing retaining ring
Figure 3-152. Installing Flywheel Assembly with
CRANKSHAFT GUIDE (Part No. HD-42326)
Figure 3-153. Pinion Shaft Bearing
