4-48 2007 Buell Lightning: Fuel System
HOME

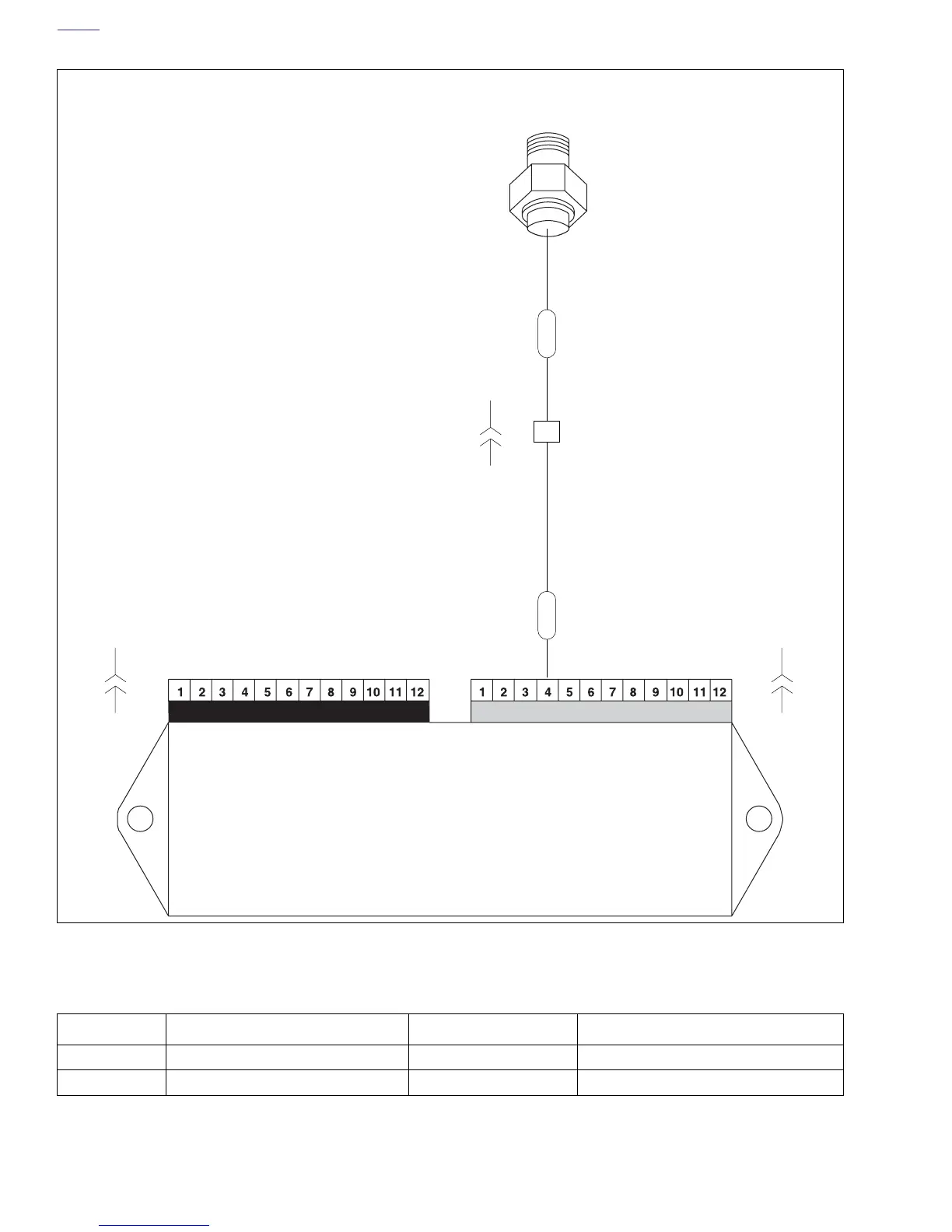

Figure 4-37. Oxygen Sensor Circuit
Oxygen
Sensor
V/GYV/GY
1
[137B]
[137A]
Electronic Control Module
(ECM)
Connector
Connector
[10B]
[10A]
[11B]
[11A]
b1135x4x
Table 4-19. Wire Harness Connectors in Figure 4-37.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch under seat
[137] oxygen sensor 1-place Packard behind rear cylinder head
