Buell 2007 LIGHTNING Service Manual

4-68 2007 Buell Lightning: Fuel System
HOME

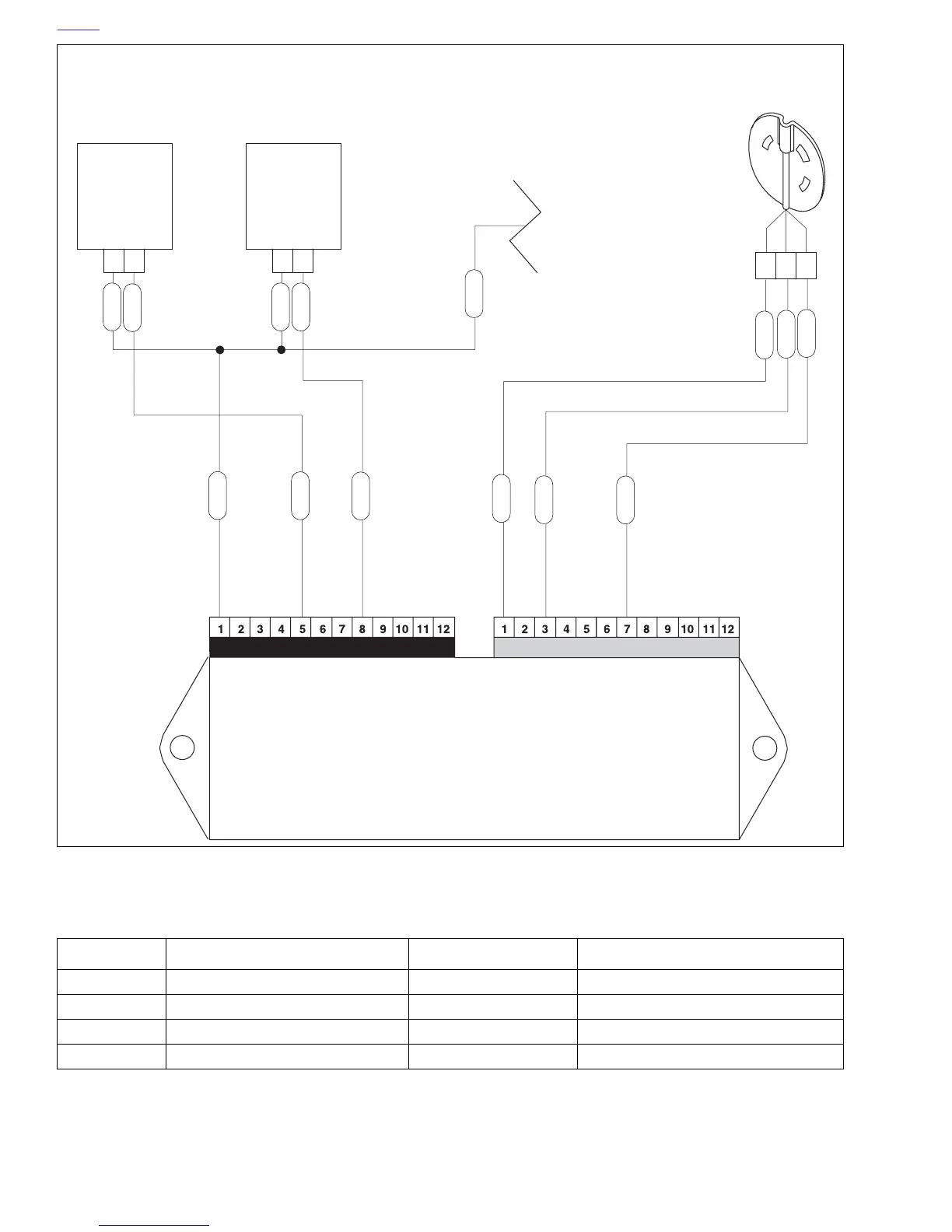

Figure 4-49. Fuel Injector Circuit
AB
AB
AB C
Connector [10]
Connector [11]
b1073x4x
Electronic Control Module
(ECM)
To Ignition
Relay
Front
Injector
[84]
Rear
Injector
[85]
Cam Position
Sensor [14]
GY
W/Y
GN/GY
R/W
GN/W
BK/W
G/Y
W/Y
GY
GN/GY
GY
BK/W
BK/W
BK/W
Table 4-25. Wire Harness Connectors in Figure 4-49.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under seat
[14] cam position sensor 3-place Deutsch beneath sprocket cover
[84] front fuel injector 2-place Packard beneath air cleaner baseplate
[85] rear fuel injector 2-place Packard beneath air cleaner baseplate

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
