4-118 2007 Buell Lightning: Fuel System
HOME

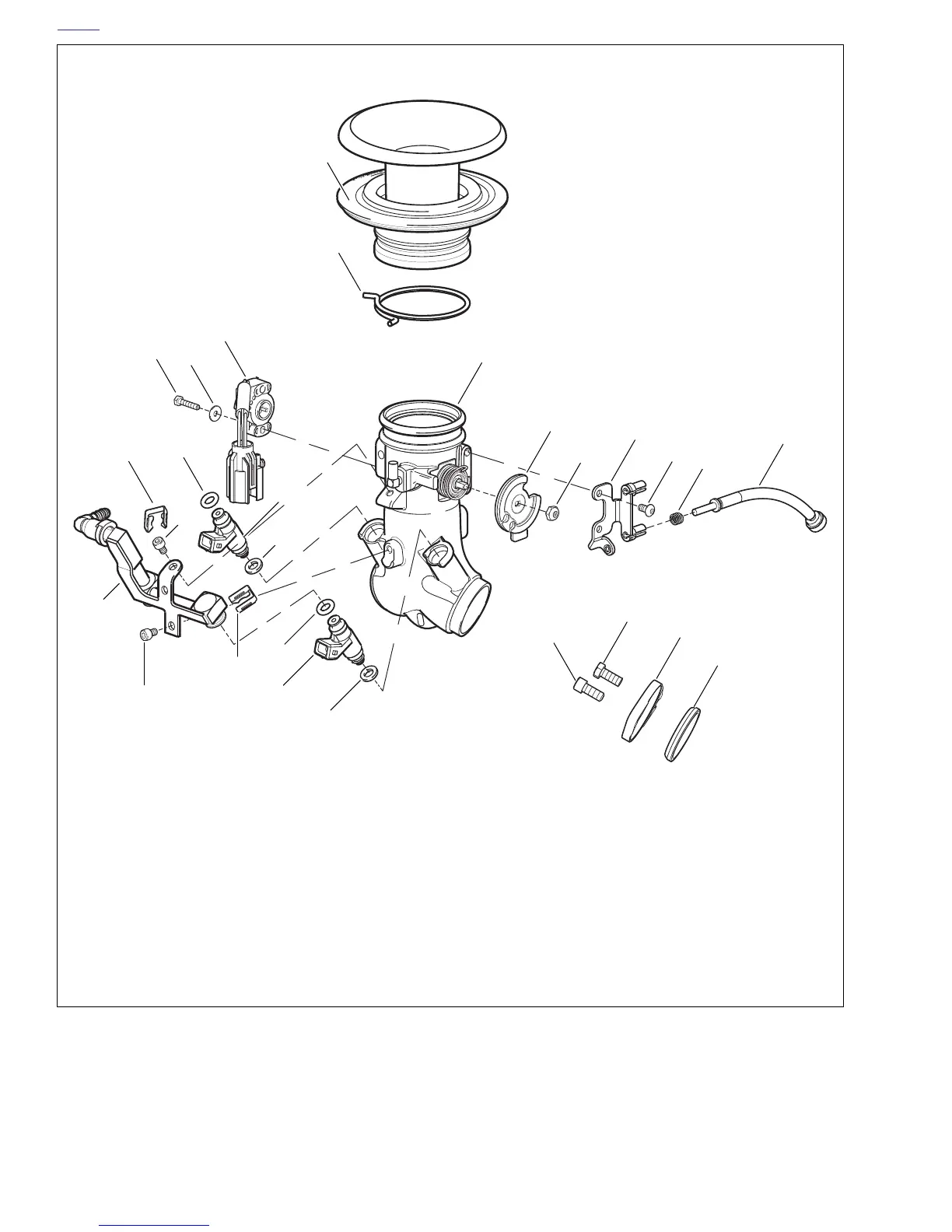

Figure 4-105. One Piece Throttle Body/Intake Manifold Assembly (all models)
1. O-ring, fuel injector, outlet
2. Fuel Injector, front
3. O-ring, fuel injector, inlet
4. Clip, injector (2)
5. Screw (2)
6. Fuel Rail
7. Fuel injector, rear
8. Screw (2
9. Washer, flat (2)
10. Throttle position sensor
11. Clamp, wire spring
12. Velocity stack
13. Throttle body manifold assembly
(45mm-984) (49mm-1203)
14. Throttle lever assembly
15. Nylock
16. Cable Bracket
17. Screw (2)
18. Spring, idle adjuster
19. Idle adjuster
20. Bolt (2)
21. Bolt (2)
22. Mounting flange, intake (1 front, 1 rear)
23. Seal, intake manifold (2)
8
5
2
3
1
4
5
1
7
4
6
9
11
12
13
15
16
17
18
19
21
22
23
14
20
10
3
