4-126 2007 Buell Lightning: Fuel System

HOME

INSTALLATION

1. See Figure 4-120. Hold baseplate above mounting posi-

tion.

2. Insert IAT sensor into grommet on baseplate from under-

side. See 4.36 INTAKE AIR TEMPERATURE SENSOR.

NOTES

● A small amount of soapy water applied to the inside

diameter of grommet will make breather hose installation

easier.

● In next step, be sure breather hoses do not extend past

Intake air temperature sensor tower. If hoses extend past

tower, damage to sensor may occur.

3. Insert longer breather hose into right baseplate grommet

from underside.

4. Attach shorter breather hose onto crankcase breather

located on top of rear cylinder.

5. Carefully lower baseplate into mounting position. Ensure

rubber sealing ring on velocity stack completely engages

baseplate. Baseplate should be sandwiched between

upper and lower rubber sealing rings.

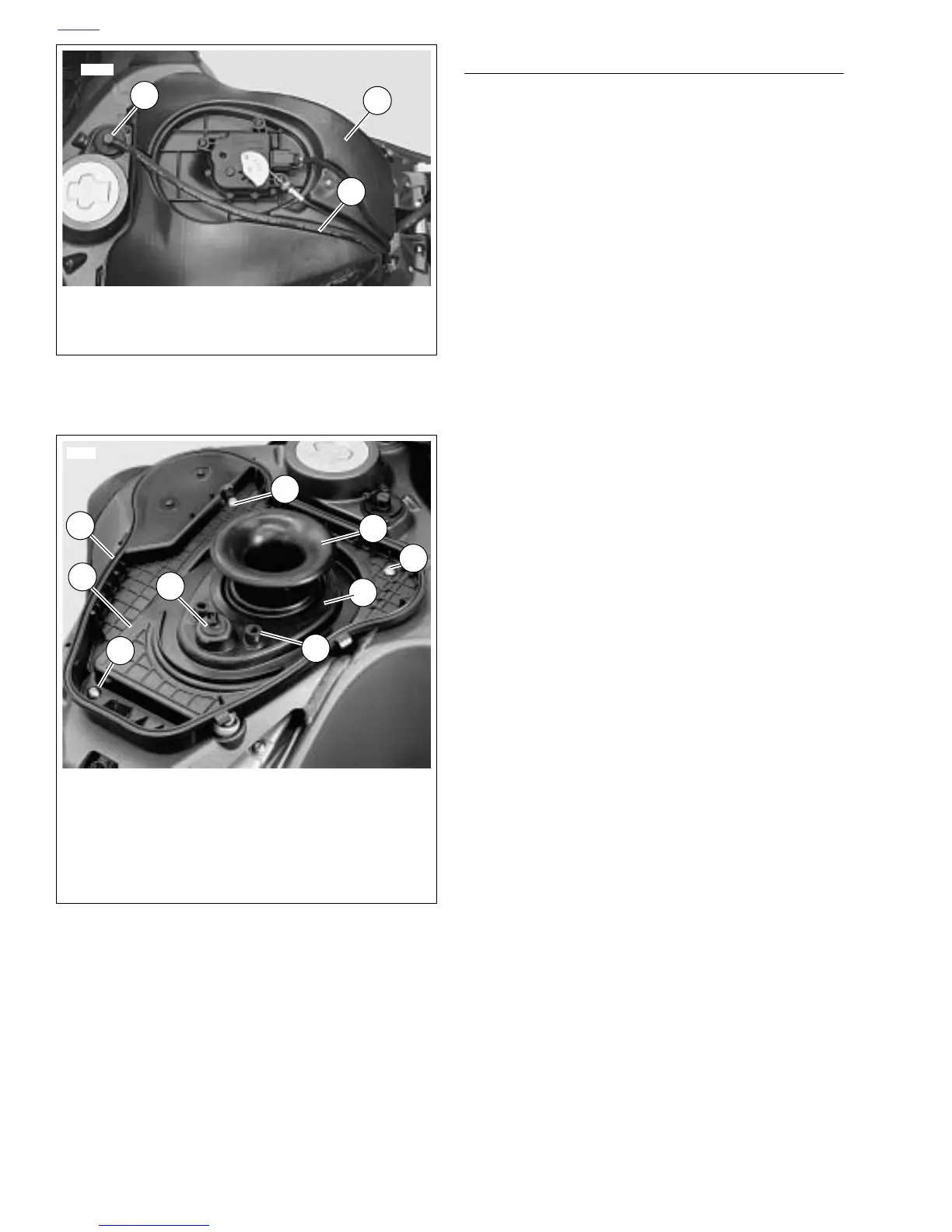

Figure 4-119. Air Cleaner Cover, Fuel Vent Tube and Fuel

Vapor Valve (XB12 solid color models)

Figure 4-120. baseplate (all models)

1. Air cleaner assembly cover

2. Fuel vent tube

3. Fuel cell vent

12049

8373

1. Fasteners

2. Intake air temperature sensor (IAT)

3. Gasket

4. Baseplate

5. Breather hoses

6. Velocity stack

7. Velocity stack sealing ring
