5-18 2007 Buell Lightning: Starter

HOME

12. See Figure 5-21. Check for GROUNDED FIELD COIL

with an ohmmeter or continuity tester.

a. Touch one probe to the frame.

b. Touch the other probe to each of the brushes

attached to the ﬁeld coil.

c. There should be no continuity (inﬁnite ohms). If

there is any continuity at either brush, then the ﬁeld

coil(s) are grounded and the ﬁeld frame must be

replaced.

13. See Figure 5-22. Check for OPEN FIELD COILS with an

ohmmeter or continuity tester.

a. Touch one probe to the ﬁeld wire.

b. Touch the other probe to each of the brushes

attached to the ﬁeld coil(s).

c. There should be continuity (0 ohms). If there is no

continuity at either brush, then the ﬁeld coil(s) are

open and the ﬁeld frame must be replaced.

14. See Figure 5-23. Test BRUSH HOLDER INSULATION

with an ohmmeter or continuity tester.

a. Touch one probe to holder plate.

b. Touch the other probe to each of the positive (insu-

lated) brush holders.

c. There should be no continuity (inﬁnite ohms). If

there is continuity at either brush holder, replace the

brush holder assembly.

15. See Figure 5-24. Remove two drive housing mounting

screws (6). Remove drive housing from solenoid hous-

ing.

16. Remove drive, idler gear, idler gear bearing, and o-ring

from drive housing (o-ring is located in drive housing

groove).

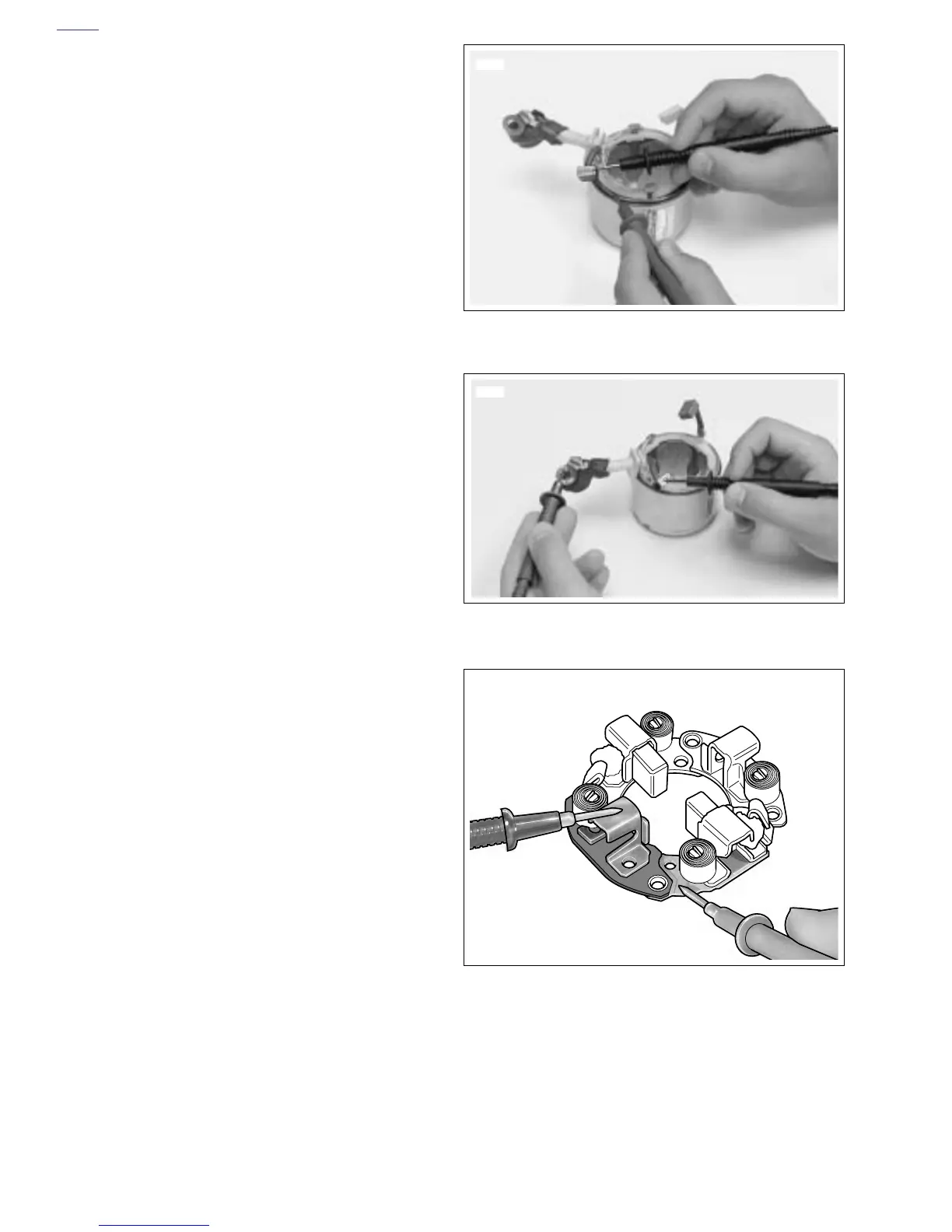

Figure 5-21. Grounded Field Test

Figure 5-22. Open Field Test

Figure 5-23. Brush Holder Insulation Test

6013a

6014a

s0164x5x
