6-4 2007 Buell Lightning: Drive/Transmission
HOME

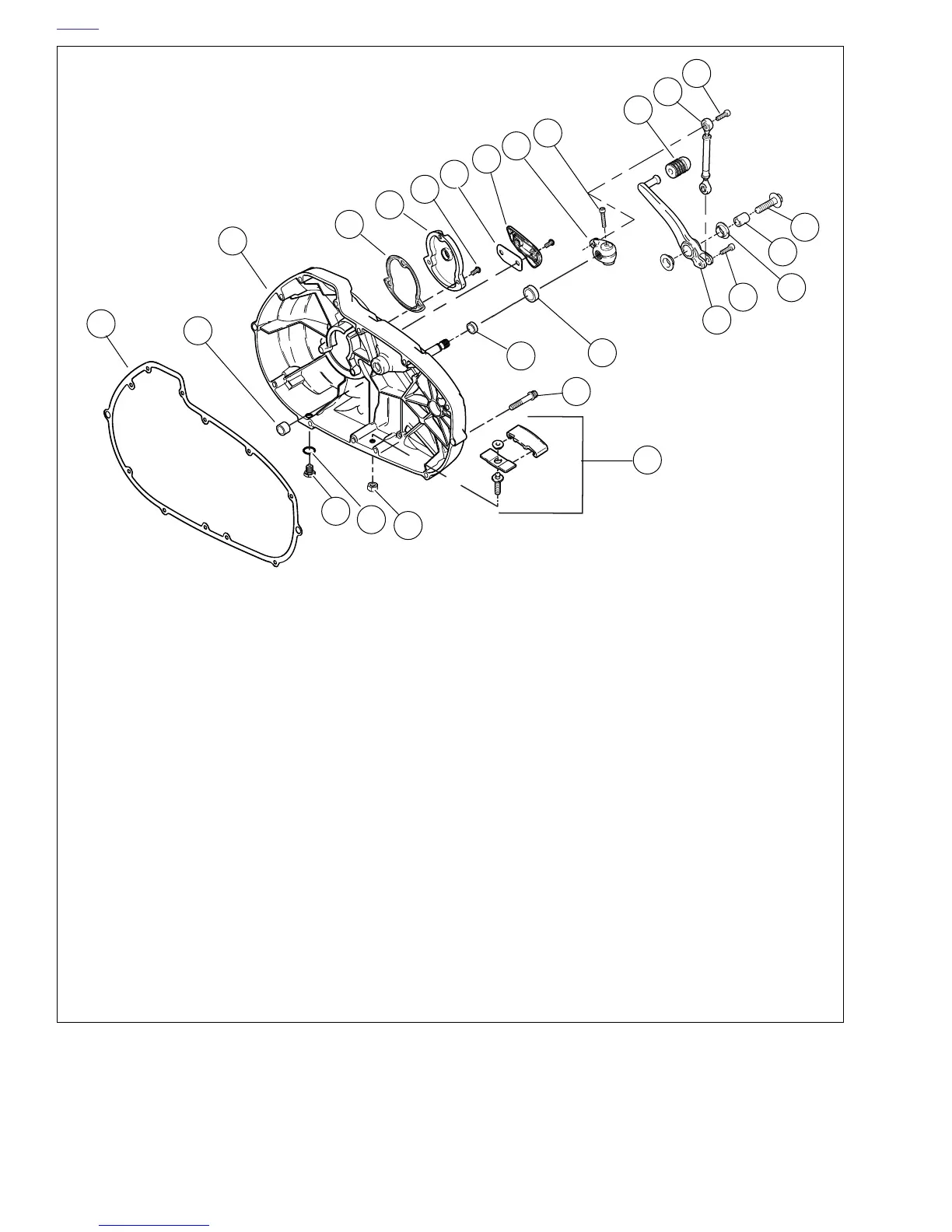

Figure 6-3. Primary Cover, Primary Chain Adjuster and Shifter Assembly
1
9
14
7
8
b1050x6xa
2
10
24
3
22
4
5
6
16
17
15
12
13
11
18
21
19
1. Gasket
2. Shifter bushing
3. Primary cover
4. Gasket
5. Clutch dove
6. Sems Screws (5)
7. Inspection cover gasket
8. Cover, inspection
9. Engine lever
10. Screw
11. Rubber shift lever pad
12. Shifter linkage assembly
13. Bolt
14. Flange bolt
15. Sleeve
16. Pedal bearing
17. Bolt
18. Shifter lever
19. Oil seal
20. Sems screw,
21. Adjuster assembly
22. Chain adjustment nut
23. O-ring
24. Drain plug
25. Rubber washer
20
23
25
