7-20 2007 Buell Lightning: Electrical
HOME

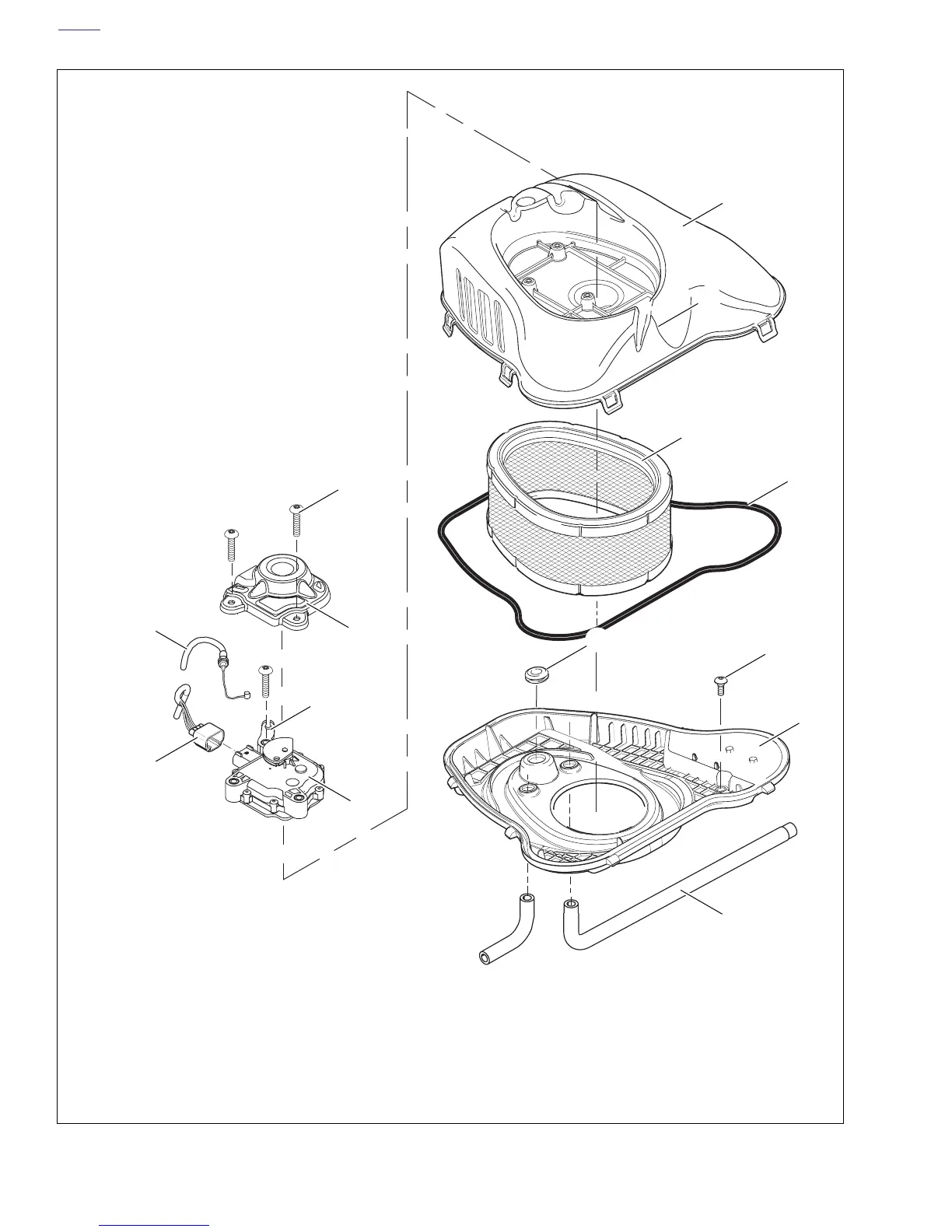

Figure 7-22. Air Cleaner Assembly (XB12 Models) with Interactive Exhaust Components
(XB12 Models with Translucid Intake Covers Only)
1. Screw (XB12 “Translucid” cover) (2)
2. Flat washer (not shown)
3. Actuator, interactive exhaust
4. Harness, interactive exhaust
5. Cable bracket
6. Interactive exhaust cable
7. Cover, air cleaner
8. Filter element
9. Air cleaner cover seal
10. Shoulder screw (4)
11. Base plate assembly
12. Breather hoses, front and rear
13. Grommet
14. Activator cover
3
4
10
9
11
6
8
1
7
12
13
5
14
9
