2007 Buell Lightning: Maintenance 1-49
HOME
ADJUSTMENT
Horizontal Alignment
See Figure 1-59. Loosen fasteners on right and left side of
headlight housing to adjust the horizontal alignment.
Vertical Alignment
See Figure 1-60. Loosen fastener on the bottom of headlight
housing to adjust the vertical alignment.
NOTE
Only loosen headlamp alignment fasteners enough to adjust
headlamp. Once headlights are aligned, tighten fasteners to
48-72 in-lbs (5-8 Nm).

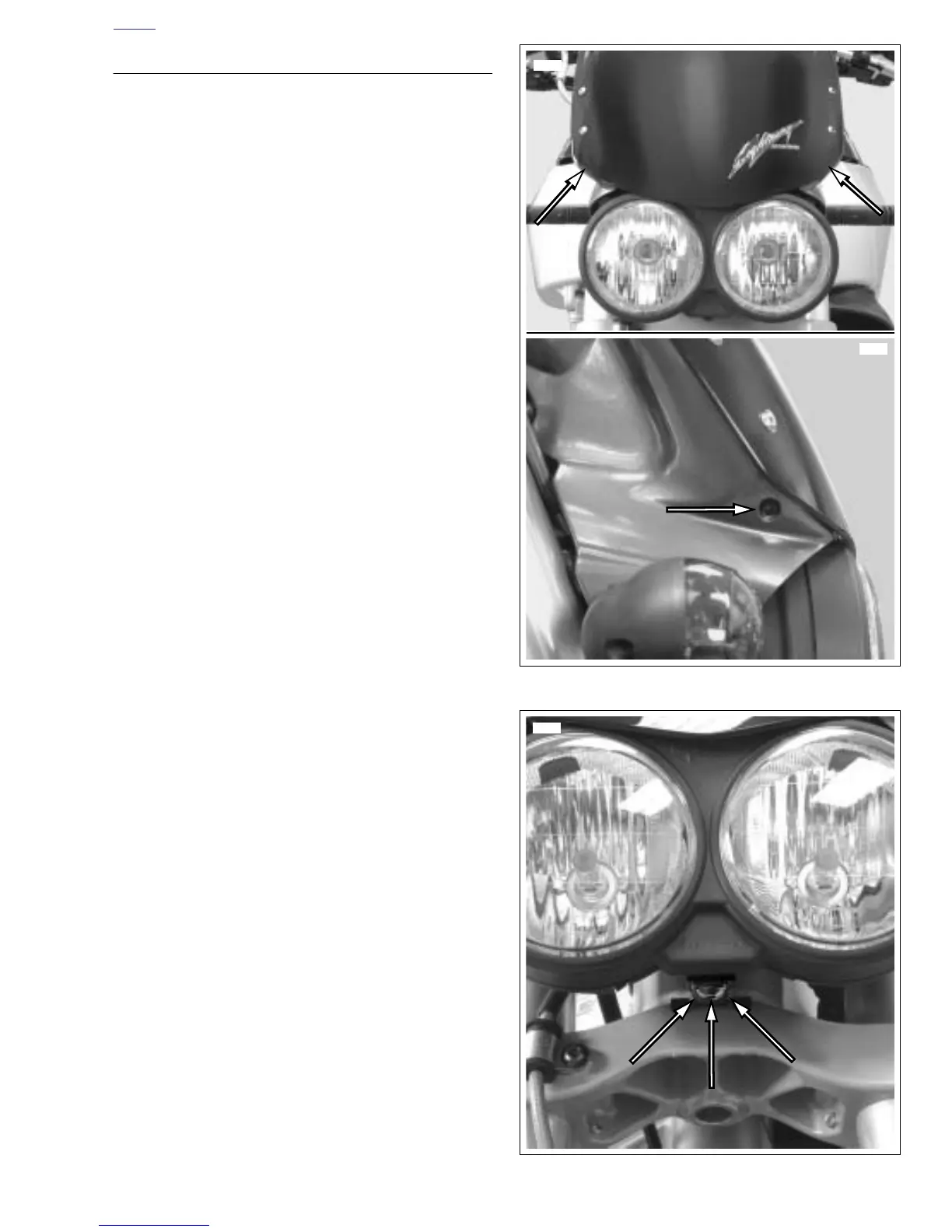

Figure 1-59. Horizontal Headlamp Adjustment
Figure 1-60. Vertical Headlamp Adjustment
