2007 Buell Lightning: Electrical 7-29
HOME
AC Output Check
1. See Figure 7-33. Test AC output.
a. Locate voltage regulator connector [46] under
sprocket cover. See 7.26 SPROCKET COVER WIR-
ING. Disconnect from alternator stator wiring.
b. Connect an AC voltmeter across stator sockets 1-2.
c. Run the engine at 2000 RPM. The AC output should
be 32-40 volts AC. (approximately 16-20 volts per
1000 RPM).
d. Repeat test across stator sockets 2-3 and 1-3.
2. Compare test results to specifications.
a. If the output is below specifications, charging prob-
lem could be a faulty rotor or stator.
b. If output is good, charging problem might be faulty
regulator/rectifier. Replace as required.
3. Check the output again as described under CURRENT
AND VOLTAGE OUTPUT TEST on page 7-28.

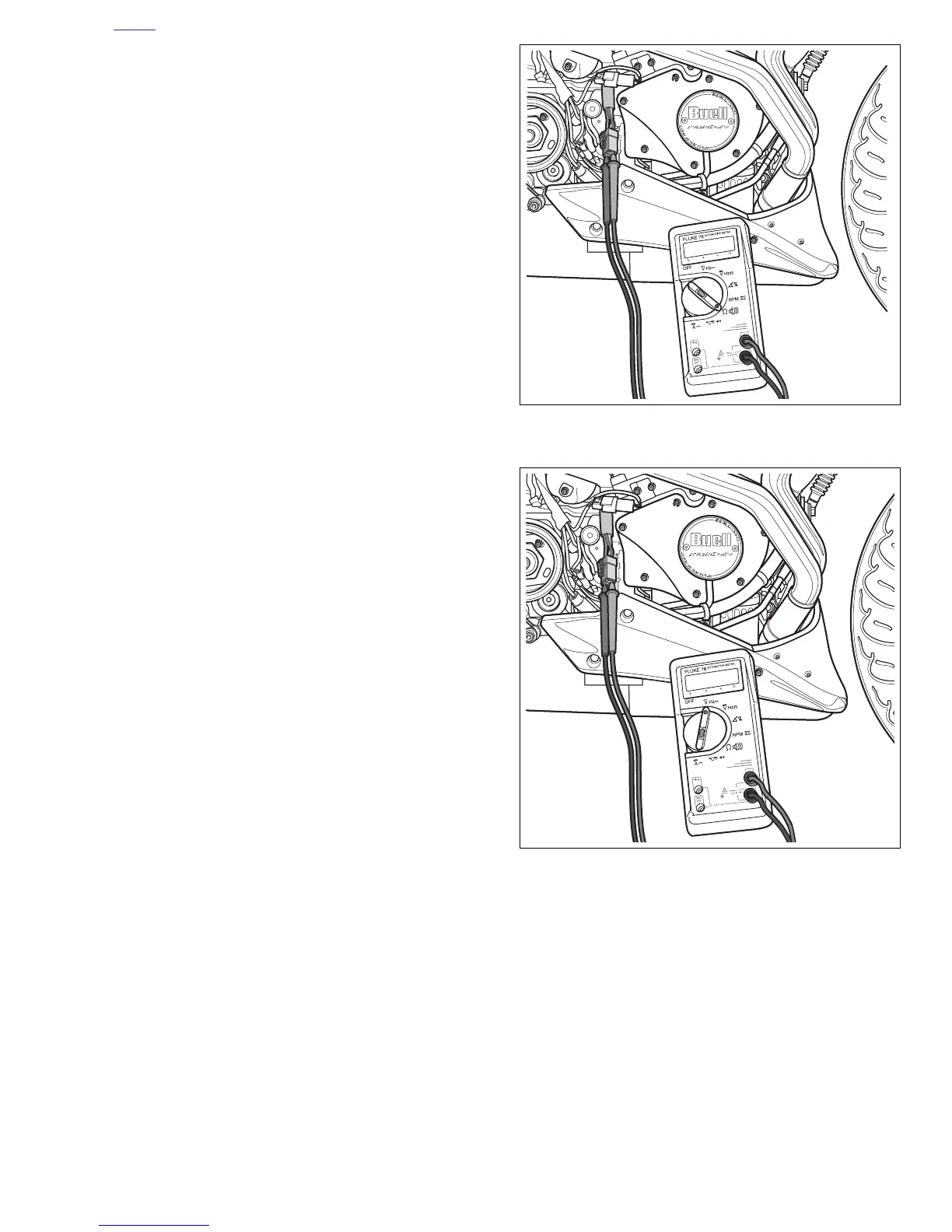

Figure 7-32. Check for Stator Resistance
Figure 7-33. Check Stator AC Voltage Output
b0997x7x
b0998x7x

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
