Buell 2007 LIGHTNING Service Manual

7-54 2007 Buell Lightning: Electrical
HOME
Left Side
1. Install left switch housing.
a. Position housing on left handlebar by engaging
alignment pin on front housing with hole in handle-
bar.
b. Attach switch housing with three mounting fasteners
and tighten to 25-33 in-lbs (3-4 Nm).
2. Connect clutch switch [95].
3. Attach right handlebar switch connector [24] to wire har-
ness.
1WARNING1WARNING
Be sure that all lights and switches operate properly
before operating motorcycle. Low visibility of rider can
result in death or serious injury. (00316a)
4. Check handlebar switch for proper operation. If operation
fails, reread procedure and verify that all steps were per-
formed.
a. Turn ignition key switch to ON.
b. Check headlight LOW and HIGH beam settings.
c. Set headlight to LOW beam. Press passing lamp
switch. Headlight should flash HIGH beam for as
long as the switch is pressed.
d. Check left and right turn signals.
e. Activate horn by pressing horn switch.
5. Install windscreen. See 2.43 WINDSCREEN.

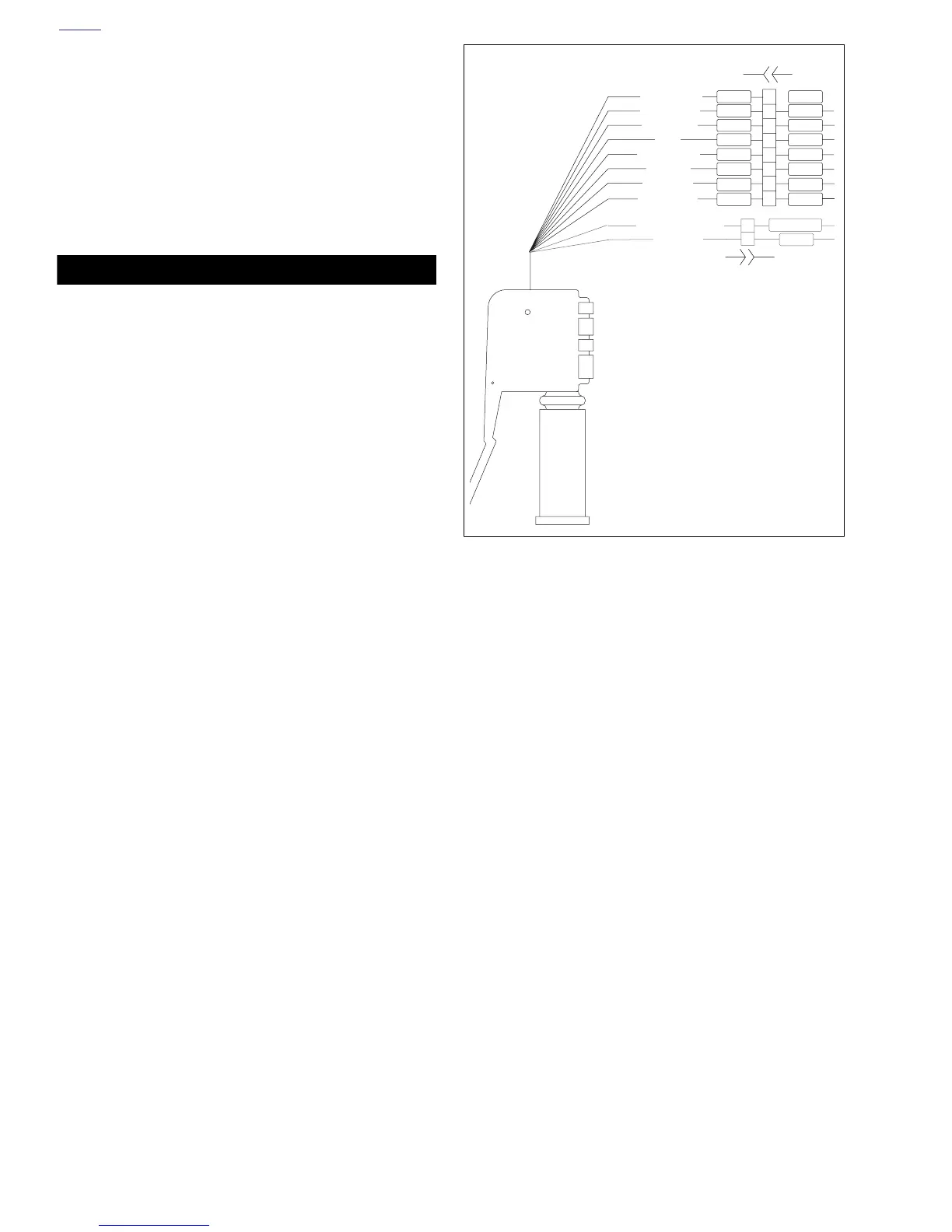

Figure 7-68. Left Handlebar Switch Connection
2
8
7
6
5
4
3
1
2
1
b1103x7x
Clutch Switch
Left Handlebar Switch
Y/BK
To headlamp
BE/W
Y/BK
V/BN
Light power
High beam
Horn
From flasher
Left turn
Right turn
Horn power
To interlock circuit
To ground
Y
W
W
Y
V
O
V
O
BN
BN
BE BE
BK
TN/LTGN
[24B][24A]
[95A][95B]

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
