Buell 2007 LIGHTNING Service Manual

B-2 2007 Buell Lightning: Appendix B
HOME
NOTES
● See Figure B-3. The tang in the chamber engages the
slot to lock the terminal in position.
●
On the pin side of the connector, tangs are positioned at
the bottom of each chamber, so the slot in the pin termi-
nal (on the side opposite the crimp tails) must face down-
ward.
●
On the socket side, tangs are at the top of each chamber,
so the socket terminal slot (on the same side as the
crimp tails) must face upward.
●
Up and down can be determined by the position of the
release button (used to separate the pin and socket
halves). Consider the button to always be on top of the
connector.
2. Gently tug on wire end to verify that the terminal is
locked in place and will not back out of chamber.
3. Rotate the hinged secondary lock inward until tabs fully
engage latches on both sides of connector.
4. Insert the socket housing (plug) into the pin housing
(receptacle) until it snaps in place.
5. Install connector on retaining device, either attachment
or rosebud clip.

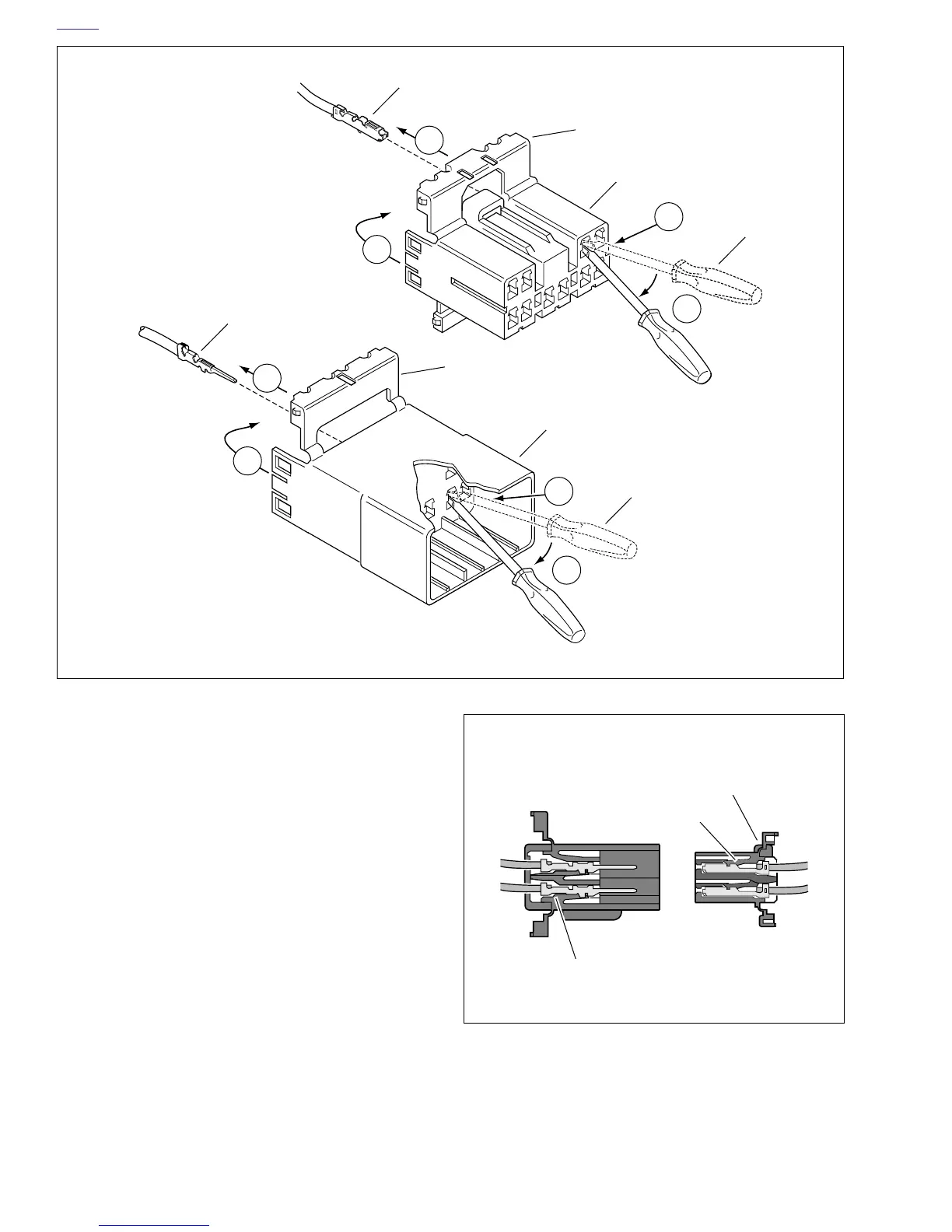

Figure B-2. Release Tang and Back Out Terminals
2
1
3
4
4
1
2
3
Pin terminal
Socket terminal
Secondary lock open
Secondary lock open
Pick tool
Pick tool
Pin housing
Socket housing
1. Open secondary lock.
2. Insert pick into cavity on inboard side
of connector.
3. Pivot end of pick to release tang.
4. Gently tug on wire to remove terminal
from housing.
d0243x8x
Figure B-3. Multilock Connector Cutaway View
Pin housing
Tang
Socket housing
Tang
d0244x8x
Button

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
